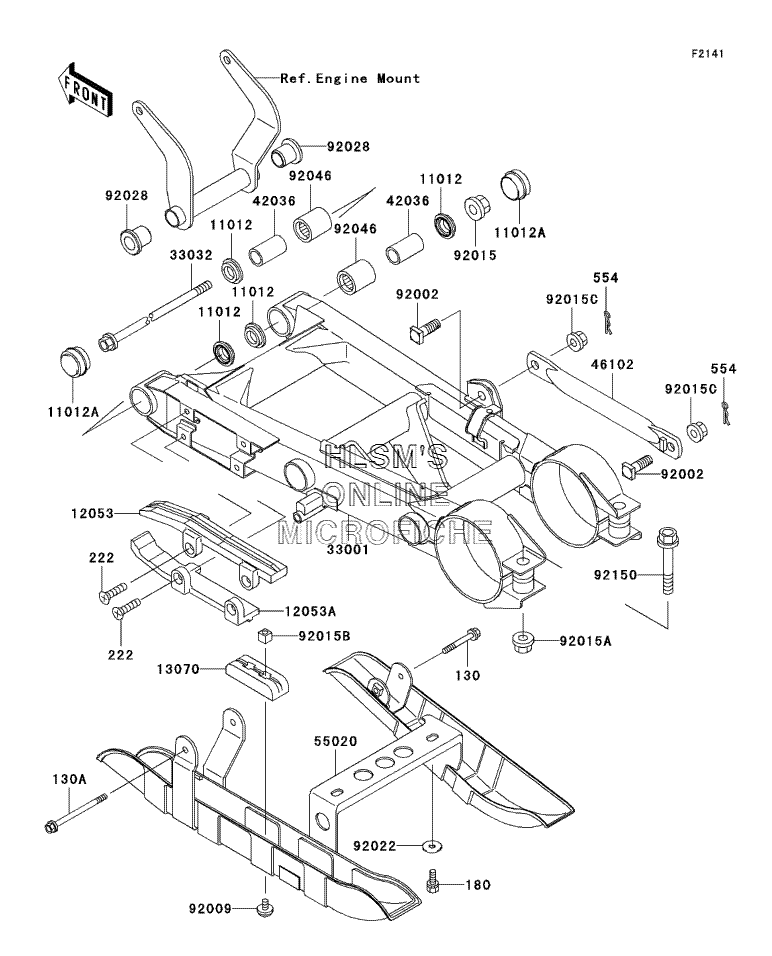

SUSPENSION - SWINGARM для Kawasaki Lakota Sport (KEF300-B2) - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0640 BOLT, FLANGED, 6X40
    BOLT, FLANGED, 6X40
  • 130A
    130G0680 BOLT, FLANGED
    BOLT, FLANGED
  • 180
    180G0614 BOLT, UPSET, WS, 6X14
    BOLT, UPSET, WS, 6X14
  • 222
    222B0612 SCREW, CSK, RD, CROS, 6X12
    SCREW, CSK, RD, CROS, 6X12
  • 554
    554A1000 PIN, SNAP, 10MM
    PIN, SNAP, 10MM
  • 11012
    11012-1259 CAP, SWING ARM
    CAP, SWING ARM
  • 11012A
    11012-1520 CAP, SWING ARM
    CAP, SWING ARM
  • 12053
    12053-1194 GUIDE, CHAIN (UPPER)
    GUIDE, CHAIN (UPPER)
  • 12053A
    12053-1195 GUIDE, CHAIN (LOWER)
    GUIDE, CHAIN (LOWER)
  • 13070
    13070-1156 GUIDE, CHAIN
    GUIDE, CHAIN
  • 33001
    33001-1462-5A ARM, COMP, SWING, SILVER NO.40
    ARM, COMP, SWING, SILVER NO.40
  • 33032
    33032-1139 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 42036
    42036-1064 SLEEVE, SWING ARM
    SLEEVE, SWING ARM
  • 46102
    46102-1342-5A ROD, TORQUE, SILVER NO.40
    ROD, TORQUE, SILVER NO.40
  • 55020
    55020-1583-5A GUARD, CHAIN AND DICS, SILVER
    GUARD, CHAIN AND DICS, SILVER
  • 92002
    92002-1733 BOLT, 10X28
    BOLT, 10X28
  • 92009
    92009-1286 SCREW, 6X10, WHITE
    SCREW, 6X10, WHITE
  • 92015
    92015-1407 NUT, 14MM
    NUT, 14MM
  • 92015A
    92015-1426 NUT, 12MM
    NUT, 12MM
  • 92015B
    92015-1452 NUT, 6MM
    NUT, 6MM
  • 92015C
    92015-1597 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
  • 92022
    92022-1804 WASHER, 6.5X20X1.6
    WASHER, 6.5X20X1.6
  • 92028
    92028-1261 BUSHING, SWING ARM
    BUSHING, SWING ARM
  • 92046
    92046-1128 BEARING, NEEDLE, TA2030Z
    BEARING, NEEDLE, TA2030Z
  • 92150
    92150-1842 BOLT, FLANGED, 12X62
    BOLT, FLANGED, 12X62
