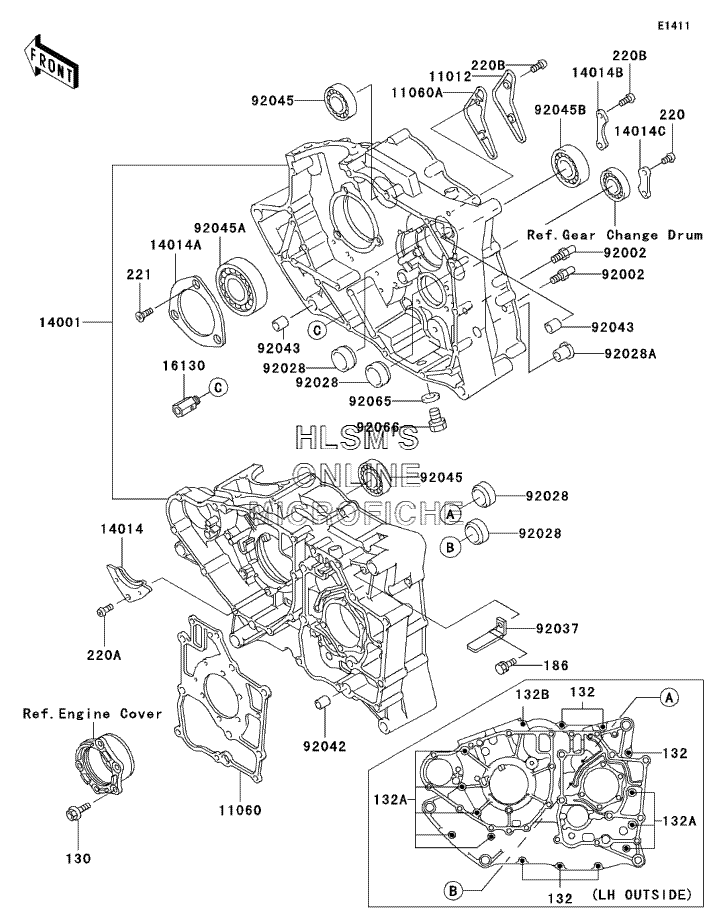

CRANKCASE для Kawasaki Lakota Sport (KEF300-B2) - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130P0620 BOLT, FLANGED, 6X20
    BOLT, FLANGED, 6X20
  • 132
    132Y0635 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132Y0665 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132B
    132Y0685 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 186
    186D0614 BOLT, UPSET, WP
    BOLT, UPSET, WP
  • 220
    220B0610 SCREW, PAN, CROS, 6X10
    SCREW, PAN, CROS, 6X10
  • 220A
    220B0612 SCREW, PAN, CROS, 6X12
    SCREW, PAN, CROS, 6X12
  • 220B
    220B0614 SCREW, PAN, CROS, 6X14
    SCREW, PAN, CROS, 6X14
  • 221
    221B0616 SCREW, CSK, CROS, 6X16
    SCREW, CSK, CROS, 6X16
  • 11012
    11012-1443 CAP
    CAP
  • 11060
    11060-1653 GASKET, GEAR CASE
    GASKET, GEAR CASE
  • 11060A
    11060-1654 GASKET, OIL LINE CAP
    GASKET, OIL LINE CAP
  • 14001
    14001-5324 SET, CRANKCASE
    SET, CRANKCASE
  • 14014
    14014-035 PLATE, POSITION, CAM CHAIN
    PLATE, POSITION, CAM CHAIN
  • 14014A
    14014-1004 PLATE, POSITION, CRANK BEARING
    PLATE, POSITION, CRANK BEARING
  • 14014B
    14014-1069 PLATE, POSITION
    PLATE, POSITION
  • 14014C
    14014-1070 PLATE, POSITION, CHANGE DRUM
    PLATE, POSITION, CHANGE DRUM
  • 16130
    16130-1001 VALVE, ASSY, RELIEF
    VALVE, ASSY, RELIEF
  • 92002
    92002-1408 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
  • 92028
    92028-132 BUSHING, 23X30X13
    BUSHING, 23X30X13
  • 92028A
    92028-1386 BUSHING
    BUSHING
  • 92037
    92037-1316 CLAMP, HARNESS
    CLAMP, HARNESS
  • 92042
    92042-031 PIN, DOWEL, 12X14
    PIN, DOWEL, 12X14
  • 92043
    92043-1279 PIN, 11.5X14X14
    PIN, 11.5X14X14
  • 92045
    92045-1118 BEARING, BALL, 6004TMB
    BEARING, BALL, 6004TMB
  • 92045A
    92045-1172 BEARING, BALL
    BEARING, BALL
  • 92045B
    92045-1173 BEARING, BALL
    BEARING, BALL
  • 92065
    92065-097 GASKET, 12X22X2, DRAIN PLUG
    GASKET, 12X22X2, DRAIN PLUG
  • 92066
    92066-1174 PLUG, OIL DRAIN, 12X15
    PLUG, OIL DRAIN, 12X15
