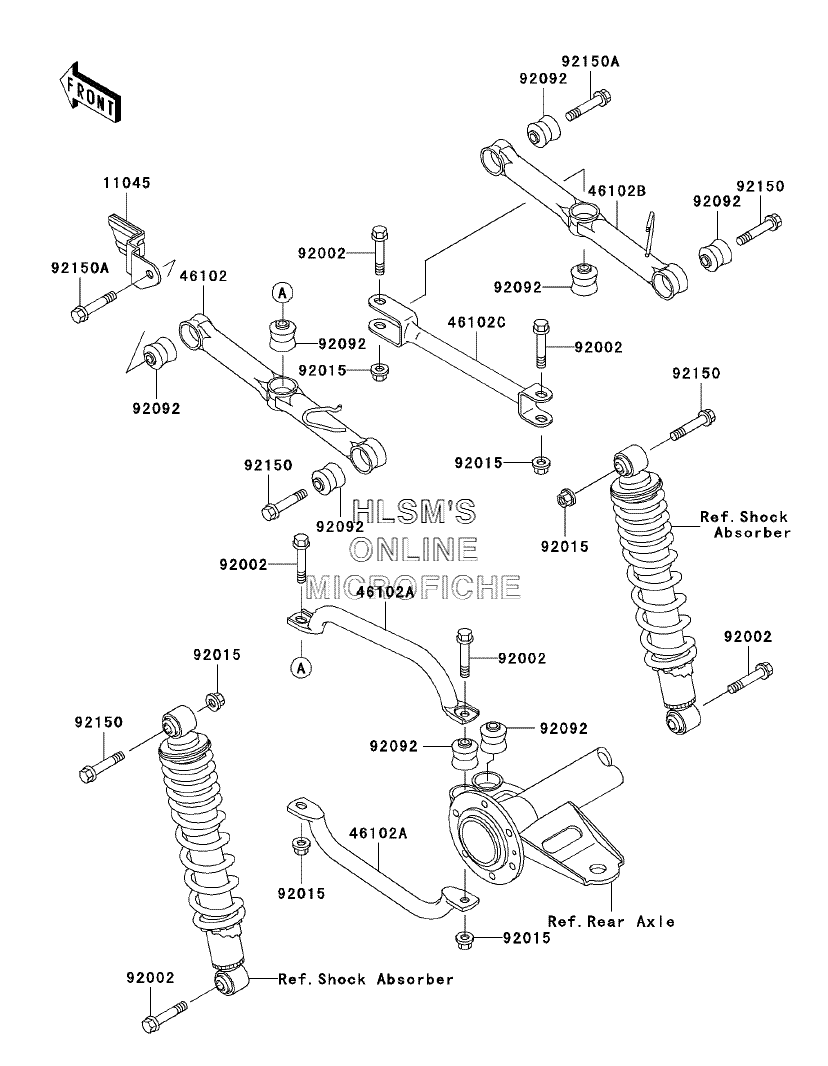

SUSPENSION - REAR для Kawasaki Bayou 300 (KLF300-B15) - 2002 года выпуска
-
№АртикулНазвание
-
1104511045-1946 BRACKET, FLAP GUARDBRACKET, FLAP GUARD
-
4610246102-1223 ROD, SUSPENSION, REAR (LEFT/OUTSIDE)ROD, SUSPENSION, REAR (LEFT/OUTSIDE)
-
46102A46102-1224 ROD, SUSPENSION, REAR (LEFT/INSIDE)ROD, SUSPENSION, REAR (LEFT/INSIDE)
-
46102B46102-1225 ROD, SUSPENSION, REAR (RIGHT/OUTSIDE)ROD, SUSPENSION, REAR (RIGHT/OUTSIDE)
-
46102C46102-1226 ROD, SUSPENSION, REAR (RIGHT/INSIDE)ROD, SUSPENSION, REAR (RIGHT/INSIDE)
-
9200292002-1529 BOLT, FLANGED, 10X53.5BOLT, FLANGED, 10X53.5
-
9201592015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9209292092-1064 BUSHING-RUBBERBUSHING-RUBBER
-
9215092150-1048 BOLT, FLANGED, 10X49BOLT, FLANGED, 10X49
-
92150A92150-1070 BOLT, FLANGED, 10X52BOLT, FLANGED, 10X52
