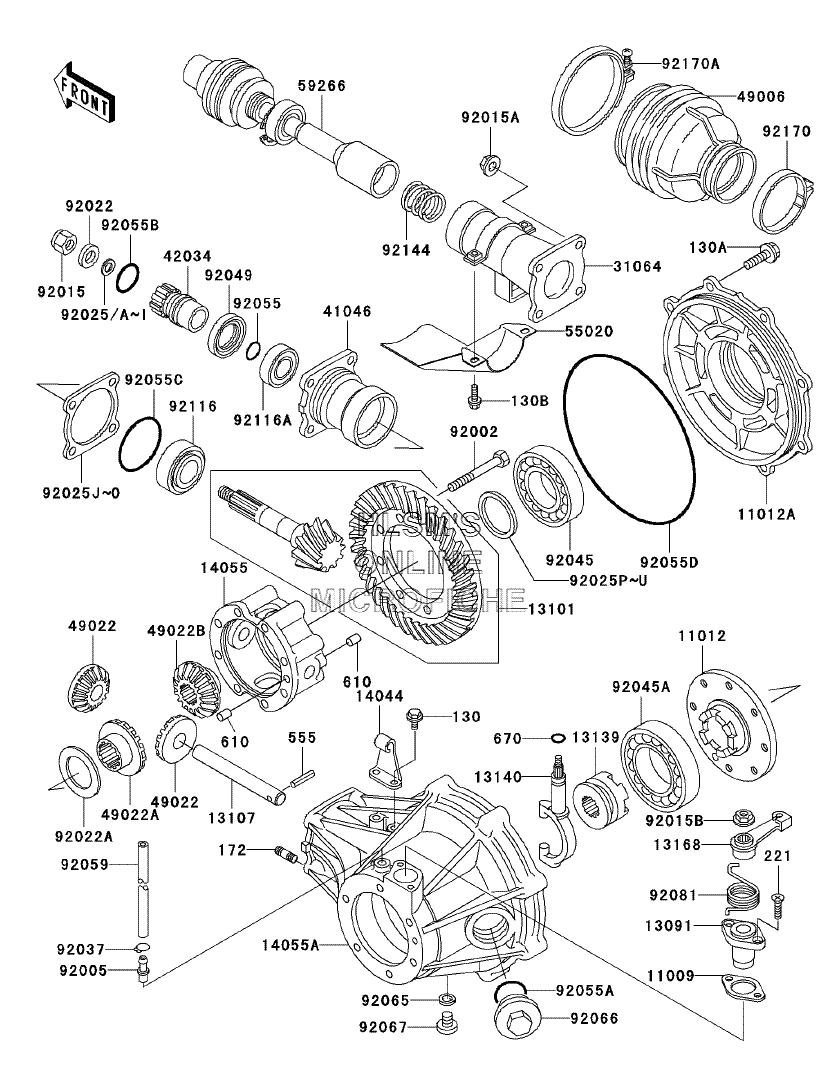

DRIVE SHAFT/FINAL GEAR для Kawasaki Bayou 300 (KLF300-B15) - 2002 года выпуска`
-
№АртикулНазвание
-
1100911009-1521 GASKETGASKET
-
1101211012-1444 CAP, BEVEL GEARCAP, BEVEL GEAR
-
11012A11012-1614 CAP, DIFFERENTIAL CASECAP, DIFFERENTIAL CASE
-
1309113091-1375 HOLDERHOLDER
-
1310113101-5054 GEAR-ASSY, DIFFERENTIAL CASEGEAR-ASSY, DIFFERENTIAL CASE
-
1310713107-1149 SHAFT, BEVEL GEARSHAFT, BEVEL GEAR
-
1313913139-1055 SHIFTERSHIFTER
-
1314013140-1259 FORK-SHIFT, DIFF LOCKFORK-SHIFT, DIFF LOCK
-
1316813168-1268 LEVERLEVER
-
1404414044-1058 HOLDER-CABLE, DIFFERENTIALHOLDER-CABLE, DIFFERENTIAL
-
1405514055-1072 CASE-GEAR, BEVELCASE-GEAR, BEVEL
-
14055A14055-1082 CASE-GEARCASE-GEAR
-
3106431064-1217 PIPE-COMPPIPE-COMP
-
4104641046-1065 HOUSING-BEARINGHOUSING-BEARING
-
4203442034-1078 COUPLING, DIFFERENTIAL CASECOUPLING, DIFFERENTIAL CASE
-
4900649006-1237 BOOT, DRIVE SHAFTBOOT, DRIVE SHAFT
-
4902249022-1065 GEAR-BEVEL, 10TGEAR-BEVEL, 10T
-
49022A49022-1104 GEAR-BEVEL, OD=35 (16 TEETH)GEAR-BEVEL, OD=35 (16 TEETH)
-
49022B49022-1106 GEAR-BEVEL, OD=30 (16 TEETH)GEAR-BEVEL, OD=30 (16 TEETH)
-
5502055020-1675 GUARDGUARD
-
5926659266-1070 JOINT-BALLJOINT-BALL
-
9200292002-1553 BOLT, 8X68BOLT, 8X68
-
9200592005-1127 FITTING, BREATHERFITTING, BREATHER
-
9201592015-1182 NUT, 12MMNUT, 12MM
-
92015A92015-1402 NUT, 8MMNUT, 8MM
-
92015B92015-1406 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
9202292022-1293 WASHER, 12.3X25X3.2WASHER, 12.3X25X3.2
-
92022A92022-1742 WASHERWASHER
-
9202592025-1282 SHIM, 12.5X17X1.30SHIM, 12.5X17X1.30
-
92025A92025-1287 SHIM, 12.5X17X0.1SHIM, 12.5X17X0.1
-
92025B92025-1288 SHIM, 12.5X17X0.2SHIM, 12.5X17X0.2
-
92025C92025-1289 SHIM, 12.5X17X0.3SHIM, 12.5X17X0.3
-
92025D92025-1290 SHIM, 12.5X17X0.5SHIM, 12.5X17X0.5
-
92025E92025-1291 SHIM, 12.5X17X0.6SHIM, 12.5X17X0.6
-
92025F92025-1292 SHIM, 12.5X17X0.7SHIM, 12.5X17X0.7
-
92025G92025-1293 SHIM, 12.5X17X0.8SHIM, 12.5X17X0.8
-
92025H92025-1294 SHIM, 12.5X17X0.9SHIM, 12.5X17X0.9
-
92025I92025-1295 SHIM, 12.5X17X1.0SHIM, 12.5X17X1.0
-
92025J92025-1703 SHIM, T=0.10SHIM, T=0.10
-
92025K92025-1704 SHIM, T=0.15SHIM, T=0.15
-
130130D0610 BOLT-FLANGEDBOLT-FLANGED
-
130A130G0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
130B130J0612 BOLT-FLANGEDBOLT-FLANGED
-
172172G0825 BOLT-STUD, 8X25BOLT-STUD, 8X25
-
221221B0618 SCREW-CSK-CROS, 6X18SCREW-CSK-CROS, 6X18
-
555555A0528 PIN-SPRINGPIN-SPRING
-
610610A0812 ROLLER, 8X12ROLLER, 8X12
-
670670B2010 O RING, 10MMO RING, 10MM
-
92025L92025-1705 SHIM, T=0.50SHIM, T=0.50
-
92025M92025-1706 SHIM, T=0.80SHIM, T=0.80
-
92025N92025-1707 SHIM, T=1.00SHIM, T=1.00
-
92025O92025-1708 SHIM, T=1.20SHIM, T=1.20
-
92025P92025-1709 SHIM, 40.5X50X0.10SHIM, 40.5X50X0.10
-
92025Q92025-1710 SHIM, 40.5X50X0.15SHIM, 40.5X50X0.15
-
92025R92025-1711 SHIM, 40.5X50X0.50SHIM, 40.5X50X0.50
-
92025S92025-1712 SHIM, 40.5X50X0.80SHIM, 40.5X50X0.80
-
92025T92025-1713 SHIM, 40.5X50X1.00SHIM, 40.5X50X1.00
-
92025U92025-1714 SHIM, 40.5X50X1.20SHIM, 40.5X50X1.20
-
9203792037-1610 CLAMPCLAMP
-
9204592045-1145 BEARING-BALL, 6208CMBEARING-BALL, 6208CM
-
92045A92045-1213 BEARING-BALL, 6210CMBEARING-BALL, 6210CM
-
9204992049-1231 SEAL-OILSEAL-OIL
-
9205592055-022 RING-O, 17.5X1.5RING-O, 17.5X1.5
-
92055A92055-1005 RING-O, 36MMRING-O, 36MM
-
92055B92055-1119 RING-O, 27MMRING-O, 27MM
-
92055C92055-1296 RING-O, 54.8MMRING-O, 54.8MM
-
92055D92055-1297 RING-O, 179.8MMRING-O, 179.8MM
-
9205992059-1939 TUBE, 6X9X1050TUBE, 6X9X1050
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1006-7J PLUG, OIL FILLER CAP, M.SILVERPLUG, OIL FILLER CAP, M.SILVER
-
9206792067-001 PLUG, DRAIN, 10X12PLUG, DRAIN, 10X12
-
9208192081-1853 SPRINGSPRING
-
9211692116-1005 BEARING-ROLLER, 4T-CR-0566BEARING-ROLLER, 4T-CR-0566
-
92116A92116-1010 BEARING-ROLLER, 4T32004XBEARING-ROLLER, 4T32004X
-
9214492144-1235 SPRING, DRIVE SHAFTSPRING, DRIVE SHAFT
-
9217092170-1674 CLAMPCLAMP
-
92170A92170-1676 CLAMPCLAMP
