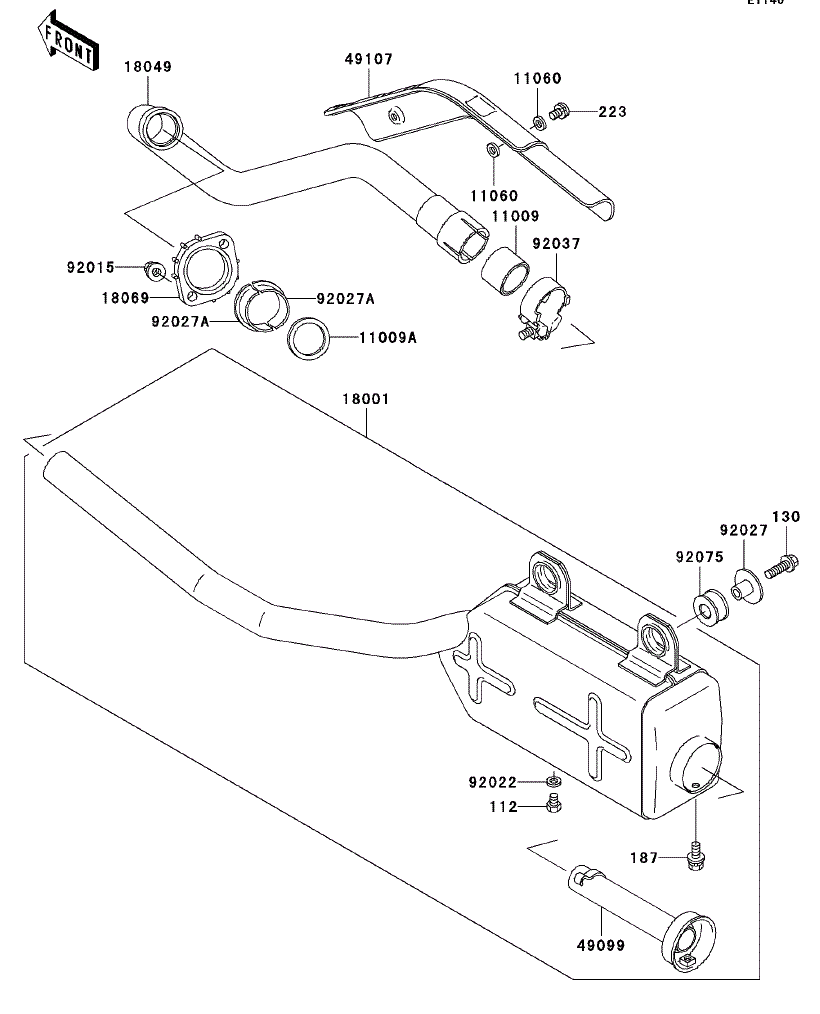

MUFFLER(S) для Kawasaki Bayou 300 (KLF300-B15) - 2002 года выпуска
-
№АртикулНазвание
-
112112B0608 BOLT-UPSETBOLT-UPSET
-
130130J0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
187187B0612 BOLT-UPSET-WSPBOLT-UPSET-WSP
-
223223C0610 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
1100911009-1718 GASKET, EXHAUST PIPE CONNECTINGGASKET, EXHAUST PIPE CONNECTING
-
11009A11009-1866 GASKET, EXHAUST PIPE HOLDERGASKET, EXHAUST PIPE HOLDER
-
1106011060-1109 GASKET, 6.2X11.5X1.5GASKET, 6.2X11.5X1.5
-
1800118001-1726 MUFFLERMUFFLER
-
1804918049-1417 PIPE-EXHAUSTPIPE-EXHAUST
-
1806918069-1014 HOLDER-EXHAUST PIPEHOLDER-EXHAUST PIPE
-
4909949099-1268 BAFFLE-PIPE MUFFLERBAFFLE-PIPE MUFFLER
-
4910749107-1081 COVER-EXHAUST PIPECOVER-EXHAUST PIPE
-
9201592015-1402 NUT, 8MMNUT, 8MM
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9202792027-1981 COLLAR, MUFFLERCOLLAR, MUFFLER
-
92027A92027-264 COLLAR, EXHAUST PIPECOLLAR, EXHAUST PIPE
-
9203792037-1956 CLAMPCLAMP
-
9207592075-1809 DAMPER, MUFFLERDAMPER, MUFFLER
