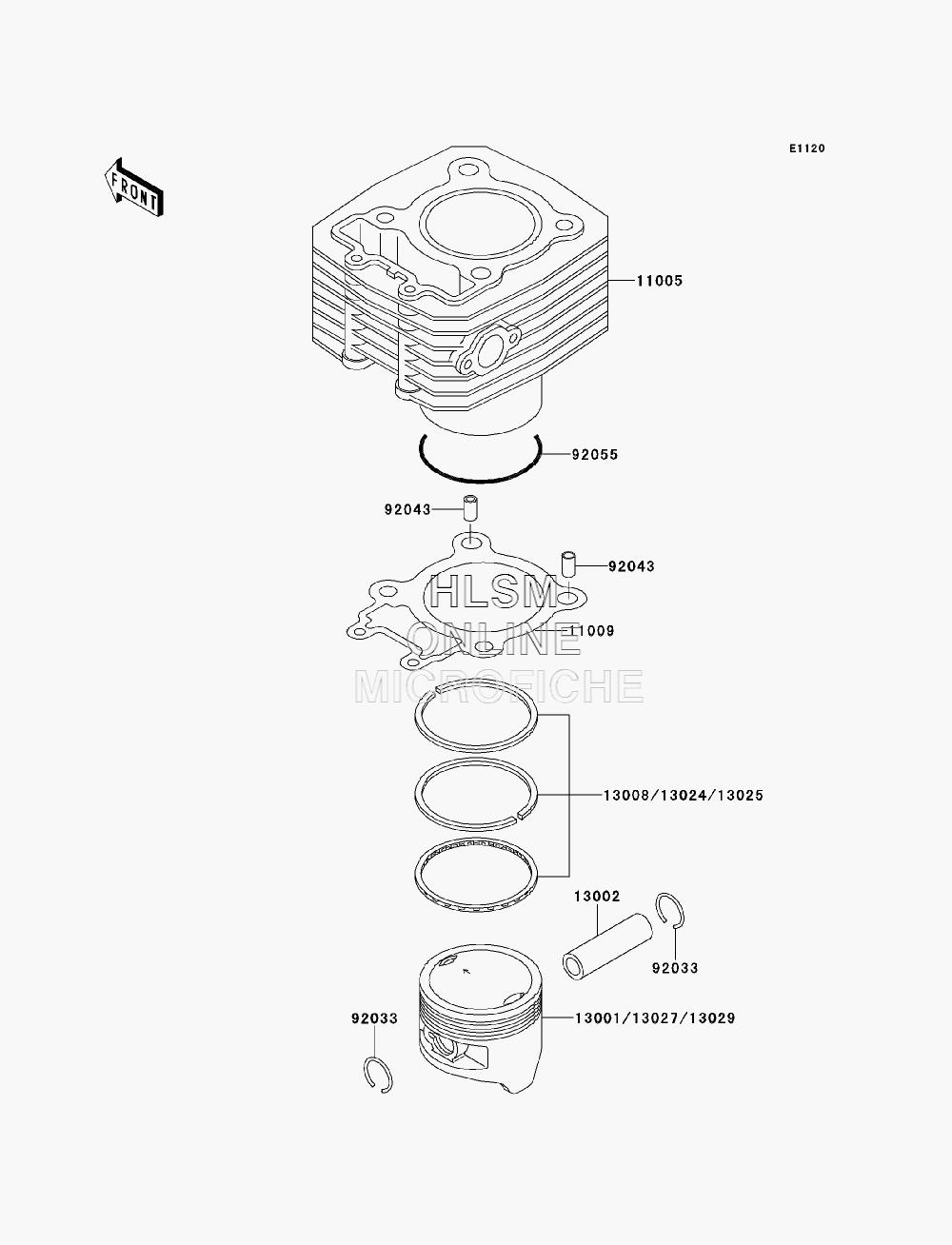

CYLINDER/PISTON(S) для Kawasaki BAYOU 220 (KLF220-A15) - 2002 года выпуска

  • №
    Артикул
    Название
  • 11005
    11005-1669 CYLINDER-ENGINE
    CYLINDER-ENGINE
  • 11009
    11009-1670 GASKET, CYLINDER BASE
    GASKET, CYLINDER BASE
  • 13001
    13001-1282 PISTON-ENGINE, STD
    PISTON-ENGINE, STD
  • 13002
    13002-1004 PIN-PISTON
    PIN-PISTON
  • 13008
    13008-1090 RING-SET-PISTON, STD
    RING-SET-PISTON, STD
  • 13024
    13024-1075 RING-SET-PISTON LL, O/S 1.00 (OPT)
    RING-SET-PISTON LL, O/S 1.00 (OPT)
  • 13025
    13025-1085 RING-SET-PISTON L, O/S 0.50 (OPT)
    RING-SET-PISTON L, O/S 0.50 (OPT)
  • 13027
    13027-1154 PISTON-ENGINE LL, O/S 1.00 (OPT)
    PISTON-ENGINE LL, O/S 1.00 (OPT)
  • 13029
    13029-1177 PISTON-ENGINE L, O/S 0.50 (OPT)
    PISTON-ENGINE L, O/S 0.50 (OPT)
  • 92033
    92033-1161 RING-SNAP, PISTON PIN
    RING-SNAP, PISTON PIN
  • 92043
    92043-4009 PIN, 10.1X12X14
    PIN, 10.1X12X14
  • 92055
    92055-1178 RING-O, 68.6MM
    RING-O, 68.6MM
