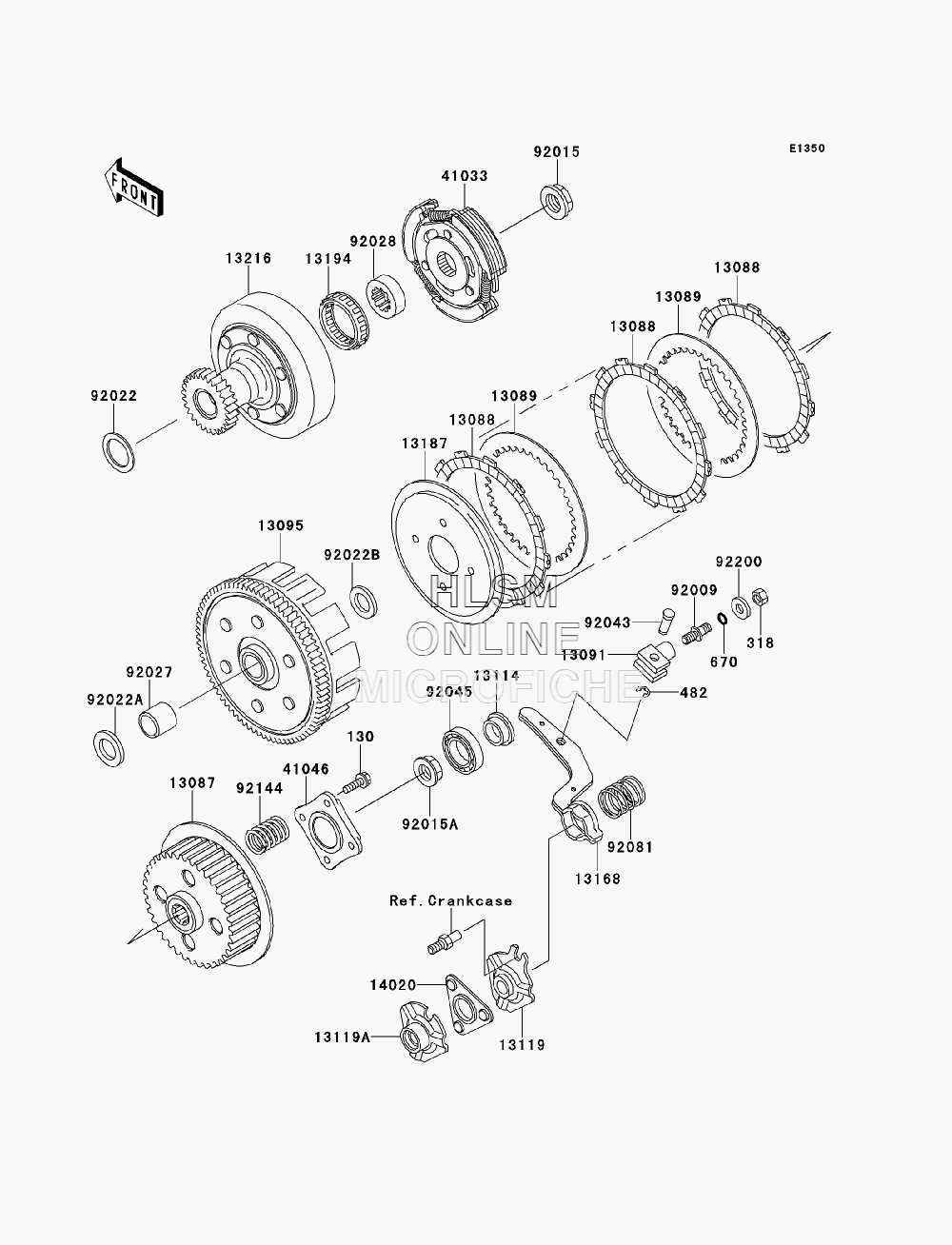

CLUTCH для Kawasaki BAYOU 220 (KLF220-A15) - 2002 года выпуска`
-
№АртикулНазвание
-
130130P0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
318318B0800 NUT-HEX-SMALL, 8MMNUT-HEX-SMALL, 8MM
-
482482J6000 CIRCLIP-TYPE-E, 6MMCIRCLIP-TYPE-E, 6MM
-
670670B1508 O RING, 8MMO RING, 8MM
-
1308713087-1089 HUB-CLUTCHHUB-CLUTCH
-
1308813088-1068 PLATE-FRICTIONPLATE-FRICTION
-
1308913089-1076 PLATE-CLUTCHPLATE-CLUTCH
-
1309113091-1341 HOLDER, CLUTCH RELEASEHOLDER, CLUTCH RELEASE
-
1309513095-1398 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1311413114-1057 PUSHER-CLUTCHPUSHER-CLUTCH
-
1311913119-1074 CAM-RELEASECAM-RELEASE
-
13119A13119-1077 CAM-RELEASECAM-RELEASE
-
1316813168-1354 LEVERLEVER
-
1318713187-1061 PLATE-CLUTCH OPERATINGPLATE-CLUTCH OPERATING
-
1319413194-1055 CLUTCH-ONEWAYCLUTCH-ONEWAY
-
1321613216-1120 GEAR-COMP, CLUTCHGEAR-COMP, CLUTCH
-
1402014020-1093 RETAINER, CLUTCH RELEASERETAINER, CLUTCH RELEASE
-
4103341033-1713 HUB-ASSY, CLUTCHHUB-ASSY, CLUTCH
-
4104641046-1082 HOUSING-BEARINGHOUSING-BEARING
-
9200992009-1303 SCREW, CLUTCH RELEASESCREW, CLUTCH RELEASE
-
9201592015-1512 NUT, 18MMNUT, 18MM
-
92015A92015-1581 NUT, 16MMNUT, 16MM
-
9202292022-1731 WASHER, 28.1X34X1.0WASHER, 28.1X34X1.0
-
92022A92022-1880 WASHER, 20.2X36X2WASHER, 20.2X36X2
-
92022B92022-1881 WASHER, 20.2X35X4WASHER, 20.2X35X4
-
9202792027-1798 COLLAR, 20X25X21COLLAR, 20X25X21
-
9202892028-1370 BUSHING, CLUTCH, FRONTBUSHING, CLUTCH, FRONT
-
9204392043-1230 PIN, CLUTCH RELEASEPIN, CLUTCH RELEASE
-
9204592045-1202 BEARING-BALLBEARING-BALL
-
9208192081-1681 SPRINGSPRING
-
9214492144-1160 SPRING, CLUTCHSPRING, CLUTCH
-
9220092200-1213 WASHER, 8.5X18X2.3WASHER, 8.5X18X2.3
