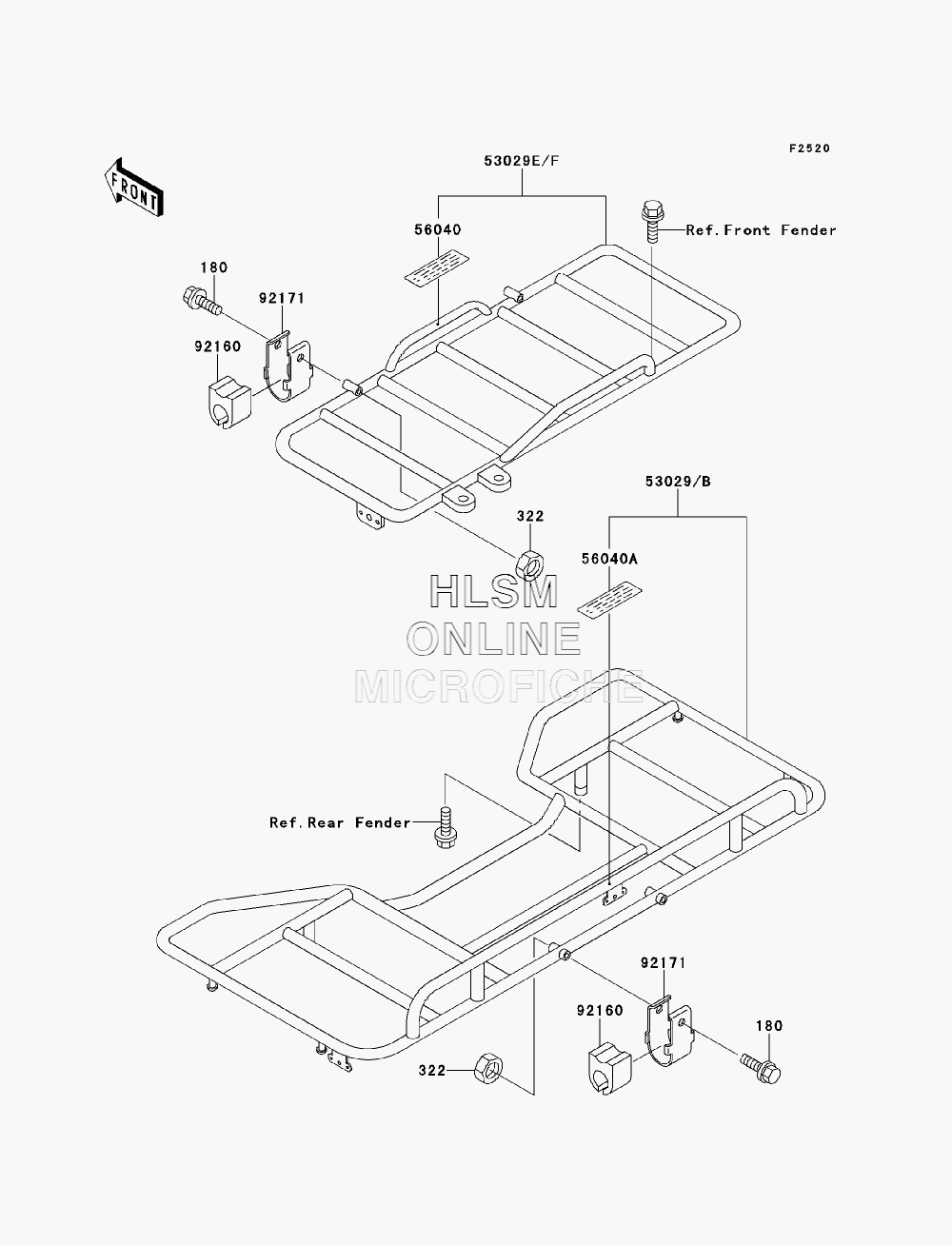

CARRIER(S) для Kawasaki BAYOU 220 (KLF220-A15) - 2002 года выпуска
-
№АртикулНазвание
-
180180J0640 BOLT-UPSET-WSBOLT-UPSET-WS
-
322322C0600 NUT-CAP, 6MM, (BLACK)NUT-CAP, 6MM, (BLACK)
-
5302953029-1178-1U CARRIER, REAR, (S.GRAY) (USA ONLY)CARRIER, REAR, (S.GRAY) (USA ONLY)
-
53029B53029-1190-1U CARRIER, REAR, (S.GRAY) (CANADA ONLY)CARRIER, REAR, (S.GRAY) (CANADA ONLY)
-
53029E53029-1215-1U CARRIER, FRONT, (S.GRAY) (USA ONLY)CARRIER, FRONT, (S.GRAY) (USA ONLY)
-
53029F53029-1217-1U CARRIER, FRONT, (S.GRAY) (CANADA ONLY)CARRIER, FRONT, (S.GRAY) (CANADA ONLY)
-
5604056040-1264 LABEL-WARNING, MAXIMUM LOADLABEL-WARNING, MAXIMUM LOAD
-
56040A56040-1265 LABEL-WARNING, MAXIMUM LOADLABEL-WARNING, MAXIMUM LOAD
-
9216092160-1112 DAMPERDAMPER
-
9217192171-1112-1U CLAMP, CARRIER, (GRAY)CLAMP, CARRIER, (GRAY)
