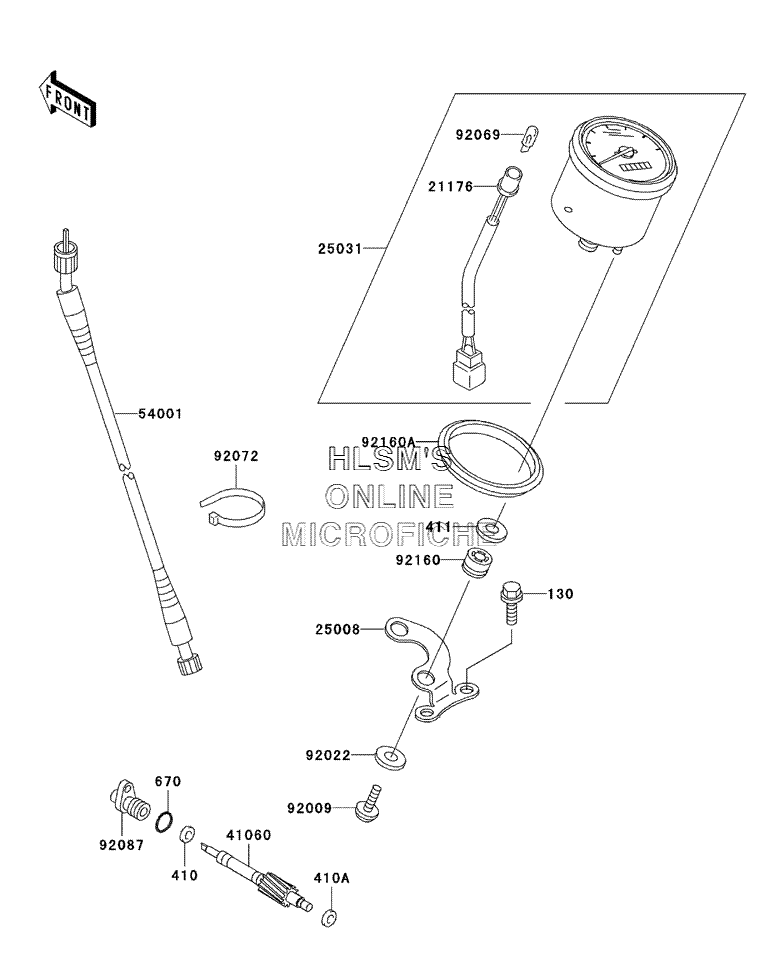

OPTIONAL PARTS (METER(S) (US ONLY) для Kawasaki Prairie 400 (KVF400-D3) - 2001 года выпуска`
-
№АртикулНазвание
-
130130J0812 BOLT-FLANGED, 8X12BOLT-FLANGED, 8X12
-
410410B0500 WASHER-PLAIN-SMALL, 5MMWASHER-PLAIN-SMALL, 5MM
-
410A410B0600 WASHER-PLAIN-SMALL, 6MMWASHER-PLAIN-SMALL, 6MM
-
2117621176-1059 CORD ASSY., SPEEDOMETERCORD ASSY., SPEEDOMETER
-
2500825008-1221 BRACKET-METERBRACKET-METER
-
2503125031-1080 METER-ASSY., MPHMETER-ASSY., MPH
-
4106041060-1157 GEAR-METER SCREWGEAR-METER SCREW
-
5400154001-1232 CABLE-SPEEDMETERCABLE-SPEEDMETER
-
9200992009-3740 SCREW, 5X12SCREW, 5X12
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
9206992069-1059 BULB, 12V 1.7W, T10BULB, 12V 1.7W, T10
-
9207292072-056 BAND, L=186BAND, L=186
-
9208792087-1057 BUSHING-METER GEARBUSHING-METER GEAR
-
9216092160-1461 DAMPERDAMPER
-
92160A92160-1959 DAMPER, SPEEDOMETERDAMPER, SPEEDOMETER
-
411411B0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
670670B2012 O RING, 12MMO RING, 12MM
