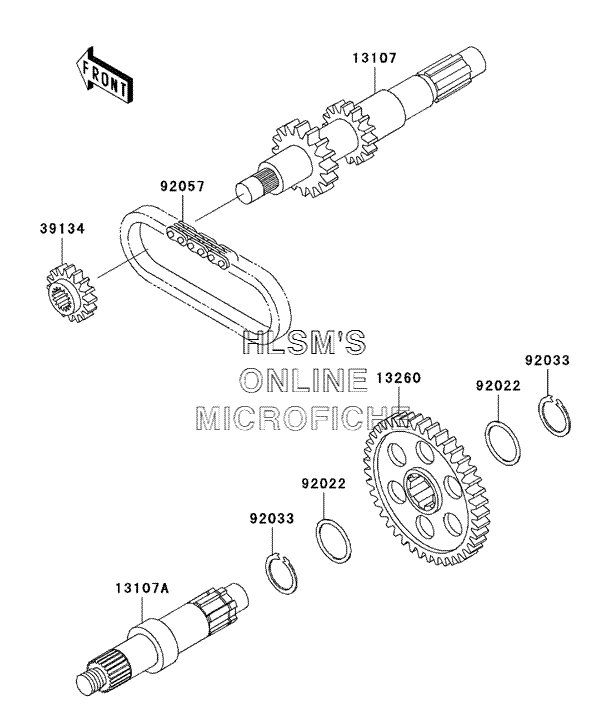

TRANSMISSION для Kawasaki Prairie 400 (KVF400-D3) - 2001 года выпуска
-
№АртикулНазвание
-
1310713107-1395 SHAFT, INPUTSHAFT, INPUT
-
13107A13107-1396 SHAFT, OUTPUTSHAFT, OUTPUT
-
1326013260-1736 GEAR, OUTPUT (44 TEETH)GEAR, OUTPUT (44 TEETH)
-
3913439134-1060 SPROCKET-DRIVE, REVERSE (19 TEETH)SPROCKET-DRIVE, REVERSE (19 TEETH)
-
9202292022-1731 WASHER, 28.1X34X1.0WASHER, 28.1X34X1.0
-
9203392033-1037 RING-SNAP, 25.9X30.6X1.2RING-SNAP, 25.9X30.6X1.2
-
9205792057-1465 CHAIN, REVERSE, 81RH2520-52CHAIN, REVERSE, 81RH2520-52
