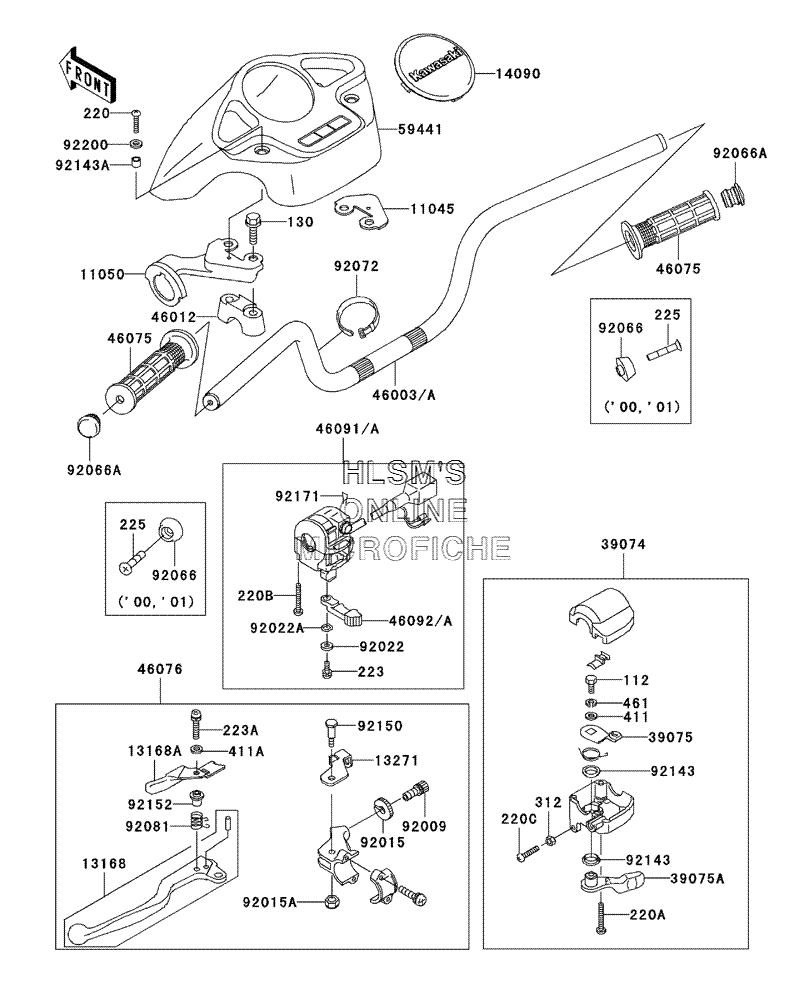

HANDLEBAR для Kawasaki Prairie 400 (KVF400-D3) - 2001 года выпуска

  • №
    Артикул
    Название
  • 112
    112D0614 BOLT-UPSET, 6X14
    BOLT-UPSET, 6X14
  • 130
    130P0860 BOLT-FLANGED, 8X60
    BOLT-FLANGED, 8X60
  • 220
    220C0416 SCREW-PAN-CROSS
    SCREW-PAN-CROSS
  • 220A
    220C0530 SCREW-PAN-CROS, 5X30
    SCREW-PAN-CROS, 5X30
  • 220B
    220C0535 SCREW-PAN-CROS, 5X35
    SCREW-PAN-CROS, 5X35
  • 220C
    220C0630 SCREW-PAN-CROS, 6X30, BLACK
    SCREW-PAN-CROS, 6X30, BLACK
  • 11045
    11045-1925 BRACKET, HANDLE COVER
    BRACKET, HANDLE COVER
  • 11050
    11050-1727 BRACKET, HANDLE COVER (LEFT)
    BRACKET, HANDLE COVER (LEFT)
  • 13168
    13168-1672 LEVER, (LEFT)
    LEVER, (LEFT)
  • 13168A
    13168-1673 LEVER, LOCK
    LEVER, LOCK
  • 13271
    13271-1259 PLATE, LOCK
    PLATE, LOCK
  • 14090
    14090-1945-6Z COVER, BLIND CAP, F.BLACK (US ONLY)
    COVER, BLIND CAP, F.BLACK (US ONLY)
  • 39074
    39074-1055 LEVER-ASSY.-THROTTLE
    LEVER-ASSY.-THROTTLE
  • 39075
    39075-1054 LEVER-THROTTLE, ARM
    LEVER-THROTTLE, ARM
  • 39075A
    39075-1059 LEVER-THROTTLE
    LEVER-THROTTLE
  • 46003
    46003-1452 HANDLE
    HANDLE
  • 46012
    46012-1168 HOLDER-HANDLE
    HOLDER-HANDLE
  • 46075
    46075-1056 GRIP
    GRIP
  • 46076
    46076-1224 LEVER-ASSY.-GRIP (LEFT)
    LEVER-ASSY.-GRIP (LEFT)
  • 46091
    46091-1799 HOUSING-ASSY.-CONTROL (LEFT)
    HOUSING-ASSY.-CONTROL (LEFT)
  • 46092
    46092-1205 LEVER-GRIP, CHOKE
    LEVER-GRIP, CHOKE
  • 59441
    59441-1143-6Z COVER-HANDLE (F.BLACK)
    COVER-HANDLE (F.BLACK)
  • 92009
    92009-1435 SCREW, CABLE ADJUST, 8MM
    SCREW, CABLE ADJUST, 8MM
  • 92015
    92015-1596 NUT, CABLE ADJUST LOCK, 8MM
    NUT, CABLE ADJUST LOCK, 8MM
  • 92015A
    92015-1829 NUT
    NUT
  • 92022
    92022-1837 WASHER, 5MM
    WASHER, 5MM
  • 92022A
    92022-1838 WASHER, WAVE, 5MM
    WASHER, WAVE, 5MM
  • 92066
    92066-1191 PLUG, HANDLE
    PLUG, HANDLE
  • 92072
    92072-031 BAND, L=149
    BAND, L=149
  • 92081
    92081-1358 SPRING, LOCK RETURN
    SPRING, LOCK RETURN
  • 92143
    92143-1138 COLLAR
    COLLAR
  • 92143A
    92143-1336 COLLAR, 5.6X8X7
    COLLAR, 5.6X8X7
  • 92150
    92150-1420 BOLT
    BOLT
  • 92152
    92152-1176 COLLAR
    COLLAR
  • 92171
    92171-1095 CLAMP, CLIP
    CLAMP, CLIP
  • 92200
    92200-1361 WASHER, 4.5X11.5X0.8
    WASHER, 4.5X11.5X0.8
  • 223
    223C0512 SCREW-PAN-WS-CROS, 5X12
    SCREW-PAN-WS-CROS, 5X12
  • 223A
    223C0520 SCREW-PAN-WS-CROS
    SCREW-PAN-WS-CROS
  • 225
    225C0620 SCREW-PAN-WSP-CROS, 6X20
    SCREW-PAN-WSP-CROS, 6X20
  • 312
    312C0600 NUT-HEX, 6MM, BLACK
    NUT-HEX, 6MM, BLACK
  • 411
    411E0600 WASHER-PLAIN, 6MM
    WASHER-PLAIN, 6MM
  • 411A
    411F0500 WASHER-PLAIN, 5MM, BLACK
    WASHER-PLAIN, 5MM, BLACK
  • 461
    461L0600 WASHER-SPRING
    WASHER-SPRING
