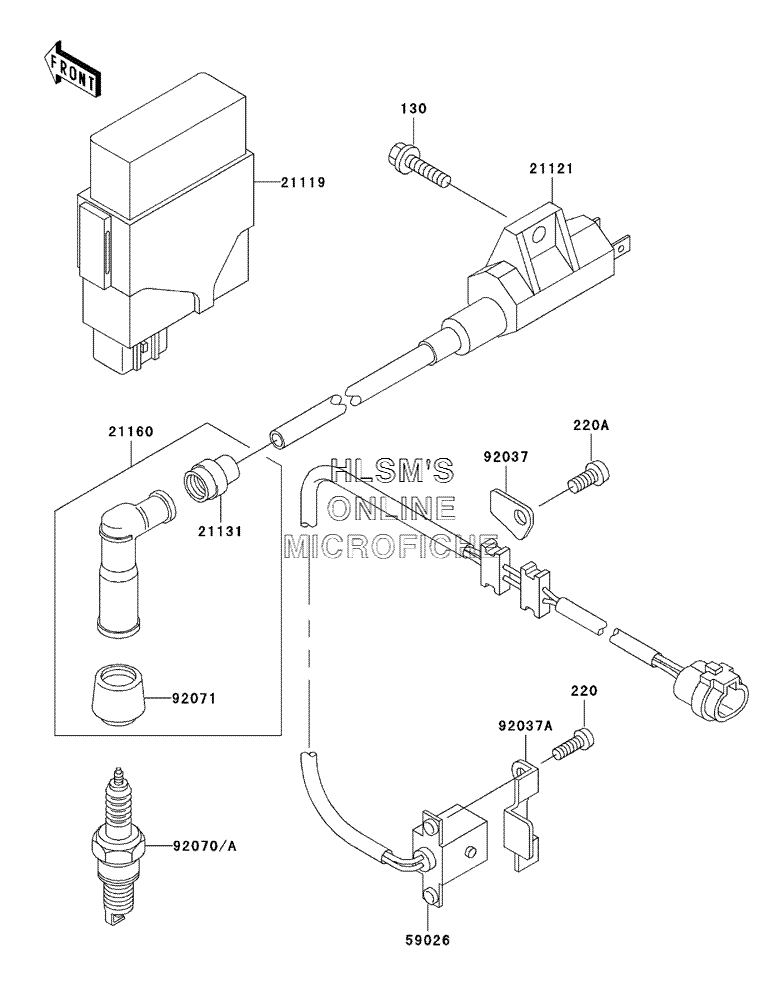

IGNITION SYSTEM для Kawasaki Prairie 300 4x4 (KVF300-A2) - 2000 года выпуска
-
№АртикулНазвание
-
130130D0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
220220B0514 SCREW-PAN-CROS, 5X14SCREW-PAN-CROS, 5X14
-
220A220B0612 SCREW-PAN-CROS, 6X12SCREW-PAN-CROS, 6X12
-
2111921119-1517 IGNITERIGNITER
-
2112121121-1160 COIL-IGNITIONCOIL-IGNITION
-
2113121131-005 GROMMET, HIGH TENSIONGROMMET, HIGH TENSION
-
2116021160-1089 CAP-ASSY-PLUGCAP-ASSY-PLUG
-
5902659026-1146 COIL-PULSINGCOIL-PULSING
-
9203792037-1656 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
92037A92037-1987 CLAMPCLAMP
-
92070A92070-1199 PLUG-SPARK, DR8EA(NGK)PLUG-SPARK, DR8EA(NGK)
-
9207192071-1184 GROMMET, PLUG CAPGROMMET, PLUG CAP
