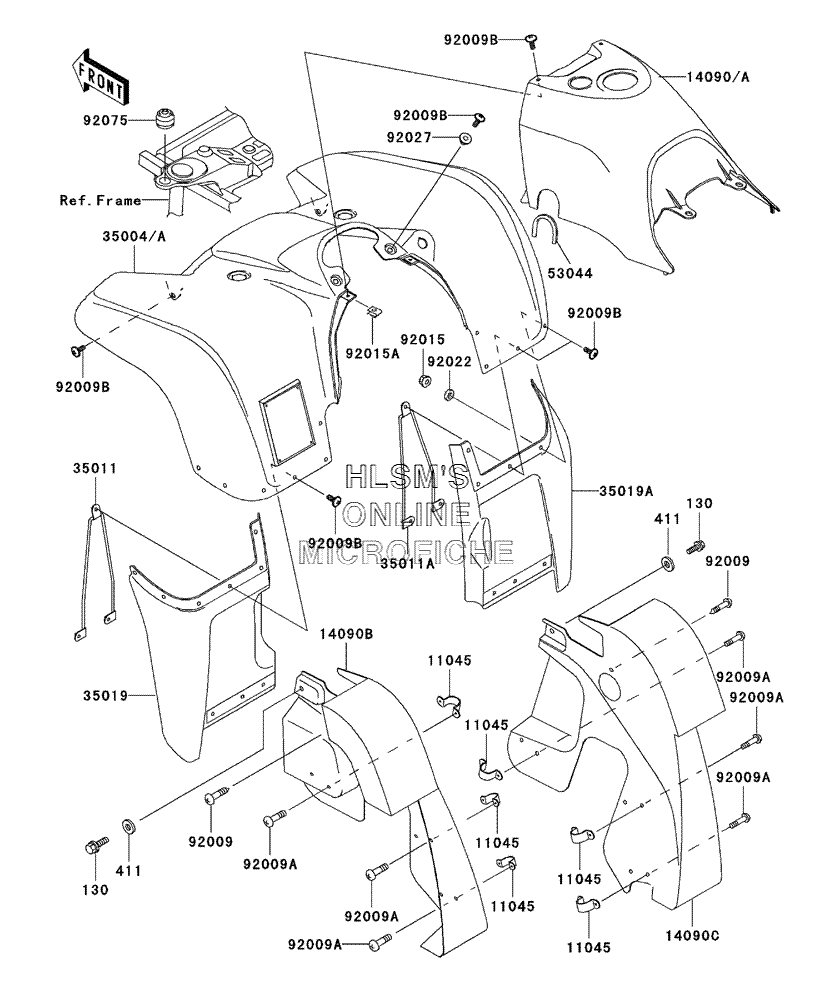

FENDER - FRONT для Kawasaki Prairie 300 4x4 (KVF300-A2) - 2000 года выпуска

  • №
    Артикул
    Название
  • 130
    130C0814 BOLT-FLANGED, 8X14
    BOLT-FLANGED, 8X14
  • 411
    411F0800 WASHER-PLAIN, 8MM (BLACK)
    WASHER-PLAIN, 8MM (BLACK)
  • 11045
    11045-1882 BRACKET, FENDER
    BRACKET, FENDER
  • 14090
    14090-1666-6A COVER, FUEL TANK (H.GREEN)
    COVER, FUEL TANK (H.GREEN)
  • 14090A
    14090-1666-6L COVER, FUEL TANK (F.RED)
    COVER, FUEL TANK (F.RED)
  • 14090B
    14090-1933 COVER, FRONT INNER FLAP (LEFT)
    COVER, FRONT INNER FLAP (LEFT)
  • 14090C
    14090-1934 COVER, FRONT INNER FLAP (RIGHT)
    COVER, FRONT INNER FLAP (RIGHT)
  • 35004
    35004-1378-6A FENDER-FRONT (H.GREEN)
    FENDER-FRONT (H.GREEN)
  • 35004A
    35004-1378-6L FENDER-FRONT (F.RED)
    FENDER-FRONT (F.RED)
  • 35011
    35011-1761 STAY, FRONT FLAP (LEFT)
    STAY, FRONT FLAP (LEFT)
  • 35011A
    35011-1784 STAY, FRONT FLAP (RIGHT)
    STAY, FRONT FLAP (RIGHT)
  • 35019
    35019-7501-6Z FLAP, FRONT (LEFT) (F.BLACK)
    FLAP, FRONT (LEFT) (F.BLACK)
  • 35019A
    35019-7502-6Z FLAP, FRONT (RIGHT) (F.BLACK)
    FLAP, FRONT (RIGHT) (F.BLACK)
  • 53044
    53044-1303 TRIM, L=150
    TRIM, L=150
  • 92009
    92009-1166 SCREW, TAPPING, 6X16
    SCREW, TAPPING, 6X16
  • 92009A
    92009-1332 SCREW, TAPPING, 5X10
    SCREW, TAPPING, 5X10
  • 92009B
    92009-1621 SCREW, 6X16
    SCREW, 6X16
  • 92015
    92015-1675 NUT, LOCK, FLANGED, 6MM
    NUT, LOCK, FLANGED, 6MM
  • 92015A
    92015-1678 NUT, CLAMP, 6MM
    NUT, CLAMP, 6MM
  • 92022
    92022-1093 WASHER, 6.5X16X1.0
    WASHER, 6.5X16X1.0
  • 92027
    92027-1964 COLLAR, L=4.7
    COLLAR, L=4.7
  • 92075
    92075-1744 DAMPER
    DAMPER
