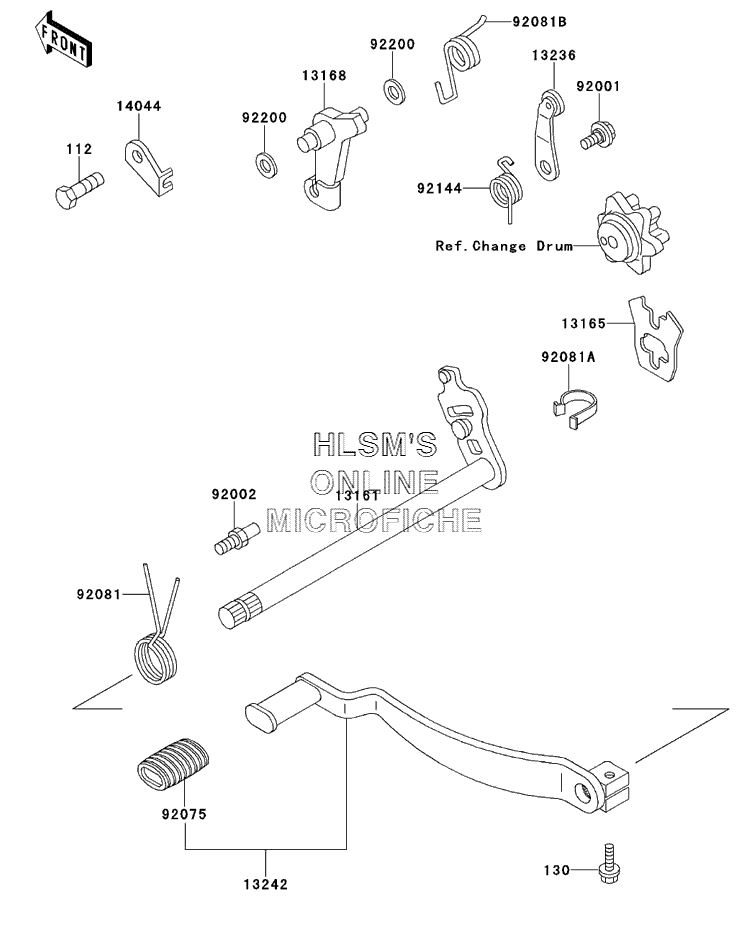

GEAR CHANGE MECHANISM для Kawasaki Mojave 250 (KSF250-A14) - 2000 года выпуска

  • №
    Артикул
    Название
  • 112
    112B0512 BOLT-UPSET
    BOLT-UPSET
  • 130
    130S0620 BOLT-FLANGED, 6X20 (BLACK)
    BOLT-FLANGED, 6X20 (BLACK)
  • 13161
    13161-1133 LEVER-COMP-CHANGE SHAFT
    LEVER-COMP-CHANGE SHAFT
  • 13165
    13165-1034 PAWL, CHANGE LEVER
    PAWL, CHANGE LEVER
  • 13168
    13168-1344 LEVER, REVERSE
    LEVER, REVERSE
  • 13236
    13236-1117 LEVER-COMP, CHANGE DRUM
    LEVER-COMP, CHANGE DRUM
  • 13242
    13242-1223 LEVER-ASSY-CHANGE, PEDAL
    LEVER-ASSY-CHANGE, PEDAL
  • 14044
    14044-1072 HOLDER-CABLE
    HOLDER-CABLE
  • 92001
    92001-1715 BOLT, GEAR CHANGE LEVER
    BOLT, GEAR CHANGE LEVER
  • 92002
    92002-1355 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
  • 92075
    92075-1585 DAMPER, CHANGE PEDAL
    DAMPER, CHANGE PEDAL
  • 92081
    92081-1750 SPRING, CHANGE PEDAL RETURN
    SPRING, CHANGE PEDAL RETURN
  • 92081A
    92081-1829 SPRING, CHANGE LEVER
    SPRING, CHANGE LEVER
  • 92081B
    92081-1998 SPRING, REVERSE LOCK
    SPRING, REVERSE LOCK
  • 92144
    92144-1077 SPRING, POSITION LEVER
    SPRING, POSITION LEVER
  • 92200
    92200-1039 WASHER, 8X13X0.5
    WASHER, 8X13X0.5
