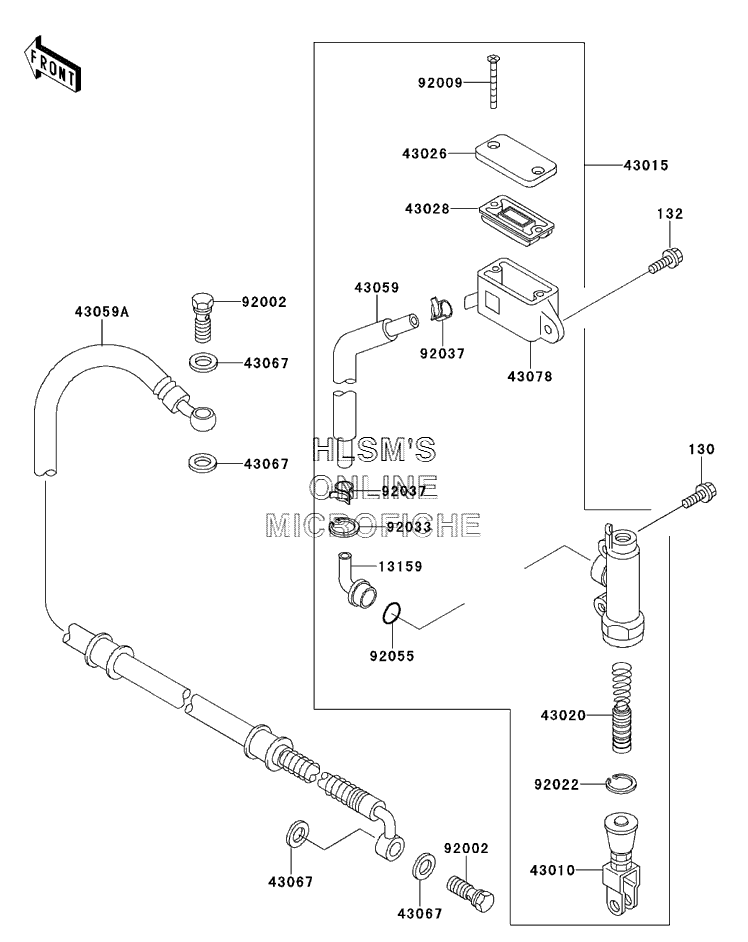

BRAKE - MASTER CYLINDER - REAR для Kawasaki Mojave 250 (KSF250-A14) - 2000 года выпуска`
-
№АртикулНазвание
-
130130S0814 BOLT-FLANGEDBOLT-FLANGED
-
132132G0614 BOLT-FLANGED-SMALLBOLT-FLANGED-SMALL
-
1315913159-1052 CONNECTOR, RR MASTER CYLINDERCONNECTOR, RR MASTER CYLINDER
-
4301043010-1060 ROD-ASSY-BRAKE, REARROD-ASSY-BRAKE, REAR
-
4301543015-1326 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1063 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-1022 CAP-BRAKECAP-BRAKE
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4305943059-1369 HOSE-BRAKE, REAR MASTER CYLINDERHOSE-BRAKE, REAR MASTER CYLINDER
-
43059A43059-1877 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1078 RESERVOIRRESERVOIR
-
9200292002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9200992009-1409 SCREW, 5MMSCREW, 5MM
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9205592055-1251 RING-O, MASTER CYLINDERRING-O, MASTER CYLINDER
