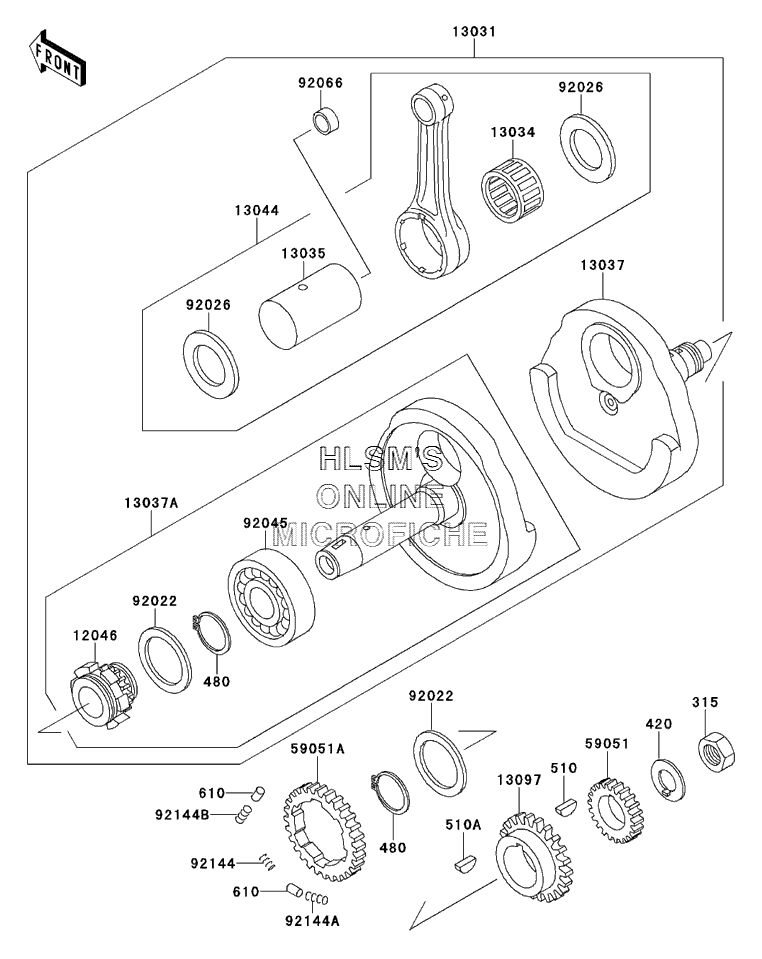

CRANKSHAFT для Kawasaki Mojave 250 (KSF250-A14) - 2000 года выпуска

  • №
    Артикул
    Название
  • 315
    315B1600 NUT-HEX-FINE, 16MM
    NUT-HEX-FINE, 16MM
  • 420
    420B1611 WASHER-CLAW, 16MM
    WASHER-CLAW, 16MM
  • 480
    480J4000 CIRCLIP
    CIRCLIP
  • 510
    510A3100 KEY-WOODRUFF
    KEY-WOODRUFF
  • 510A
    510A5100 KEY-WOODRUFF
    KEY-WOODRUFF
  • 610
    610A0510 ROLLER
    ROLLER
  • 12046
    12046-1086 SPROCKET, CAM (21 TEETH)
    SPROCKET, CAM (21 TEETH)
  • 13031
    13031-1280 CRANKSHAFT-COMP
    CRANKSHAFT-COMP
  • 13034
    13034-1085 BEARING-BIG END
    BEARING-BIG END
  • 13035
    13035-1069 PIN-CRANK
    PIN-CRANK
  • 13037
    13037-1284 CRANKSHAFT (RIGHT)
    CRANKSHAFT (RIGHT)
  • 13037A
    13037-5070 CRANKSHAFT (LEFT)
    CRANKSHAFT (LEFT)
  • 13044
    13044-5075 SET-CONNECTING ROD
    SET-CONNECTING ROD
  • 13097
    13097-1170 GEAR-PRIMARY SPUR (20 TEETH)
    GEAR-PRIMARY SPUR (20 TEETH)
  • 59051
    59051-1122 GEAR-SPUR, OIL PUMP (18 TEETH)
    GEAR-SPUR, OIL PUMP (18 TEETH)
  • 59051A
    59051-1169 GEAR-SPUR, BALANCER (39 TEETH)
    GEAR-SPUR, BALANCER (39 TEETH)
  • 92022
    92022-1798 WASHER, 40.5X60X1.6
    WASHER, 40.5X60X1.6
  • 92026
    92026-1348 SPACER, 32.2X51.5X1.2
    SPACER, 32.2X51.5X1.2
  • 92045
    92045-1172 BEARING-BALL
    BEARING-BALL
  • 92066
    92066-1249 PLUG
    PLUG
  • 92144
    92144-1091 SPRING, BALANCER OUTSIDE
    SPRING, BALANCER OUTSIDE
  • 92144A
    92144-1092 SPRING, BALANCER, INSIDE
    SPRING, BALANCER, INSIDE
  • 92144B
    92144-1248 SPRING, BALANCER GEAR
    SPRING, BALANCER GEAR
