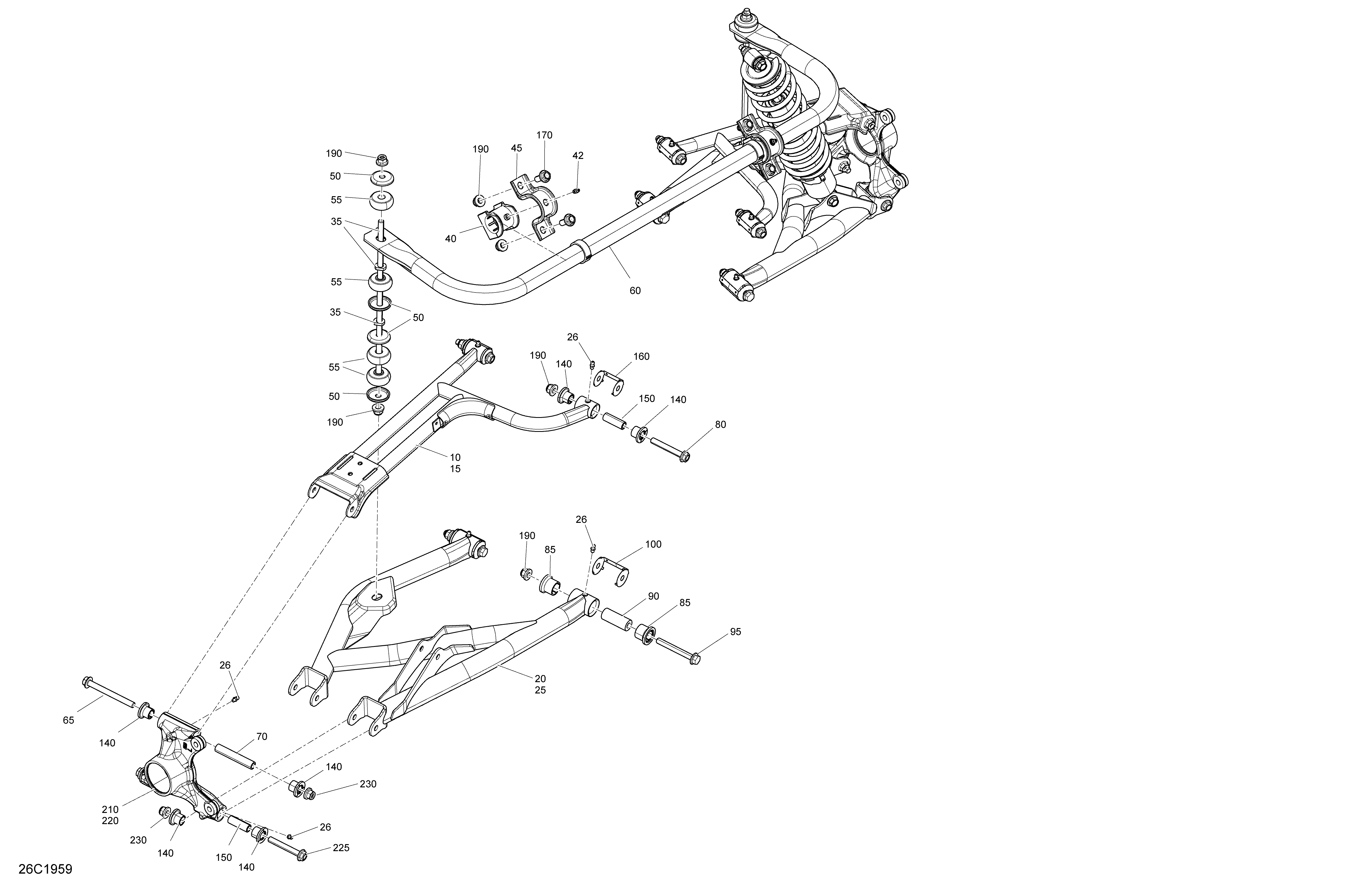

08- Rear Suspension - HD10 XMR для BRP 006 - Defender MAX HD10 - XMR - North America - 2019
-
№АртикулНазвание
-
10706002870 Yellow LH Rear Upper Suspension ArmYellow LH Rear Upper Suspension Arm
-
15706002871 Yellow RH Rear Upper Suspension ArmYellow RH Rear Upper Suspension Arm
-
20706002872 Yellow LH Rear Lower Suspension ArmYellow LH Rear Lower Suspension Arm
-
25706002873 Yellow RH Rear Suspension Lower ArmYellow RH Rear Suspension Lower Arm
-
26408200700 Grease FittingGrease Fitting
-
65230600046 Screw-Hex.Flange DIN.6921Screw-Hex.Flange DIN.6921
-
70706202197 Upper BushingUpper Bushing
-
80207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
85706201659 CushionCushion
-
90706201590 SleeveSleeve
-
95207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
100706201660 Wear PlateWear Plate
-
140703500875 Bushing KitBushing Kit
-
150703500875 Bushing KitBushing Kit
-
160703500875 Bushing KitBushing Kit
-
210706002809 Rear Left Machined KnuckleRear Left Machined Knuckle
-
220706002811 Rear Right Machined KnuckleRear Right Machined Knuckle
-
225207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
230233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
