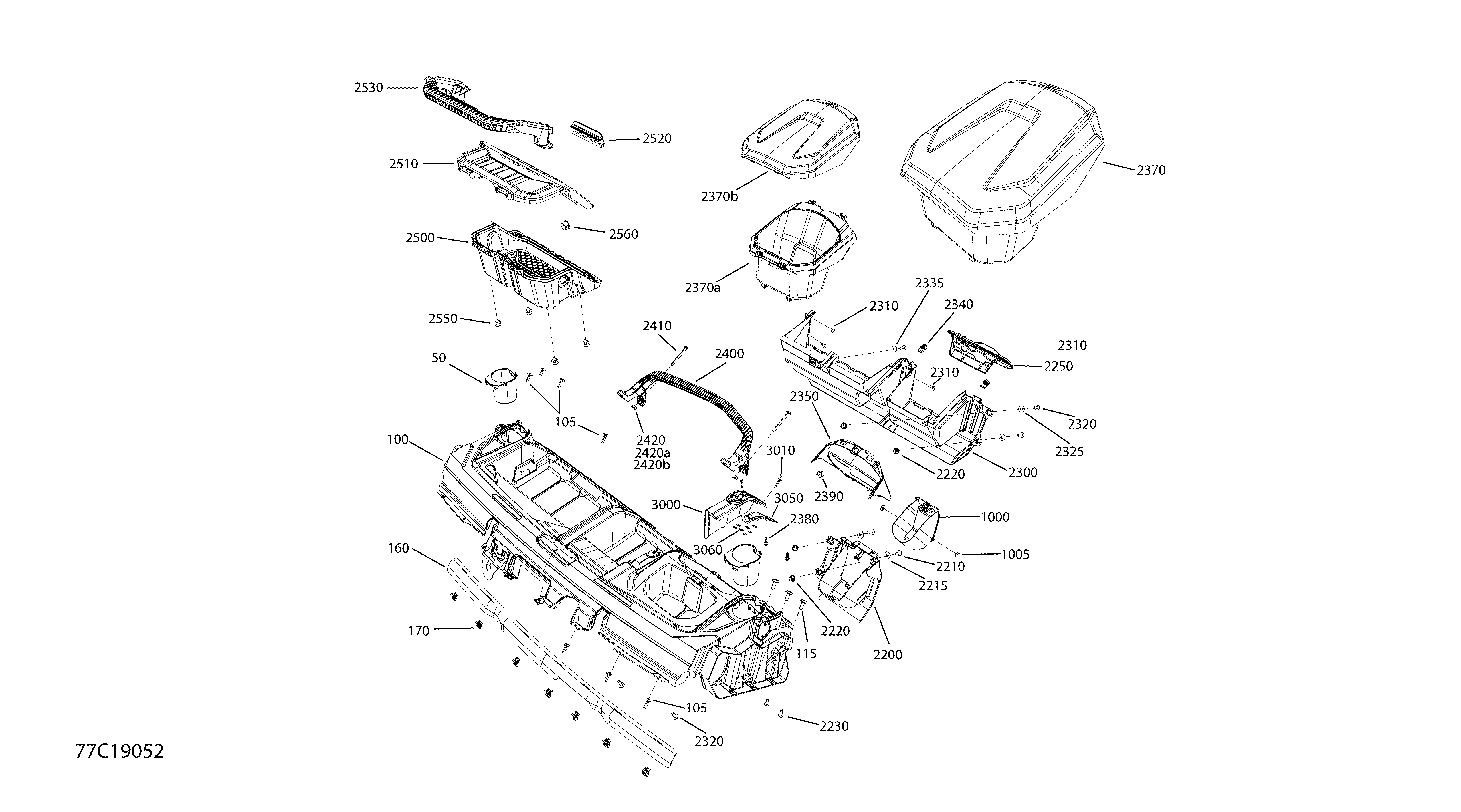

09- Cab Interior Defender & Traxter MAX - DASH для BRP 006 - Defender MAX HD10 - XMR - North America - 2019
-
№АртикулНазвание
-
50707900288 Cup HolderCup Holder
-
100715005590 Dashboard KitDashboard Kit
-
105250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
115250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
160707900411 Dash TrimDash Trim
-
170517302785 Edge ClipEdge Clip
-
1000707900252 DrawerDrawer
-
1005293300194 O-RingO-Ring
-
2200707900251 LH Lower DashLH Lower Dash
-
2210250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2215234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2220250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
2230250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2250707900320 Switches PanelSwitches Panel
-
2300707900250 RH Lower DashRH Lower Dash
-
2310250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2320250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
2325234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2335234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2340250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
2350707900285 Cluster SupportCluster Support
-
2350707900358 Cluster SupportCluster Support
-
2370707900606 Storage Bin ASS'Y. Includes 2370 to 2370bStorage Bin ASS'Y. Includes 2370 to 2370b
-
2370a707900284 Storage BinStorage Bin
-
2370b707900225 Storage CoverStorage Cover
-
2380241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
2390705003264 GrommetGrommet
-
2400707900248 Passenger HandholdPassenger Handhold
-
2410250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
2420269500725 Nut Housing Ass'y. Includes 2420 to 2420bNut Housing Ass'y. Includes 2420 to 2420b
-
2420a269500252 M6 Nut Housing Ass'yM6 Nut Housing Ass'y
-
2420b232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
2500707900244 Glove Box BaseGlove Box Base
-
2510707900245 Glove Box CoverGlove Box Cover
-
2520269501945 ClipClip
-
2530707900567 HandleHandle
-
2550293830005 Rubber BumperRubber Bumper
-
2560293000120 CapCap
-
3000707900608 Shifter GateShifter Gate
-
3010250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3050707900506 Shifter Gate DeflectorShifter Gate Deflector
-
3060250100178 Push NutPush Nut
