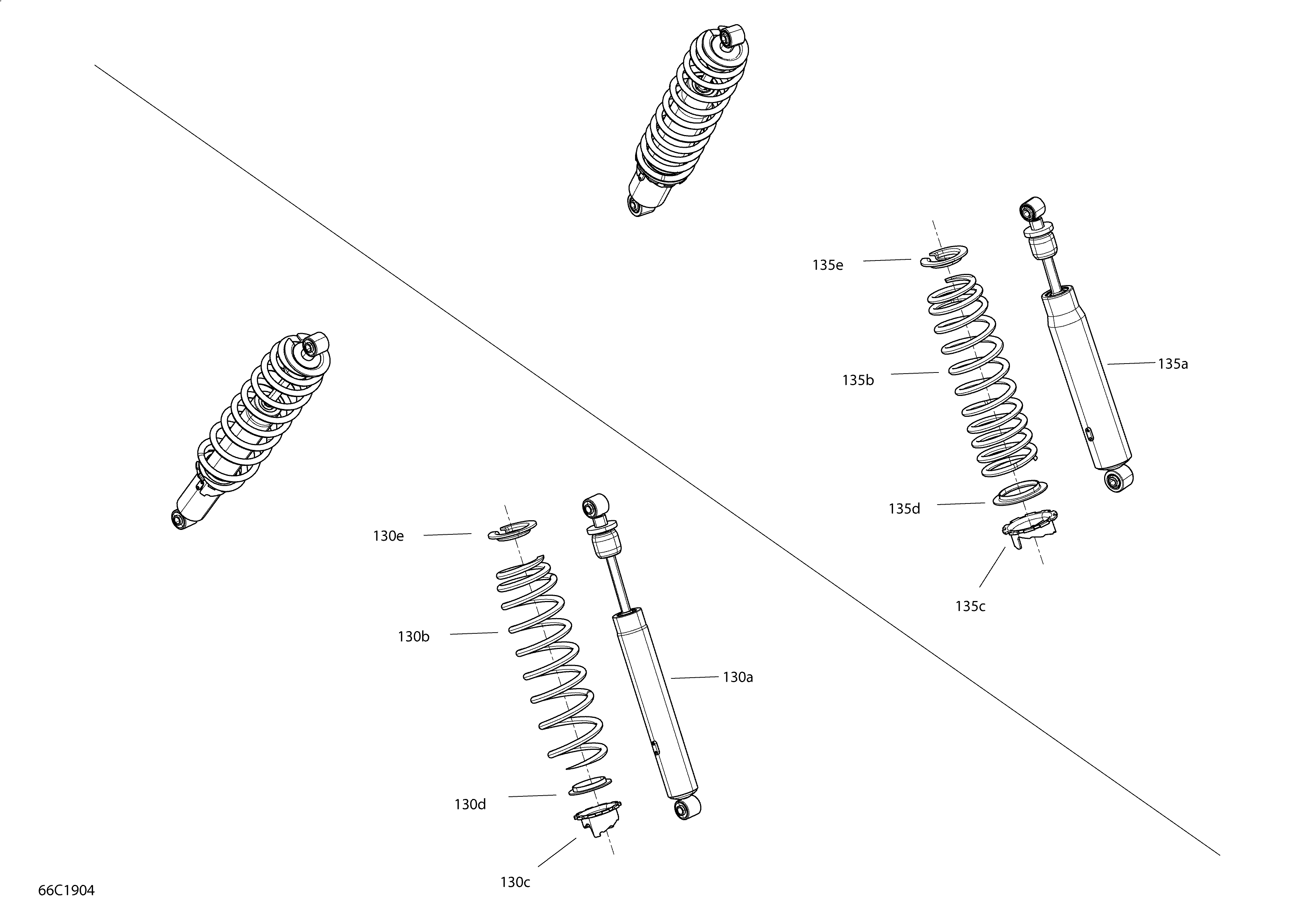

07- Shocks - XMR для BRP 006 - Defender MAX HD10 - XMR - North America - 2019
-
№АртикулНазвание
-
130a706203374 Front Absorber Shock OilFront Absorber Shock Oil
-
130b706203375 Sunburst Yellow, Fr. Compression SpringSunburst Yellow, Fr. Compression Spring
-
130c706000910 Adjustable RingAdjustable Ring
-
130d706000911 Protector RingProtector Ring
-
130e706001894 Spring CupSpring Cup
-
135a706002853 Rear ShockRear Shock
-
135b706003265 Sunburst Yellow SpringSunburst Yellow Spring
-
135c706000910 Adjustable RingAdjustable Ring
-
135d706000911 Protector RingProtector Ring
-
135e706001894 Spring CupSpring Cup
