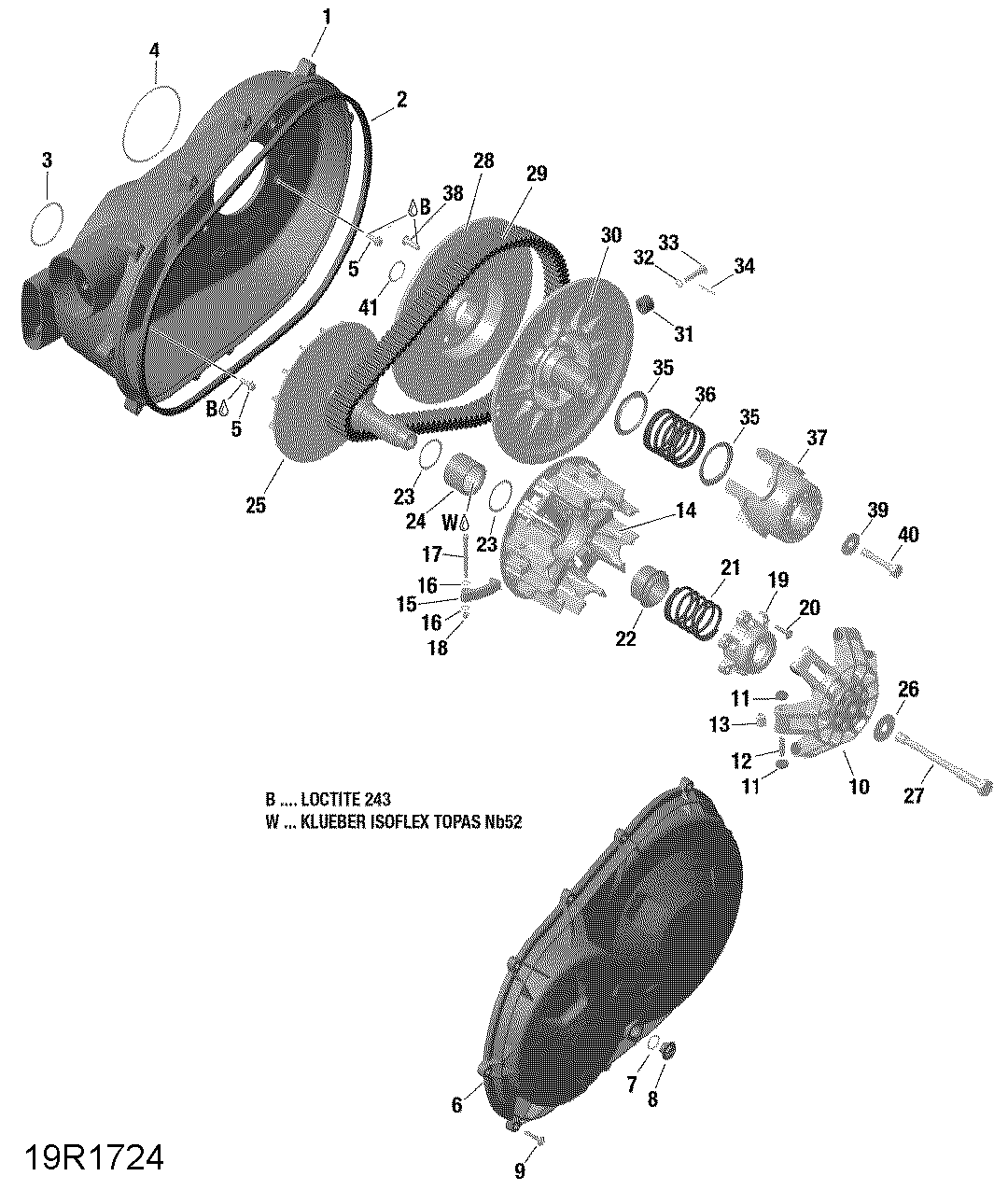

05- Transmission - HD10 - XMR для BRP 006 - Defender MAX HD10 - XMR - North America - 2019
-
№АртикулНазвание
-
1420212600 CVT Air GuideCVT Air Guide
-
2420450400 GasketGasket
-
3420430408 O-RingO-Ring
-
4420450430 O-RingO-Ring
-
5420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
6420212500 Variator CoverVariator Cover
-
7420250050 O-RingO-Ring
-
8420441820 CapCap
-
9420441573 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
10420280727 Governor Cup Ass'yGovernor Cup Ass'y
-
11420281296 Slider Shoe SetSlider Shoe Set
-
12417223257 Roller AxleRoller Axle
-
13420229991 RollerRoller
-
14420280608 Outer Half Ass'yOuter Half Ass'y
-
15>18TBD Centrifugal Lever KitCentrifugal Lever Kit
-
19420280616 Bearing Cover Ass'yBearing Cover Ass'y
-
20420841549 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
21420638119 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
22420427211 Spring SeatSpring Seat
-
23420427220 WasherWasher
-
24420233418 BearingBearing
-
25420280597 Inner Half Ass'yInner Half Ass'y
-
26420245690 WasherWasher
-
27420841161 Hexagonal Screw M14X 165Hexagonal Screw M14X 165
-
28420686523 Driven Pulley Ass'y. Incl 30, 35, 36, 37Driven Pulley Ass'y. Incl 30, 35, 36, 37
-
28420280635 Inner Half Ass'yInner Half Ass'y
-
29422280654 Drive BeltDrive Belt
-
30420686523 Driven Pulley Ass'y. Incl 28, 35, 36, 37Driven Pulley Ass'y. Incl 28, 35, 36, 37
-
30420280627 Outer Half Ass'yOuter Half Ass'y
-
31417127016 RollerRoller
-
32250200009 Lock Washer 8 mmLock Washer 8 mm
-
33417127294 Pivot StudPivot Stud
-
34420629200 Dowel PinDowel Pin
-
35417127116 Swivel AbutmentSwivel Abutment
-
36417127039 Black SpringBlack Spring
-
37420280647 CamCam
-
38420441981 Binding Head Screw M8X25Binding Head Screw M8X25
-
39420427240 Collar WasherCollar Washer
-
40420441990 Hexagonal Screw M10X 61Hexagonal Screw M10X 61
-
41420647257 Distance RingDistance Ring
