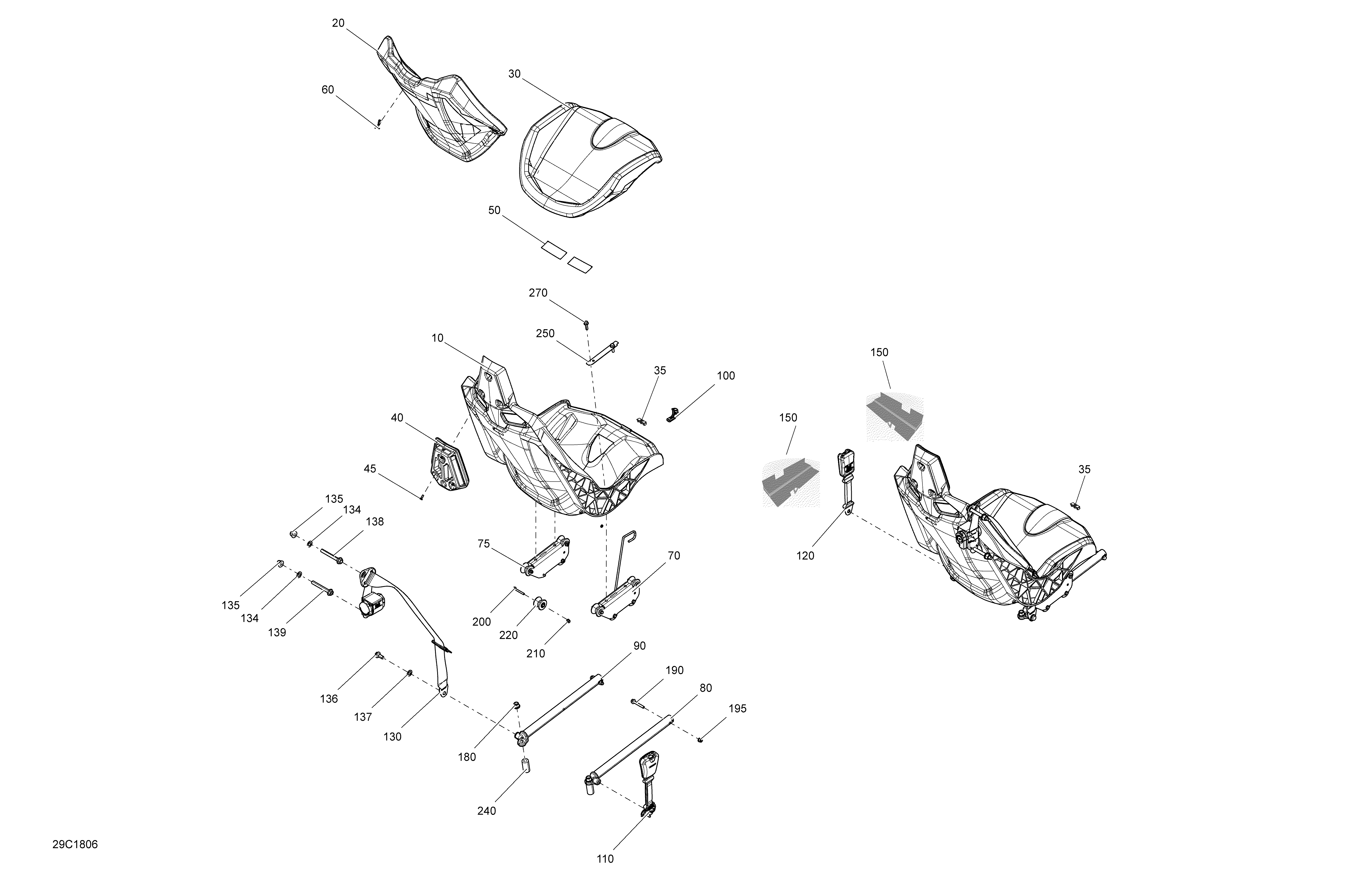

09- Seat - All Package для BRP 5- Maverick X3 Turbo R - STD_XDS DPS_XRS DPS - 2018
-
№АртикулНазвание
-
10708002065 LH, Kit Seat ShellLH, Kit Seat Shell
-
20708002121 Backrest Ass'y. Package STDBackrest Ass'y. Package STD
-
20708002380 Backrest Ass'y. Liquid Gold ModelsBackrest Ass'y. Liquid Gold Models
-
20708002393 Backrest Ass'y. Package XDSDPS Circuit Yellow ModelsBackrest Ass'y. Package XDSDPS Circuit Yellow Models
-
20708002676 Backrest. Platinum Silver Satin ModelsBackrest. Platinum Silver Satin Models
-
20708002676 Backrest. Triple Black ModelsBackrest. Triple Black Models
-
30708002124 Cushion Ass'y. Package STDCushion Ass'y. Package STD
-
30708002382 Cushion Ass'y. Liquid Gold ModelsCushion Ass'y. Liquid Gold Models
-
30708002396 Cushion Ass'y. Package XDSDPS Circuit Yellow ModelsCushion Ass'y. Package XDSDPS Circuit Yellow Models
-
30708002678 Seat Base Ass'y. Platinum Silver Satin ModelsSeat Base Ass'y. Platinum Silver Satin Models
-
30708002678 Seat Base Ass'y. Triple Black ModelsSeat Base Ass'y. Triple Black Models
-
35708002670 StopperStopper
-
40708002131 HeadrestHeadrest
-
45250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
50708002535 Velcro TapeVelcro Tape
-
60708002533 Button Head Tie RapButton Head Tie Rap
-
70703500997 TrolleyTrolley
-
75708002298 TrolleyTrolley
-
80708002725 Painted RailPainted Rail
-
90708002724 Painted RailPainted Rail
-
100708002655 HandleHandle
-
110708002714 Driver Buckle. Except Package XRSDPSDriver Buckle. Except Package XRSDPS
-
120708002385 Passenger Buckle. Except Package XRSDPSPassenger Buckle. Except Package XRSDPS
-
130708002388 Safety Belt Passenger. Package XRSDPSSafety Belt Passenger. Package XRSDPS
-
130708002654 Safety Belt Passenger. Except Package XRSDPSSafety Belt Passenger. Except Package XRSDPS
-
130708002387 Safety Belt Driver Side. Package XRSDPSSafety Belt Driver Side. Package XRSDPS
-
130708002811 Safety Belt Driver Side. Except Package XRSDPSSafety Belt Driver Side. Except Package XRSDPS
-
134250200102 Flat Washer M12Flat Washer M12
-
135233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
136708002504 Safety Belt screwSafety Belt screw
-
137708000891 Position WasherPosition Washer
-
138250000896 Hex. Flanged Screw M12 X 97.5. Except Package XRSDPSHex. Flanged Screw M12 X 97.5. Except Package XRSDPS
-
139250000876 Hex. Flanged Screw M12 X 95. Except Package XRSDPSHex. Flanged Screw M12 X 95. Except Package XRSDPS
-
180233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
190207685554 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
195233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
200207665054 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
210233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
220708002134 WheelWheel
-
240708002299 Rear BushingRear Bushing
-
250708002480 PlatePlate
-
270207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
