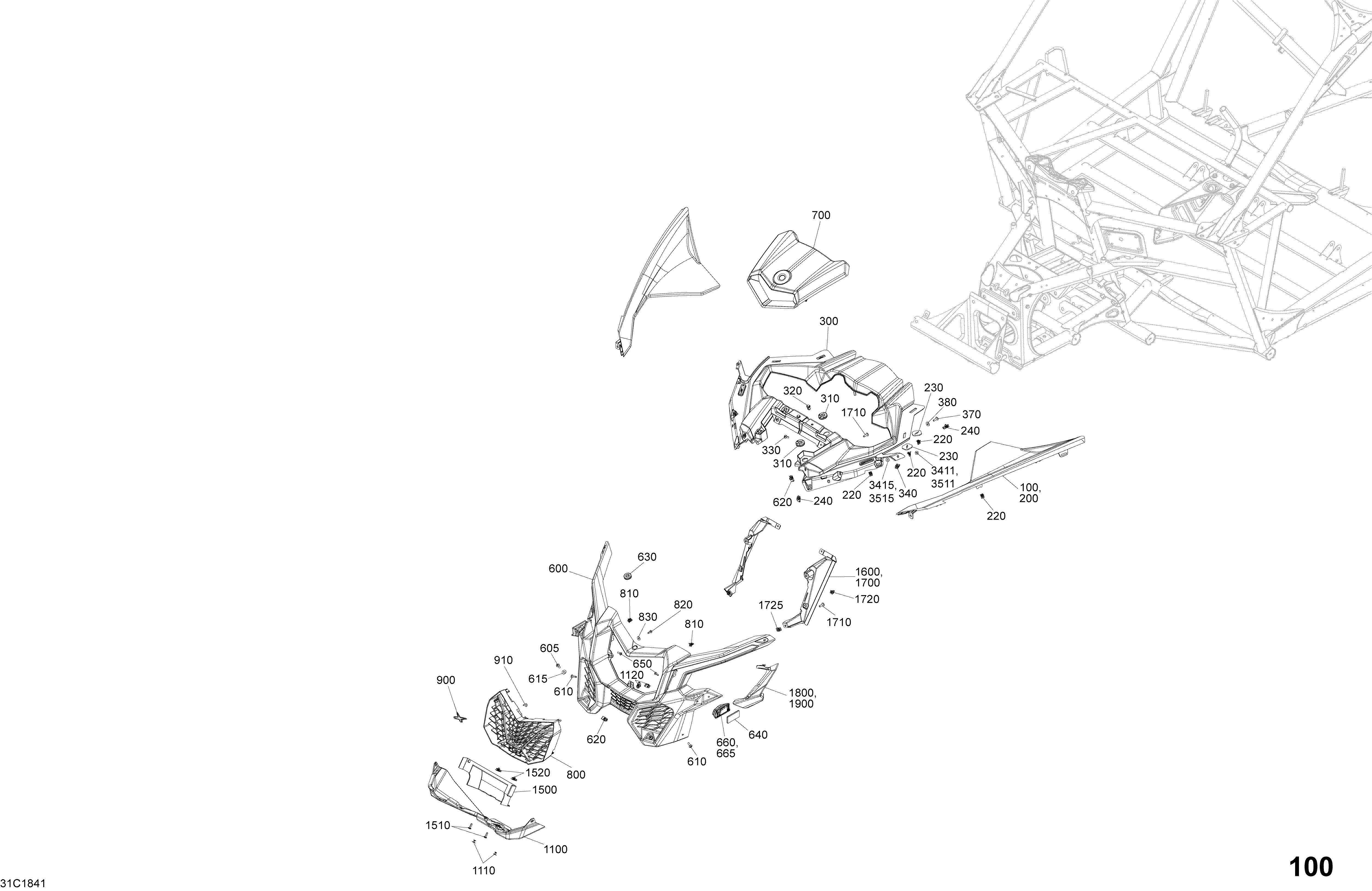

09- Body Parts - Triple Black - Package XDS DPS - Front Section для BRP 5- Maverick X3 Turbo R - STD_XDS DPS_XRS DPS - 2018
-
№АртикулНазвание
-
100705011087 Black LH Front FenderBlack LH Front Fender
-
200705011091 Black RH Front FenderBlack RH Front Fender
-
220517302785 ClipClip
-
230705003841 Support PlateSupport Plate
-
240250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
300705010671 Central HoodCentral Hood
-
310705010718 GrommetGrommet
-
320293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
330250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
340250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
370250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
380234062670 Flat Washer, StainlessFlat Washer, Stainless
-
600705009508 Front FaciaFront Facia
-
605250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
610250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
615234062670 Flat Washer, StainlessFlat Washer, Stainless
-
620250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
630517303756 GrommetGrommet
-
640520000271 Amber ReflectorAmber Reflector
-
650250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
660705011806 LH Reflector SupportLH Reflector Support
-
665705011814 RH Reflector SupportRH Reflector Support
-
700705011095 Black Facia coverBlack Facia cover
-
800705012694 Front Radiator GrillFront Radiator Grill
-
810517302785 ClipClip
-
820250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
830250200025 Washer M5Washer M5
-
900705010885 LogoLogo
-
910250000725 Screw M4 X 16Screw M4 X 16
-
1100705009978 Front DeflectorFront Deflector
-
1110293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
1120250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1500705010742 Lower Radiator deflectorLower Radiator deflector
-
1510250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1520250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1600705010626 LH Radiator deflectorLH Radiator deflector
-
1700705010627 RH Radiator deflectorRH Radiator deflector
-
1710250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1720517302785 ClipClip
-
1725250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1800705010628 LH Light CoverLH Light Cover
-
1900705010629 RH Light CoverRH Light Cover
-
3411250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3415233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
3511250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
3515233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
