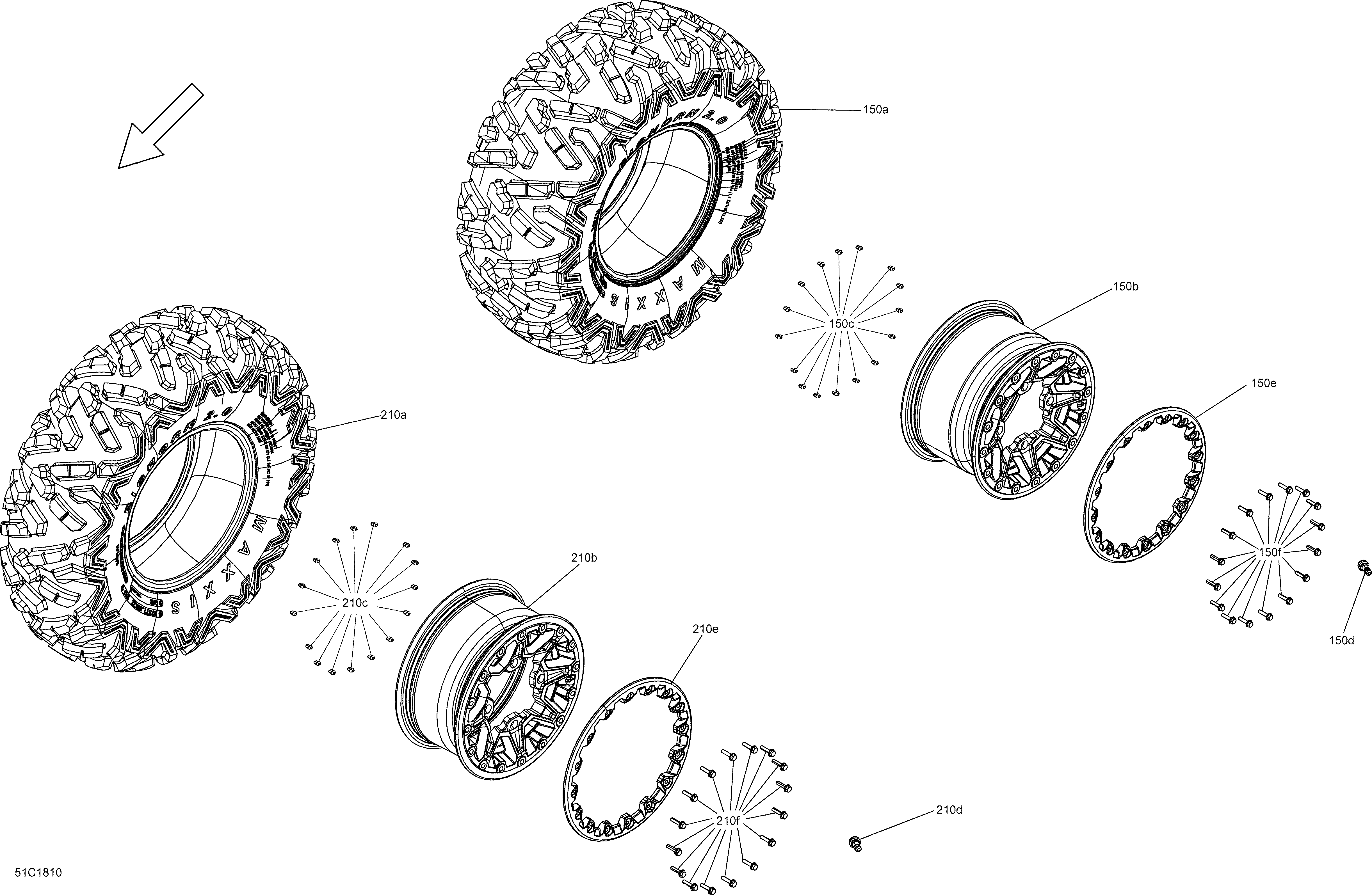

07- Wheels and Tires - Front and Rear - Package XDS DPS для BRP 5- Maverick X3 Turbo R - STD_XDS DPS_XRS DPS - 2018
-
№АртикулНазвание
-
210a705402081 Front Tire Maxxis 29X9X14. Package XDSDPSFront Tire Maxxis 29X9X14. Package XDSDPS
-
210b705401706 Black Rim. Package XDSDPSBlack Rim. Package XDSDPS
-
210c293450360 Insert. Package XDSDPSInsert. Package XDSDPS
-
210d705400193 Rim Valve With Cap. Package XDSDPSRim Valve With Cap. Package XDSDPS
-
210e705401709 Black Reinforcement Disk. Package XDSDPSBlack Reinforcement Disk. Package XDSDPS
-
210f250000893 Screw Flanger M8 X 25. Package XDSDPSScrew Flanger M8 X 25. Package XDSDPS
-
150a705502604 Rear Tire Maxxis 29X11X14Rear Tire Maxxis 29X11X14
-
150b705502286 Black RimBlack Rim
-
150c293450360 InsertInsert
-
150d705400193 Rim Valve With CapRim Valve With Cap
-
150e705401709 Black Reinforcement DiskBlack Reinforcement Disk
-
150f250000893 Screw Flanger M8 X 25Screw Flanger M8 X 25
