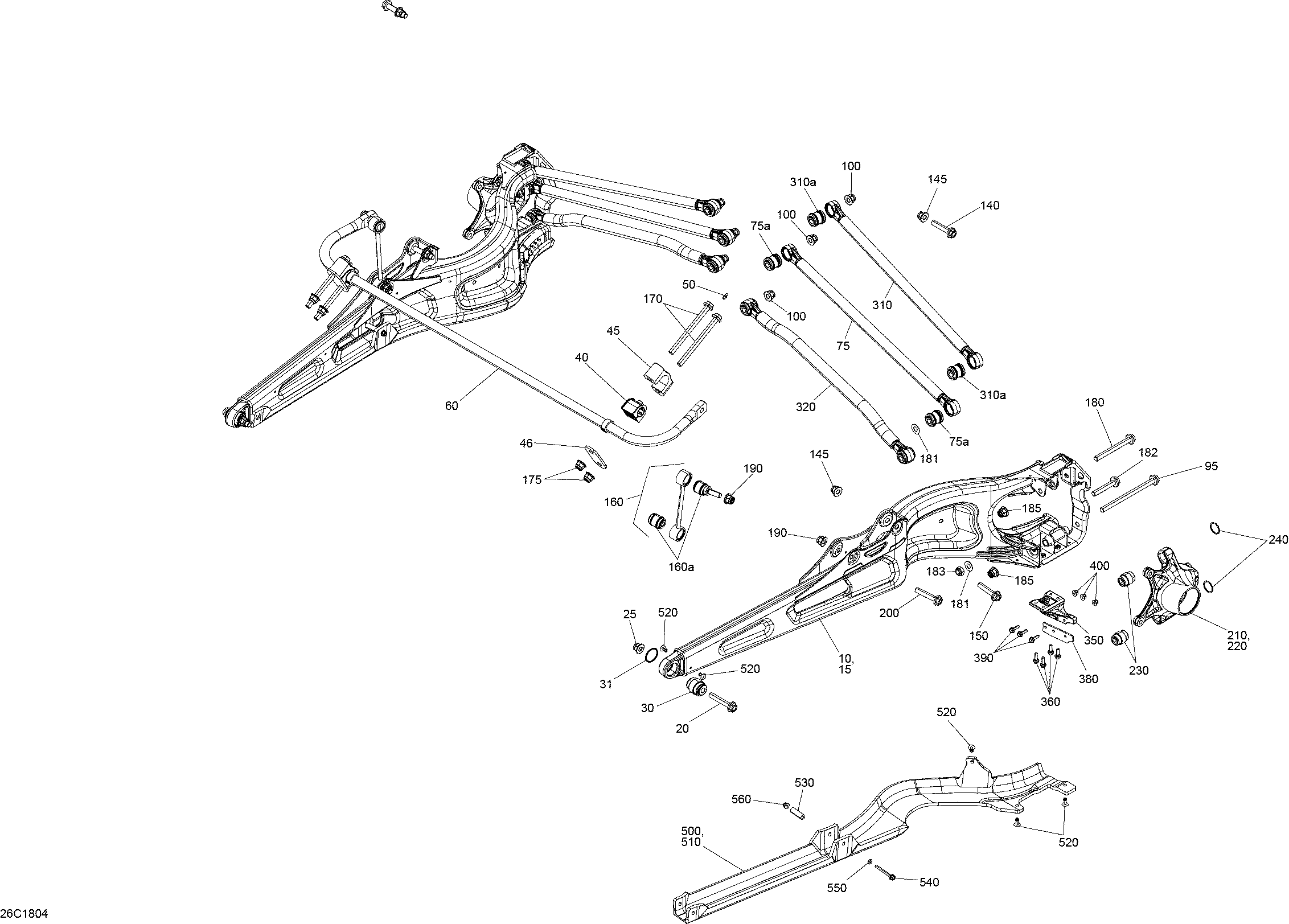

08- Rear Suspension - Package STD для BRP 1- Maverick X3 900HO - 2018
-
№АртикулНазвание
-
10706002567 Black, LH Rear ArmBlack, LH Rear Arm
-
15706002568 Black, RH Rear ArmBlack, RH Rear Arm
-
20250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
25233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
30706001373 Radial JointRadial Joint
-
31293370093 Retaining RingRetaining Ring
-
40706002302 CushionCushion
-
45706002303 ClampClamp
-
46706002357 Support PlateSupport Plate
-
50408200700 Grease FittingGrease Fitting
-
60706002100 Stabilizer Bar Ass'yStabilizer Bar Ass'y
-
75706002099 Central Control Link. Includes 75 to 75aCentral Control Link. Includes 75 to 75a
-
75a706002135 Radial JointRadial Joint
-
95250000862 Screw Flange M12 X 175Screw Flange M12 X 175
-
100233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
140250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
140250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
145233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
160706002304 Link Stabilizer Bar. Includes 160 to 160aLink Stabilizer Bar. Includes 160 to 160a
-
160a706002135 Radial JointRadial Joint
-
170250000892 Screw Flange M12 X 135Screw Flange M12 X 135
-
175233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
180250000860 Screw Flange M12 X 115Screw Flange M12 X 115
-
181250200086 Flat WasherFlat Washer
-
182250000858 Hexagonal Flanged Screw M12 X 70Hexagonal Flanged Screw M12 X 70
-
183232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
185233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
190233221466 Elastic Flange Nut M12Elastic Flange Nut M12
-
200250000857 Screw Flange M12 X 60Screw Flange M12 X 60
-
210706001960 LH KhuckleLH Khuckle
-
220706001961 RH KhuckleRH Khuckle
-
230706002317 Radial JointRadial Joint
-
240293370118 Retaining RingRetaining Ring
-
310706002136 Upper Control Link. Includes 310 to 310aUpper Control Link. Includes 310 to 310a
-
310a706002135 Radial JointRadial Joint
-
320706002139 Lower Control Link. Includes 320 to 320aLower Control Link. Includes 320 to 320a
-
320a706002135 Radial JointRadial Joint
-
350706002905 DeflectorDeflector
-
360207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
380706002851 Wear PlateWear Plate
-
390207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
400233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
