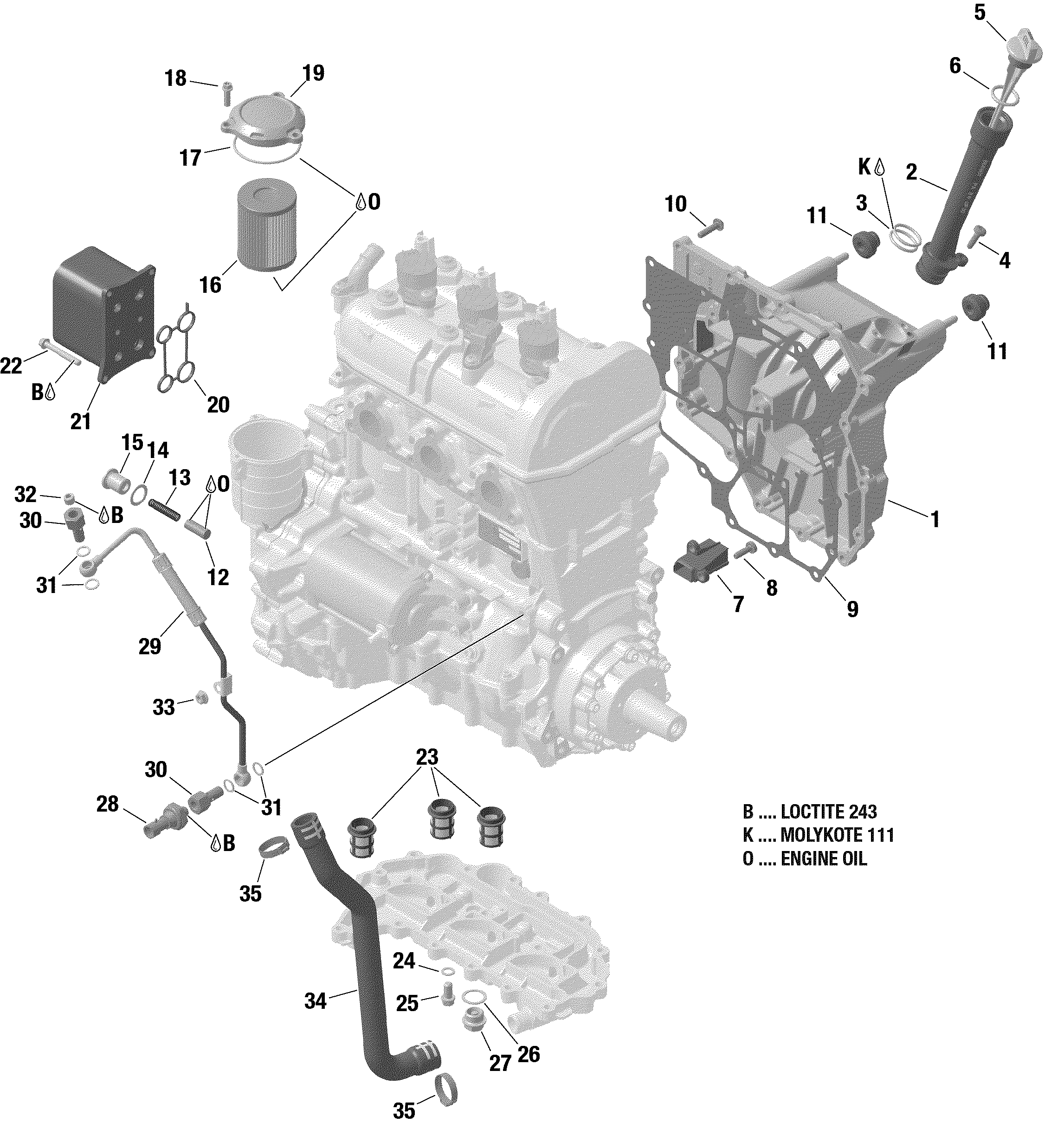

01- Engine Lubrication 900 HO для BRP 1- Maverick X3 900HO - 2018
-
№АртикулНазвание
-
1420656705 Oil Sump CoverOil Sump Cover
-
2420656901 Oil Filler TubeOil Filler Tube
-
3420430440 O-RingO-Ring
-
4420441383 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
5420856668 Oil DipstickOil Dipstick
-
6420631640 O-RingO-Ring
-
7420456260 Oil Suction PipeOil Suction Pipe
-
8420441383 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
9420431845 GasketGasket
-
10420841548 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
11420860150 Rubber GrommetRubber Grommet
-
12420256518 Pressure Regulating PistonPressure Regulating Piston
-
13420239445 SpringSpring
-
14420430623 Gasket RingGasket Ring
-
15420441373 Plug ScrewPlug Screw
-
16420956123 Oil FilterOil Filter
-
17420650500 O-RingO-Ring
-
18420440207 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
19420612132 Oil Filter CoverOil Filter Cover
-
20420431870 GasketGasket
-
21420656689 Oil Water Heat ExchangerOil Water Heat Exchanger
-
22420440324 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
23420656680 Oil SieveOil Sieve
-
24420950141 Sealing RingSealing Ring
-
25420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
26420552280 O-RingO-Ring
-
27420840277 Drain Plug M18 X 1.5Drain Plug M18 X 1.5
-
28420256915 Oil Pressure SwitchOil Pressure Switch
