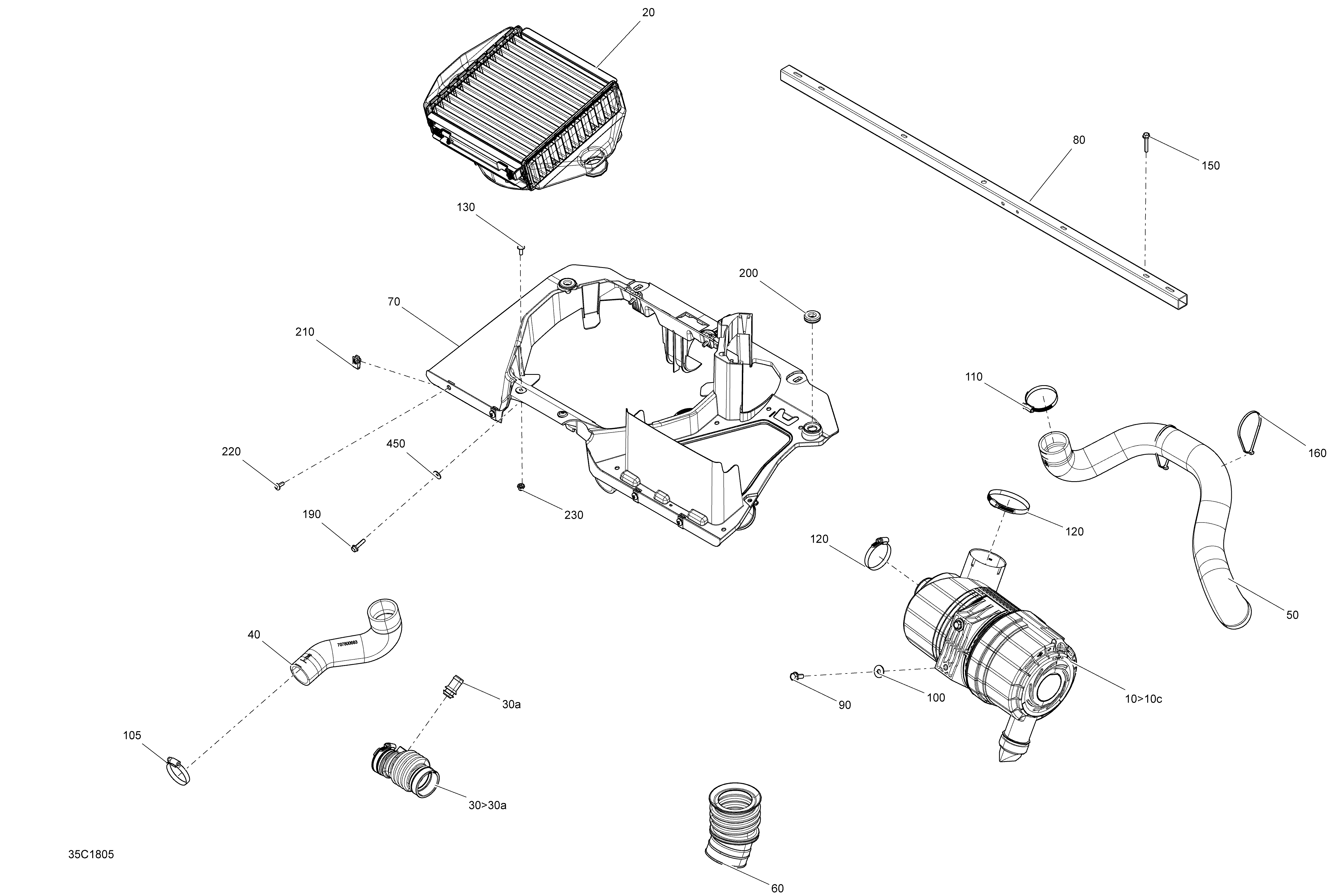

02- Air Intake для BRP 1- Maverick X3 900HO - 2018
-
№АртикулНазвание
-
10707800780 Airbox. Includes 10 to 10cAirbox. Includes 10 to 10c
-
10a715900528 Silencer-Air CoverSilencer-Air Cover
-
10b715900529 O-RingO-Ring
-
10c715900422 Air FilterAir Filter
-
20707800771 Protective GrillProtective Grill
-
60707800687 Air Intake FilterAir Intake Filter
-
70707800691 Radiator SupportRadiator Support
-
80707800785 Painted TubePainted Tube
-
90207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
100234082410 Flat Washer 8 mmFlat Washer 8 mm
-
110293650271 King Seal ClampKing Seal Clamp
-
120293650270 King Seal ClampKing Seal Clamp
-
130250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
150207563544 Screw H Flange S.Grip M6 X 35Screw H Flange S.Grip M6 X 35
-
190207562544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
200517303756 GrommetGrommet
-
210250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
220250000721 Torx Truss Screw M6 X 16Torx Truss Screw M6 X 16
-
230293450274 InsertInsert
-
450234062410 Flat Washer 6 mmFlat Washer 6 mm
-
488293750008 Tie-Rap 350 mmTie-Rap 350 mm
