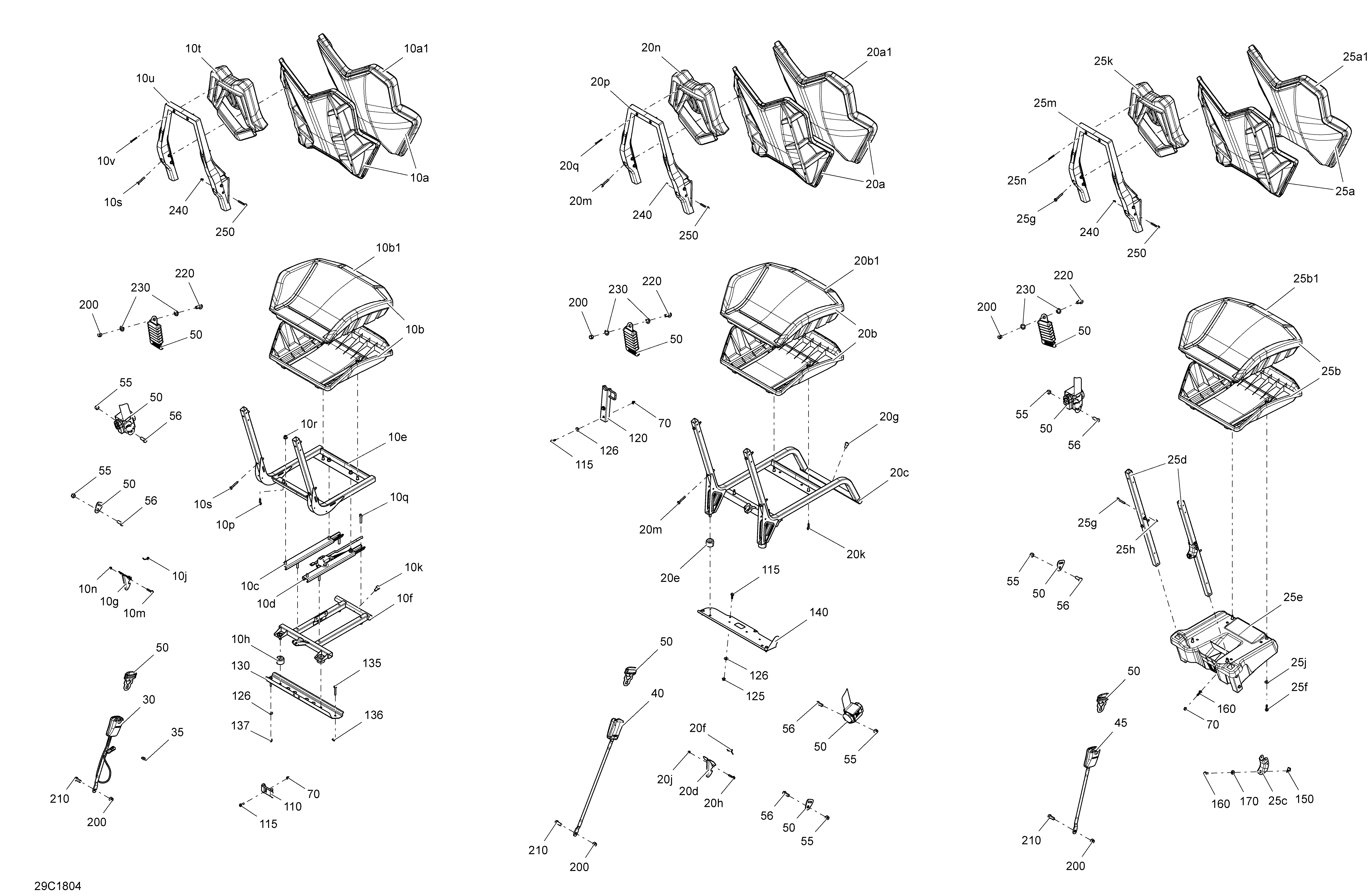

09- Seat Maverick MAX для BRP 2- Maverick MAX - 2018
-
№АртикулНазвание
-
10a708001316 Backrest Assembly. Package DPS MAX ModelsBackrest Assembly. Package DPS MAX Models
-
10a708002629 Backrest. Package XMR MAX ModelsBackrest. Package XMR MAX Models
-
10a1708000675 Backrest Cover. Package DPS MAX ModelsBackrest Cover. Package DPS MAX Models
-
10a1708002630 Cover. Package XMR MAX ModelsCover. Package XMR MAX Models
-
10b703500943 Cushion Ass'y. Package DPS MAX ModelsCushion Ass'y. Package DPS MAX Models
-
10b708002631 Cushion. Package XMR MAX ModelsCushion. Package XMR MAX Models
-
10b1708001103 Seat Cover. Package DPS MAX ModelsSeat Cover. Package DPS MAX Models
-
10b1708002632 Cover. Package XMR MAX ModelsCover. Package XMR MAX Models
-
10c708000848 LH RailLH Rail
-
10d708001739 RH RailRH Rail
-
10e708001356 Operator Seat FrameOperator Seat Frame
-
10f708001174 Seat MemberSeat Member
-
10g708001355 Seat LatchSeat Latch
-
10h708001671 Rubber BumperRubber Bumper
-
10j708000921 SpringSpring
-
10k205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
10m207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
10n232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
10p207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
10q205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
10r233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10s250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
10t708001074 Head RestHead Rest
-
10u708001245 Seat SupportSeat Support
-
10v250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
20a708001316 Backrest Assembly. Package DPS MAX ModelsBackrest Assembly. Package DPS MAX Models
-
20a1708000675 Backrest Cover. Package DPS MAX ModelsBackrest Cover. Package DPS MAX Models
-
20b703500943 Cushion Ass'y. Package DPS MAX ModelsCushion Ass'y. Package DPS MAX Models
-
20b1708001103 Seat Cover. Package DPS MAX ModelsSeat Cover. Package DPS MAX Models
-
20c708001357 Passenger Seat Frame. Package DPS MAX ModelsPassenger Seat Frame. Package DPS MAX Models
-
20d708001355 Seat Latch. Package DPS MAX ModelsSeat Latch. Package DPS MAX Models
-
20e708001671 Rubber Bumper. Package DPS MAX ModelsRubber Bumper. Package DPS MAX Models
-
20f708000921 Spring. Package DPS MAX ModelsSpring. Package DPS MAX Models
-
20g205501644 Socket Screw M10 X 16. Package DPS MAX ModelsSocket Screw M10 X 16. Package DPS MAX Models
-
20h207563034 Hex. Flanged Screw M6 X 30, Scotch Grip. Package DPS MAX ModelsHex. Flanged Screw M6 X 30, Scotch Grip. Package DPS MAX Models
-
20j232561600 Hex. Elastic Stop Nut M6. Package DPS MAX ModelsHex. Elastic Stop Nut M6. Package DPS MAX Models
-
20k207562544 Hex. Flanged Screw M6 X 25, Scotch Grip. Package DPS MAX ModelsHex. Flanged Screw M6 X 25, Scotch Grip. Package DPS MAX Models
-
20m250000672 Hex. Flange Screw M6. Package DPS MAX ModelsHex. Flange Screw M6. Package DPS MAX Models
-
20n708001074 Head Rest. Package DPS MAX ModelsHead Rest. Package DPS MAX Models
-
20p708001245 Seat Support. Package DPS MAX ModelsSeat Support. Package DPS MAX Models
-
20q250000897 Hex. Flange Screw K50 X 40. Package DPS MAX ModelsHex. Flange Screw K50 X 40. Package DPS MAX Models
-
25a708001316 Backrest Assembly. Package DPS MAX ModelsBackrest Assembly. Package DPS MAX Models
-
25a708002629 Backrest. Package XMR MAX ModelsBackrest. Package XMR MAX Models
-
25a1708000675 Backrest Cover. Package DPS MAX ModelsBackrest Cover. Package DPS MAX Models
-
25a1708002630 Cover. Package XMR MAX ModelsCover. Package XMR MAX Models
-
25b703500943 Cushion Ass'y. Package DPS MAX ModelsCushion Ass'y. Package DPS MAX Models
-
25b708002631 Cushion. Package XMR MAX ModelsCushion. Package XMR MAX Models
-
25b1708001103 Seat Cover. Package DPS MAX ModelsSeat Cover. Package DPS MAX Models
-
25b1708002632 Cover. Package XMR MAX ModelsCover. Package XMR MAX Models
-
25c708001474 Rear AnchorRear Anchor
-
25d708001476 Side TubeSide Tube
-
25e708001198 Seat SupportSeat Support
-
25f207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
25g250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
25h233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
25j234062670 Flat Washer, StainlessFlat Washer, Stainless
-
25k708001074 Head RestHead Rest
-
25m708001245 Seat SupportSeat Support
-
25n250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
30708002061 Driver Buckle SideDriver Buckle Side
-
35293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
40708002064 Passenger Buckle Side. MAX ModelsPassenger Buckle Side. MAX Models
-
45708002063 Rear Passenger Buckle Side. MAX ModelsRear Passenger Buckle Side. MAX Models
-
50708002644 Safety Belt. MAX ModelsSafety Belt. MAX Models
-
55250100135 Nylon Insert Hex. Lock Nut 7/16-20. MAX ModelsNylon Insert Hex. Lock Nut 7/16-20. MAX Models
-
56250000521 Hex. Cap Screw 7/16'' X 1''. MAX ModelsHex. Cap Screw 7/16'' X 1''. MAX Models
-
70250100199 Insert Half Hex Body M6 x 1.0. MAX ModelsInsert Half Hex Body M6 x 1.0. MAX Models
-
110708001212 Anchor. MAX ModelsAnchor. MAX Models
-
115207562054 Flanged Hex. Screw S.GRIP M6 X 20. MAX ModelsFlanged Hex. Screw S.GRIP M6 X 20. MAX Models
-
120708001213 Anchor. MAX ModelsAnchor. MAX Models
-
125233061414 Hex. Flanged Nut M6. MAX ModelsHex. Flanged Nut M6. MAX Models
-
126234062670 Flat Washer, Stainless. MAX ModelsFlat Washer, Stainless. MAX Models
-
130708001214 Seat Support. MAX ModelsSeat Support. MAX Models
-
135250000213 Hex. Flanged Screw M6 X 1.0 X 45. MAX ModelsHex. Flanged Screw M6 X 1.0 X 45. MAX Models
-
136250100171 Panel Nut M6 X 1.0. MAX ModelsPanel Nut M6 X 1.0. MAX Models
-
137233261414 Hex. Flanged Elastic Nut M6. MAX ModelsHex. Flanged Elastic Nut M6. MAX Models
-
140708001804 Support. MAX ModelsSupport. MAX Models
-
150250100171 Panel Nut M6 X 1.0. MAX ModelsPanel Nut M6 X 1.0. MAX Models
-
160207562054 Flanged Hex. Screw S.GRIP M6 X 20. MAX ModelsFlanged Hex. Screw S.GRIP M6 X 20. MAX Models
-
170234281474 Conical Spring Washer M8. MAX ModelsConical Spring Washer M8. MAX Models
-
200250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
210250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
220708000890 Safety Belt ScrewSafety Belt Screw
-
230708000891 Position WasherPosition Washer
-
240233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
250250000672 Hex. Flange Screw M6Hex. Flange Screw M6
