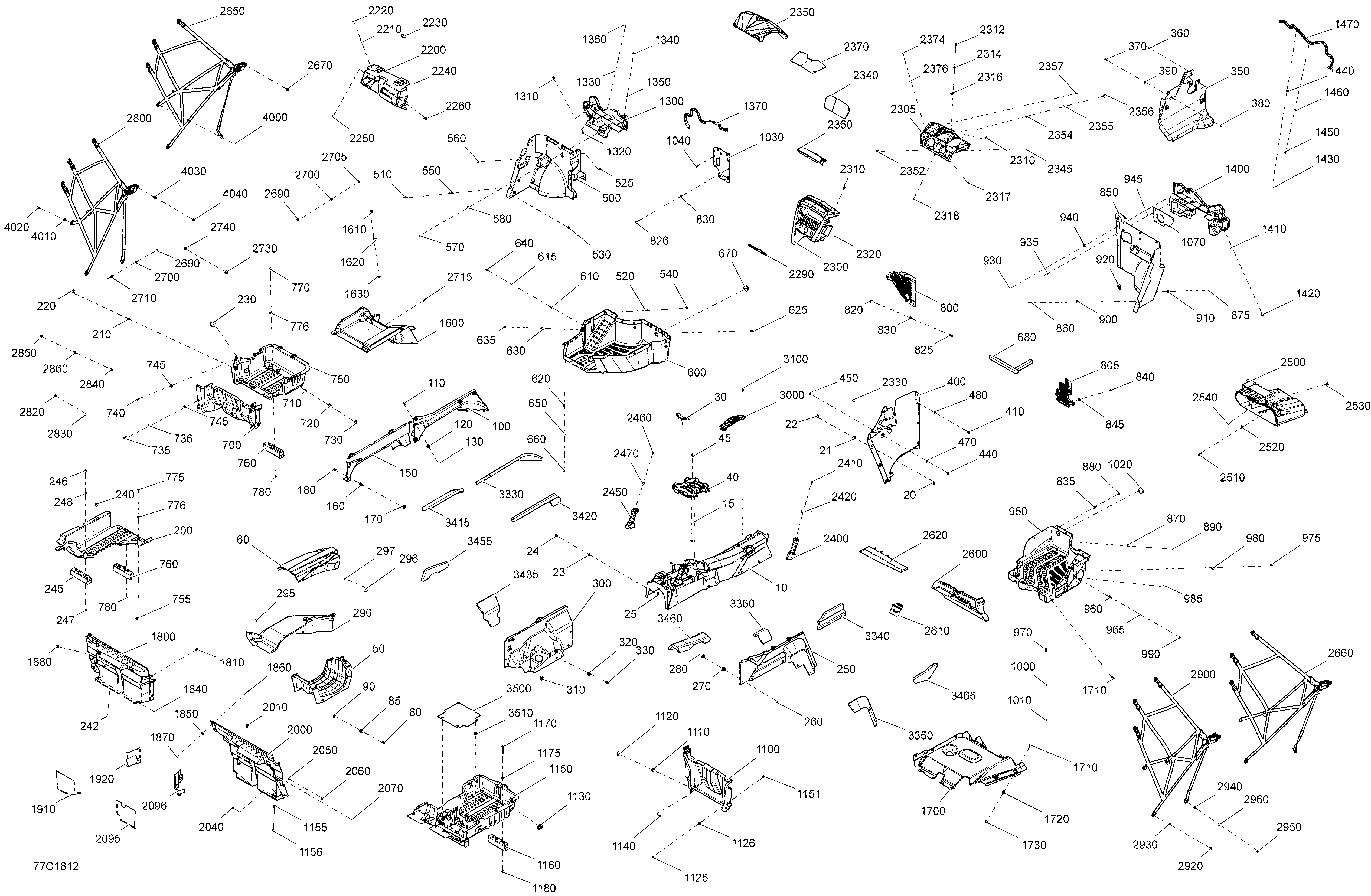

09- Cab Interior Maverick MAX - Package XMR для BRP 2- Maverick MAX - 2018

  • №
    Артикул
    Название
  • 10
    715003370 Front Console Kit
    Front Console Kit
  • 15
    732610072 Push Nut
    Push Nut
  • 20
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 21
    707900133 Insert
    Insert
  • 22
    503189273 Washer
    Washer
  • 23
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 24
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 25
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 30
    707900036 Cup Retainer
    Cup Retainer
  • 40
    707900100 Cup Holder
    Cup Holder
  • 45
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 50
    707900468 Rear Console
    Rear Console
  • 60
    707900229 Rear Console Cover Kit
    Rear Console Cover Kit
  • 80
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 85
    707900133 Insert
    Insert
  • 90
    503189273 Washer
    Washer
  • 100
    707900001 LH Side Console
    LH Side Console
  • 110
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 120
    707900133 Insert
    Insert
  • 130
    503189273 Washer
    Washer
  • 150
    707900633 Rear Left Dash
    Rear Left Dash
  • 160
    707900133 Insert
    Insert
  • 170
    503189273 Washer
    Washer
  • 180
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 200
    707900387 Under cover
    Under cover
  • 210
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 220
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 230
    293250242 Rubber Cover
    Rubber Cover
  • 240
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 242
    506151252 Washer
    Washer
  • 245
    707900099 Support Plate
    Support Plate
  • 246
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 247
    293450274 Insert
    Insert
  • 248
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 250
    707900002 RH Side Console
    RH Side Console
  • 260
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 270
    707900133 Insert
    Insert
  • 280
    503189273 Washer
    Washer
  • 290
    707900388 Rear Floor cap
    Rear Floor cap
  • 295
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 296
    705205445 Insert Support
    Insert Support
  • 297
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 300
    707900080 RH Rear Console Panel
    RH Rear Console Panel
  • 310
    707900133 Insert
    Insert
  • 320
    503189273 Washer
    Washer
  • 330
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 350
    707900193 Front Side Dash Panel
    Front Side Dash Panel
  • 360
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 370
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 380
    293450274 Insert
    Insert
  • 390
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 400
    707900203 RH Fixe Side Console
    RH Fixe Side Console
  • 410
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 440
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 450
    293450274 Insert
    Insert
  • 470
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 480
    506151252 Washer
    Washer
  • 500
    707900175 LH Front Upper Floor
    LH Front Upper Floor
  • 510
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 520
    250000712 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 525
    250000758 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 530
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 540
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 550
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 560
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 570
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 580
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 600
    707900022 LH Lower Floor
    LH Lower Floor
  • 610
    250000712 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 615
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 620
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 625
    250000807 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 630
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 635
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 640
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 650
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 660
    293450274 Insert
    Insert
  • 670
    293250242 Rubber Cover
    Rubber Cover
  • 680
    293250381 Seal Tray
    Seal Tray
  • 700
    707900082 LH Rear Upper Floor Cover
    LH Rear Upper Floor Cover
  • 710
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 720
    707900133 Insert
    Insert
  • 730
    503189273 Washer
    Washer
  • 735
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 736
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 740
    250000758 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 745
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 750
    707900331 Rear Floor
    Rear Floor
  • 755
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 760
    707900099 Support Plate
    Support Plate
  • 770
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 775
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 776
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 780
    293450274 Insert
    Insert
  • 800
    707900178 Grill
    Grill
  • 805
    707900180 Grill
    Grill
  • 820
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 825
    250000843 Torx Truss Screw M6 X 30
    Torx Truss Screw M6 X 30
  • 826
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 830
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 835
    250000843 Torx Truss Screw M6 X 30
    Torx Truss Screw M6 X 30
  • 840
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 845
    250200025 Washer M5
    Washer M5
  • 850
    707900004 RH Front Floor
    RH Front Floor
  • 860
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 870
    250000712 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 875
    250000758 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 880
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 890
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 900
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 910
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 920
    705003668 Oblong Grommet
    Oblong Grommet
  • 930
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 935
    250000724 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 940
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 945
    233251494 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
  • 950
    707900023 RH Lower Floor
    RH Lower Floor
  • 960
    250000712 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 965
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 970
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 975
    250000807 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 980
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 985
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 990
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 1000
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 1010
    293450274 Insert
    Insert
  • 1020
    293250242 Rubber Cover
    Rubber Cover
  • 1030
    707900204 Deflector
    Deflector
  • 1040
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 1070
    707900217 Hose Support
    Hose Support
  • 1100
    707900083 Seat Cover
    Seat Cover
  • 1110
    707900133 Insert
    Insert
  • 1120
    503189273 Washer
    Washer
  • 1125
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 1126
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 1130
    293250242 Rubber Cover
    Rubber Cover
  • 1140
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 1150
    707900670 RH Lower Rear Floor
    RH Lower Rear Floor
  • 1151
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 1155
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 1156
    506151252 Washer
    Washer
  • 1160
    707900099 Support Plate
    Support Plate
  • 1170
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 1175
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 1180
    293450274 Insert
    Insert
  • 1300
    707900561 Floor Support LH
    Floor Support LH
  • 1310
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 1320
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 1330
    250000760 Torx Screw Truss Head PT.K50 X 20
    Torx Screw Truss Head PT.K50 X 20
  • 1340
    224060201 Flat Washer
    Flat Washer
  • 1350
    250000760 Torx Screw Truss Head PT.K50 X 20
    Torx Screw Truss Head PT.K50 X 20
  • 1360
    224060201 Flat Washer
    Flat Washer
  • 1370
    293200093 Neoprene Seal
    Neoprene Seal
  • 1400
    707900563 Floor Support RH
    Floor Support RH
  • 1410
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 1420
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 1430
    250000760 Torx Screw Truss Head PT.K50 X 20
    Torx Screw Truss Head PT.K50 X 20
  • 1440
    224060201 Flat Washer
    Flat Washer
  • 1450
    250000760 Torx Screw Truss Head PT.K50 X 20
    Torx Screw Truss Head PT.K50 X 20
  • 1460
    224060201 Flat Washer
    Flat Washer
  • 1470
    293200093 Neoprene Seal
    Neoprene Seal
  • 1600
    707900130 Under Seat Cover
    Under Seat Cover
  • 1610
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 1620
    707900133 Insert
    Insert
  • 1630
    503189273 Washer
    Washer
  • 1700
    707900006 RH Under Seat Plate
    RH Under Seat Plate
  • 1710
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 1720
    707900133 Insert
    Insert
  • 1730
    503189273 Washer
    Washer
  • 1800
    707900220 LH Rear Deflector
    LH Rear Deflector
  • 1810
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 1840
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 1850
    250200040 Flat Washer
    Flat Washer
  • 1860
    250000712 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 1870
    233261494 Hex. Elastic Flanged Nut M6
    Hex. Elastic Flanged Nut M6
  • 1880
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 1910
    707900182 Heat Shield
    Heat Shield
  • 1920
    707900183 Heat Shield
    Heat Shield
  • 2000
    707900219 RH Rear Deflector
    RH Rear Deflector
  • 2010
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 2040
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 2050
    250000760 Torx Screw Truss Head PT.K50 X 20
    Torx Screw Truss Head PT.K50 X 20
  • 2060
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2070
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 2095
    707900167 Heat Shield
    Heat Shield
  • 2096
    707900184 Heat Shield
    Heat Shield
  • 2200
    715001250 Dashboard Ass'y
    Dashboard Ass'y
  • 2210
    250000760 Torx Screw Truss Head PT.K50 X 20
    Torx Screw Truss Head PT.K50 X 20
  • 2220
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2230
    705003841 Support Plate
    Support Plate
  • 2240
    517302785 Clip
    Clip
  • 2250
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 2260
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2290
    271000110 Protection Trim
    Protection Trim
  • 2300
    707900065 Lower Central Dashboard Ass'y
    Lower Central Dashboard Ass'y
  • 2305
    707900199 Upper Central Console Ass'y
    Upper Central Console Ass'y
  • 2310
    250000762 Torx Screw M5 X 25
    Torx Screw M5 X 25
  • 2312
    210262050 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 2314
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2316
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2317
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 2318
    732610072 Push Nut
    Push Nut
  • 2320
    250000958 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 2330
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 2340
    707900104 GPS Cover And Radio Control
    GPS Cover And Radio Control
  • 2345
    250000759 Torx-Truss Pt K40 X 16
    Torx-Truss Pt K40 X 16
  • 2350
    707900600 Dash Cap
    Dash Cap
  • 2352
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 2354
    210262550 Hex. Flanged Forming Screw M6 X 25
    Hex. Flanged Forming Screw M6 X 25
  • 2355
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2356
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2357
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 2360
    707900215 Central Filter
    Central Filter
  • 2370
    707900216 Dashboard Cover
    Dashboard Cover
  • 2374
    210262050 Washer Head Hexagonal Screw
    Washer Head Hexagonal Screw
  • 2376
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2400
    707900011 Passenger Handle
    Passenger Handle
  • 2410
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 2420
    707900048 Connector Tube
    Connector Tube
  • 2450
    707900103 Handle
    Handle
  • 2460
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 2470
    707900048 Connector Tube
    Connector Tube
  • 2500
    707900046 Storage Bin
    Storage Bin
  • 2510
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 2520
    250000957 Extruded Panel Nut M6 X 1.0
    Extruded Panel Nut M6 X 1.0
  • 2530
    414859400 Cap
    Cap
  • 2540
    293830005 Rubber Bumper
    Rubber Bumper
  • 2600
    707900221 Luggage Cover Kit
    Luggage Cover Kit
  • 2610
    707900031 Latch
    Latch
  • 2620
    707900062 Trim Glove Box
    Trim Glove Box
  • 2650
    707900237 Front LH Safety Net
    Front LH Safety Net
  • 2660
    707900238 Front RH Safety Net
    Front RH Safety Net
  • 2670
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 2690
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 2700
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 2705
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2710
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 2715
    250000758 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 2730
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 2740
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 2800
    707900239 Rear LH Safety Net
    Rear LH Safety Net
  • 2820
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 2830
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 2840
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 2850
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 2860
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 2900
    707900240 Rear RH Safety Net
    Rear RH Safety Net
  • 2920
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 2930
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 2940
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 2950
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 2960
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 3000
    707900088 Shift Lever Indicator
    Shift Lever Indicator
  • 3100
    250000728 Torx Screw M6 X 25
    Torx Screw M6 X 25
  • 3330
    707900621 Left Lower Lateral Console Foam
    Left Lower Lateral Console Foam
  • 3340
    707900622 Right Lateral Console Foam
    Right Lateral Console Foam
  • 3350
    707900623 Right Lateral Console Foam
    Right Lateral Console Foam
  • 3360
    707900624 Right Lateral Console Foam
    Right Lateral Console Foam
  • 3415
    707900625 Rear Lateral Foam
    Rear Lateral Foam
  • 3420
    707900626 Rear Lateral Foam
    Rear Lateral Foam
  • 3435
    707900627 Rear Lateral Foam
    Rear Lateral Foam
  • 3455
    707900628 Front Central Foam
    Front Central Foam
  • 3460
    707900629 Front Central Foam
    Front Central Foam
  • 3465
    707900630 Front Central Foam
    Front Central Foam
  • 3500
    707900163 Battery Cover
    Battery Cover
  • 3510
    705003264 Grommet
    Grommet
  • 4000
    250000742 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 4010
    250200040 Flat Washer
    Flat Washer
  • 4020
    207562054 Flanged Hex. Screw S.GRIP M6 X 20
    Flanged Hex. Screw S.GRIP M6 X 20
  • 4030
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 4040
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8

Все узлы модели:
