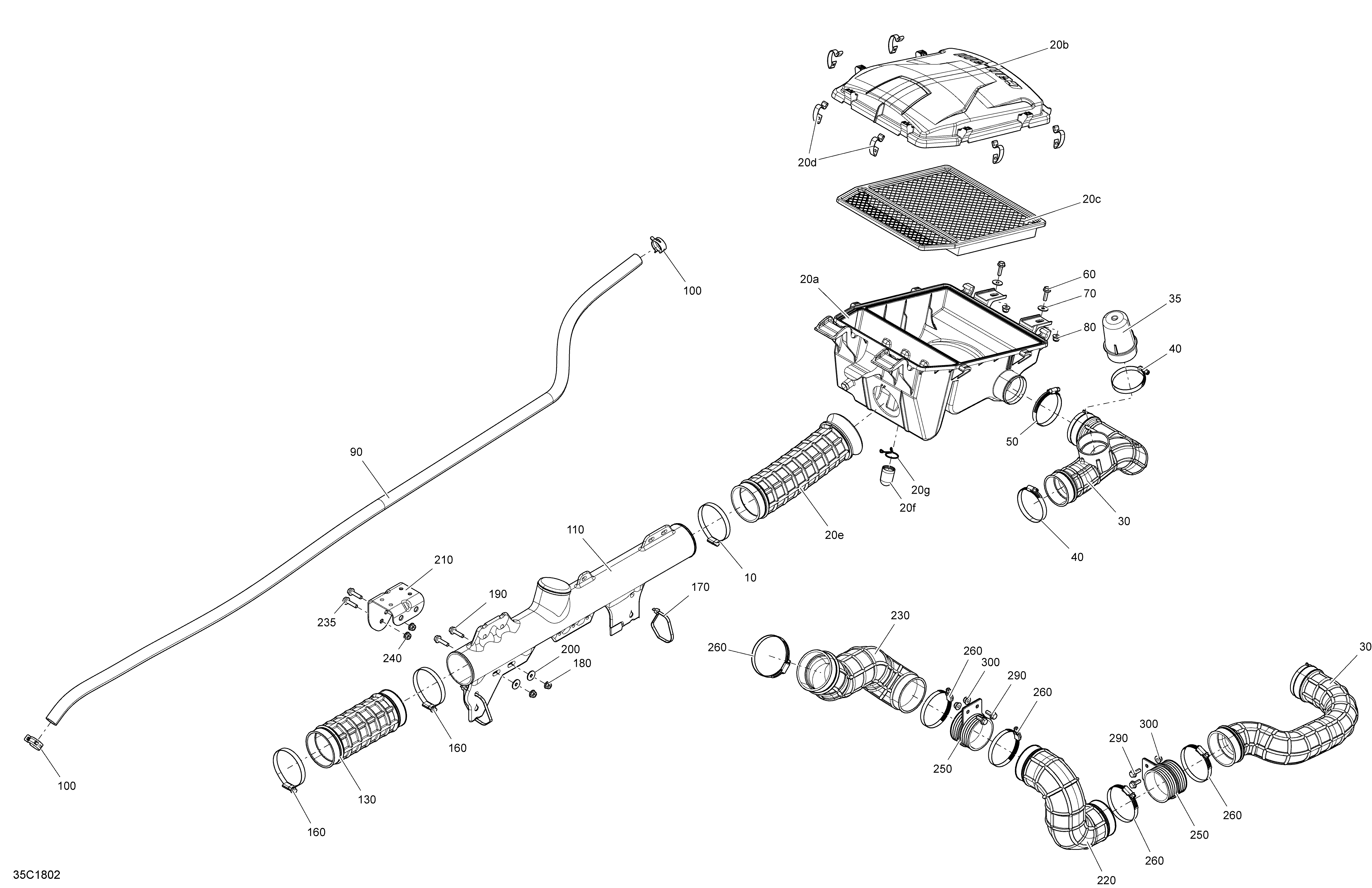

02- Air Intake Maverick Max для BRP 2- Maverick MAX - 2018
-
№АртикулНазвание
-
10293650091 Norma ClampNorma Clamp
-
20a707800517 Air Intake Silencer BaseAir Intake Silencer Base
-
20b707800326 Air Intake Silencer CoverAir Intake Silencer Cover
-
20c707800327 Air FilterAir Filter
-
20d707800249 Cover BracketCover Bracket
-
20e707800329 Intake AdaptorIntake Adaptor
-
20f707800080 Drain TubeDrain Tube
-
20g707800278 Retainer ClipRetainer Clip
-
30707800532 Intake AdaptorIntake Adaptor
-
30707800576 Intake Adaptor. XMRIntake Adaptor. XMR
-
35707800533 Intake Adaptor TankIntake Adaptor Tank
-
40293650079 Norma ClampNorma Clamp
-
50293650079 Norma ClampNorma Clamp
-
60207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
70250200082 Flat WasherFlat Washer
-
80233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
90A707800411 Hose 15.88 mmHose 15.88 mm
-
100293650213 Norma Spring ClampNorma Spring Clamp
-
110707800515 Intake AdaptorIntake Adaptor
-
130707800541 Intake AdaptorIntake Adaptor
-
160293650091 Norma ClampNorma Clamp
-
180233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
190207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
200250200082 Flat WasherFlat Washer
-
210707800560 Rear SupportRear Support
-
220707800577 Air Intake. XMRAir Intake. XMR
-
230707800578 Air Intake. XMRAir Intake. XMR
-
235207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
240233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
250707001383 Adaptor. XMRAdaptor. XMR
-
260293650091 Norma Clamp. XMRNorma Clamp. XMR
-
290207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. XMRHex. Flanged Screw M6 X 16, Scotch Grip. XMR
-
300233061414 Hex. Flanged Nut M6. XMRHex. Flanged Nut M6. XMR
