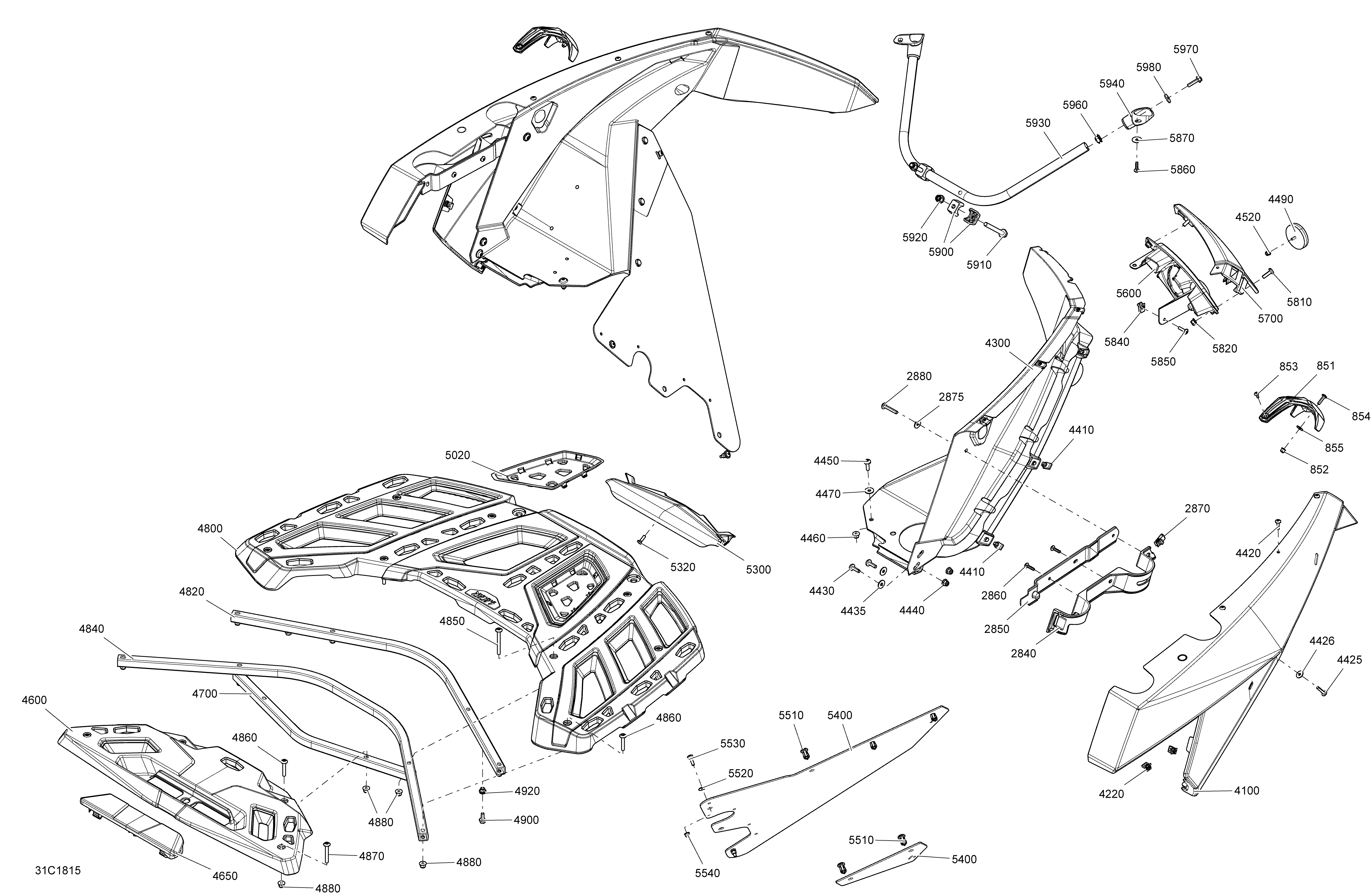

09- Body Rear Part Maverick - Gulfstream Blue Models для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
2840705007918 LH Rear Fender SupportLH Rear Fender Support
-
2840705007919 RH Rear Fender SupportRH Rear Fender Support
-
2850705007917 Support PlateSupport Plate
-
2860250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
2870250000957 Extruded Panel Nut M6 X 1.0Extruded Panel Nut M6 X 1.0
-
2875234062670 Flat Washer, StainlessFlat Washer, Stainless
-
2880250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
4100705012262 Gulfstream Blue Left Rear Fender . Gulfstream Blue ModelsGulfstream Blue Left Rear Fender . Gulfstream Blue Models
-
4100705012263 Gulfstream Blue Right Rear Fender. Gulfstream Blue ModelsGulfstream Blue Right Rear Fender. Gulfstream Blue Models
-
4220517302785 ClipClip
-
4300705009548 LH Inner FenderLH Inner Fender
-
4300705009549 RH Inner FenderRH Inner Fender
-
4410250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
4420250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
4425250000762 Torx Screw M5 X 25Torx Screw M5 X 25
-
4426250200025 Washer M5Washer M5
-
4430250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
4435234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4440233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4450250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
4460233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
4470234062670 Flat Washer, StainlessFlat Washer, Stainless
-
4490705011221 Red ReflectorRed Reflector
-
4520233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
4600705006128 Bagage Central RackBagage Central Rack
-
4650705006132 Central Bagage Rack CapCentral Bagage Rack Cap
-
4700705006279 Bagage Rack TubeBagage Rack Tube
-
4800705003559 Lugage RackLugage Rack
-
4820705005469 TubeTube
-
4840705005470 TubeTube
-
4850250000648 Torx Screw M6 X 60Torx Screw M6 X 60
-
4860250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
4870250000647 Torx Screw M6 X 45Torx Screw M6 X 45
-
4880233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
4900207561634 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
4920293450274 InsertInsert
-
5020705006713 LH Bagage Rack CoverLH Bagage Rack Cover
-
5020705006714 RH Bagage Rack CoverRH Bagage Rack Cover
-
5300705005994 LOGO SupportLOGO Support
-
5320250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
5400705007828 DeflectorDeflector
-
5510293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5520250200025 Washer M5Washer M5
-
5530250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
5540233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
5600705004731 LH Rear FaciaLH Rear Facia
-
5600705004732 RH Rear FaciaRH Rear Facia
-
5700705012264 Gulf Stream Blue Left Rear Facia Trim . Gulfstream Blue ModelsGulf Stream Blue Left Rear Facia Trim . Gulfstream Blue Models
-
5700705012265 Gulf Stream Blue Right Rear Facia TR. Gulfstream Blue ModelsGulf Stream Blue Right Rear Facia TR. Gulfstream Blue Models
-
5810250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
5820233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
5840250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
5850250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
5860250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
5870224060201 Flat WasherFlat Washer
-
5900705007044 Rear Support Facia ClipRear Support Facia Clip
-
5910207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
5920233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
5930705007299 Body TubeBody Tube
-
5940705007045 LH Rear Facia SupportLH Rear Facia Support
-
5940705007046 RH Rear Facia SupportRH Rear Facia Support
-
5960705007047 Tube ConnectorTube Connector
-
5970207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
5980224061201 Flat WasherFlat Washer
