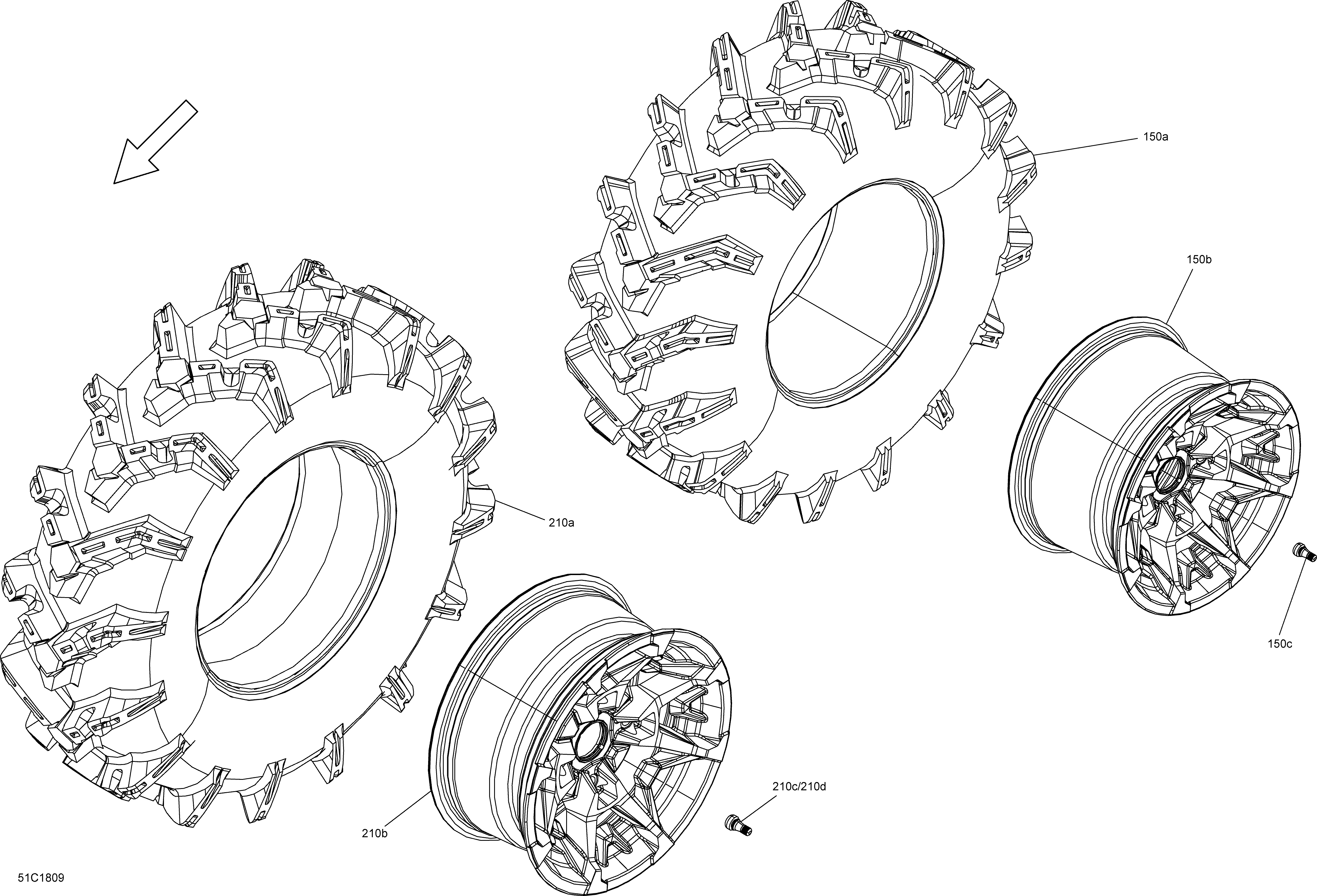

07- Wheels And Tires Maverick - Package XMR для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
210a705402096 Front Tire Carlstar 30X9X14Front Tire Carlstar 30X9X14
-
210b705401848 Black RimBlack Rim
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210d705401007 Rim ValveRim Valve
-
150a705502621 Rear Tire Carlstar 30X11x14Rear Tire Carlstar 30X11x14
-
150b705502397 Rear RimRear Rim
-
150c705400193 Rim Valve With CapRim Valve With Cap
