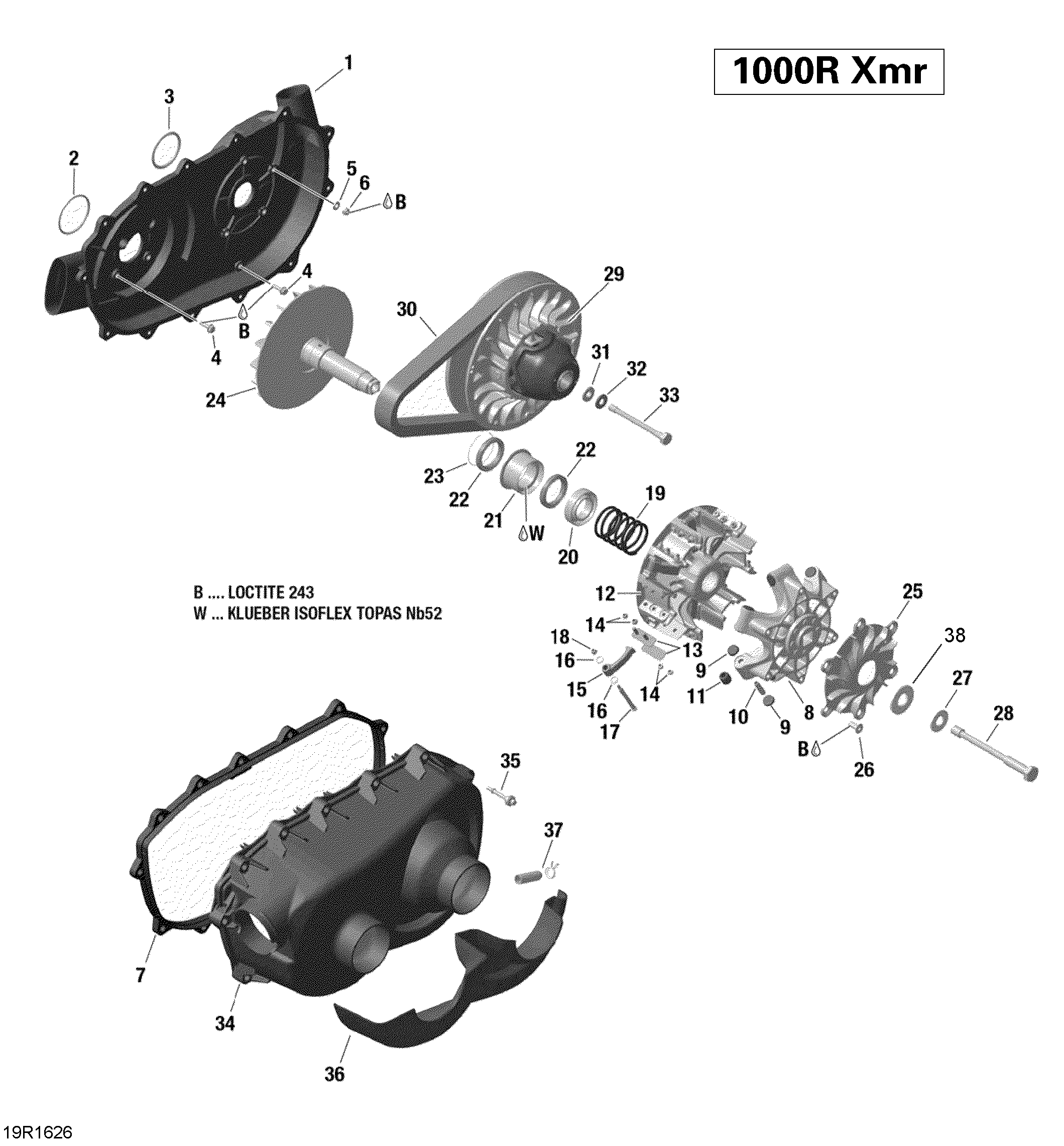

05- Transmission - XMR для BRP 1- Maverick - 2018
‹-+›
-
№АртикулНазвание
-
1420612304 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5224061121 Flat WasherFlat Washer
-
6232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
7420430126 GasketGasket
-
8420280663 Governor Cup Ass'yGovernor Cup Ass'y
-
9420281296 Slider Shoe SetSlider Shoe Set
-
10417223257 Roller AxleRoller Axle
-
11420229999 RollerRoller
-
12-14420280462 Outher Haft Ass'y. Includes 12 to 14Outher Haft Ass'y. Includes 12 to 14
-
13420651763 Slide PlateSlide Plate
-
14232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
15a420248608 Centrifugal Lever Kit (Set Of 6). Includes 15a to 18Centrifugal Lever Kit (Set Of 6). Includes 15a to 18
-
19420238615 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
20420627577 Spring SeatSpring Seat
-
21420257191 Drive Pulley ClutchDrive Pulley Clutch
-
22420632377 Ball BearingBall Bearing
-
23420245951 Retaining RingRetaining Ring
-
24420280577 Inner HalfInner Half
-
28703500842 Clutch Bolt Repair KitClutch Bolt Repair Kit
-
30715900212 V-BeltV-Belt
-
31420427770 Thrust WasherThrust Washer
-
32420445441 Spring WasherSpring Washer
-
33420441485 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
34420212282 Variator Cover. Includes 38Variator Cover. Includes 38
-
35420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
36715900358 Heat Protection MatHeat Protection Mat
-
37707001179 Drain Plug KitDrain Plug Kit
-
38420282826 Spring WasherSpring Washer
