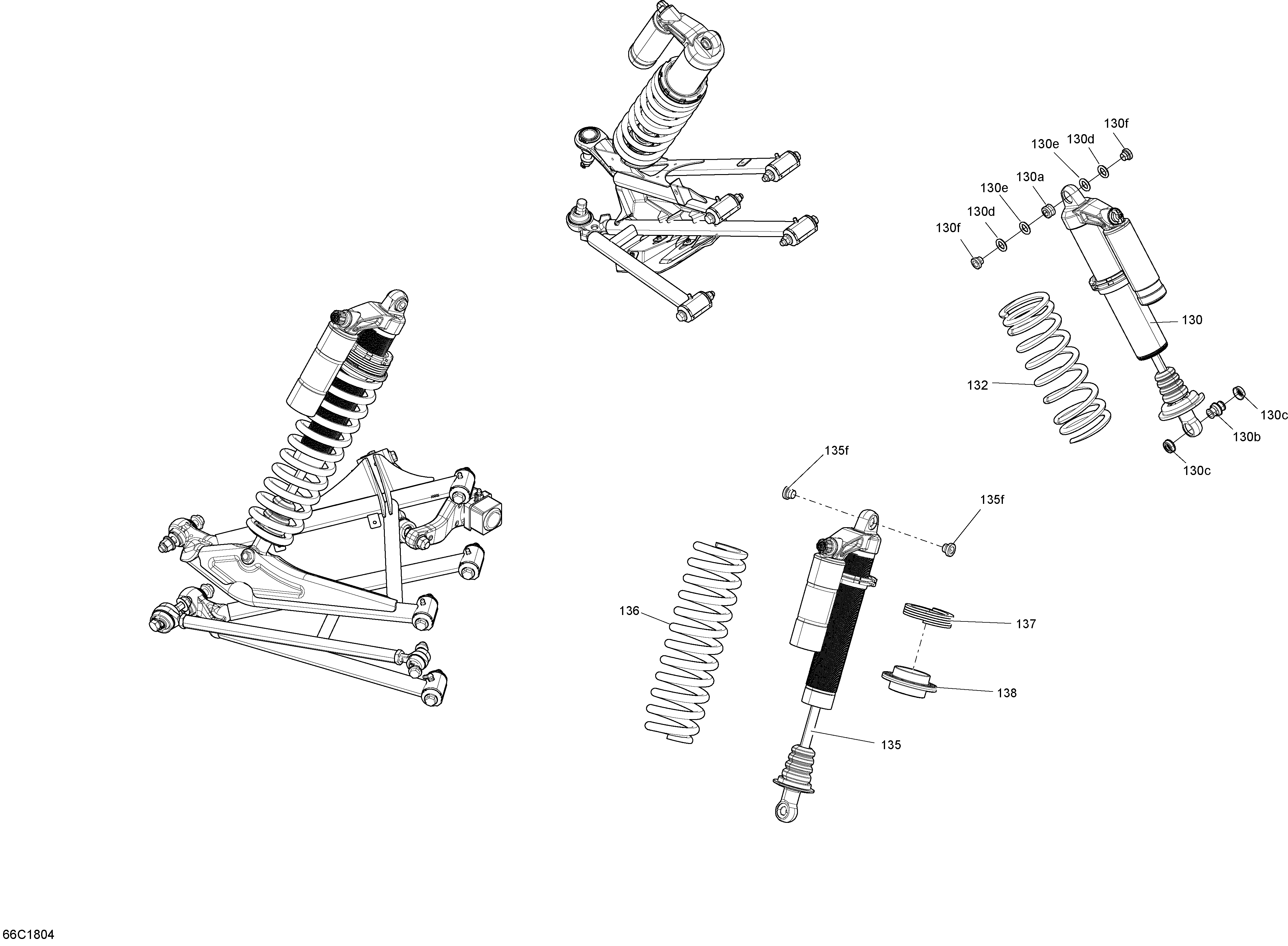

07- Shocks Maverick - Package XC для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
130706202249 Front Shock. Includes 130 to 130fFront Shock. Includes 130 to 130f
-
130a715900266 Spherical BearingSpherical Bearing
-
130b715900330 Spherical BearingSpherical Bearing
-
130c715900331 ProtectorProtector
-
130d715900268 O-Ring BushingO-Ring Bushing
-
130e715900252 Retaining RingRetaining Ring
-
130f715900267 Internal BushingInternal Bushing
-
132706202720 Front Spring Bright WhiteFront Spring Bright White
-
135706002056 Rear Shock. Includes 135 to 135fRear Shock. Includes 135 to 135f
-
135a715900266 Spherical BearingSpherical Bearing
-
135b715900330 Spherical BearingSpherical Bearing
-
135c715900331 ProtectorProtector
-
135d715900268 O-Ring BushingO-Ring Bushing
-
135e715900252 Retaining RingRetaining Ring
-
135f715900267 Internal BushingInternal Bushing
-
136706002546 Rear Spring Bright WhiteRear Spring Bright White
