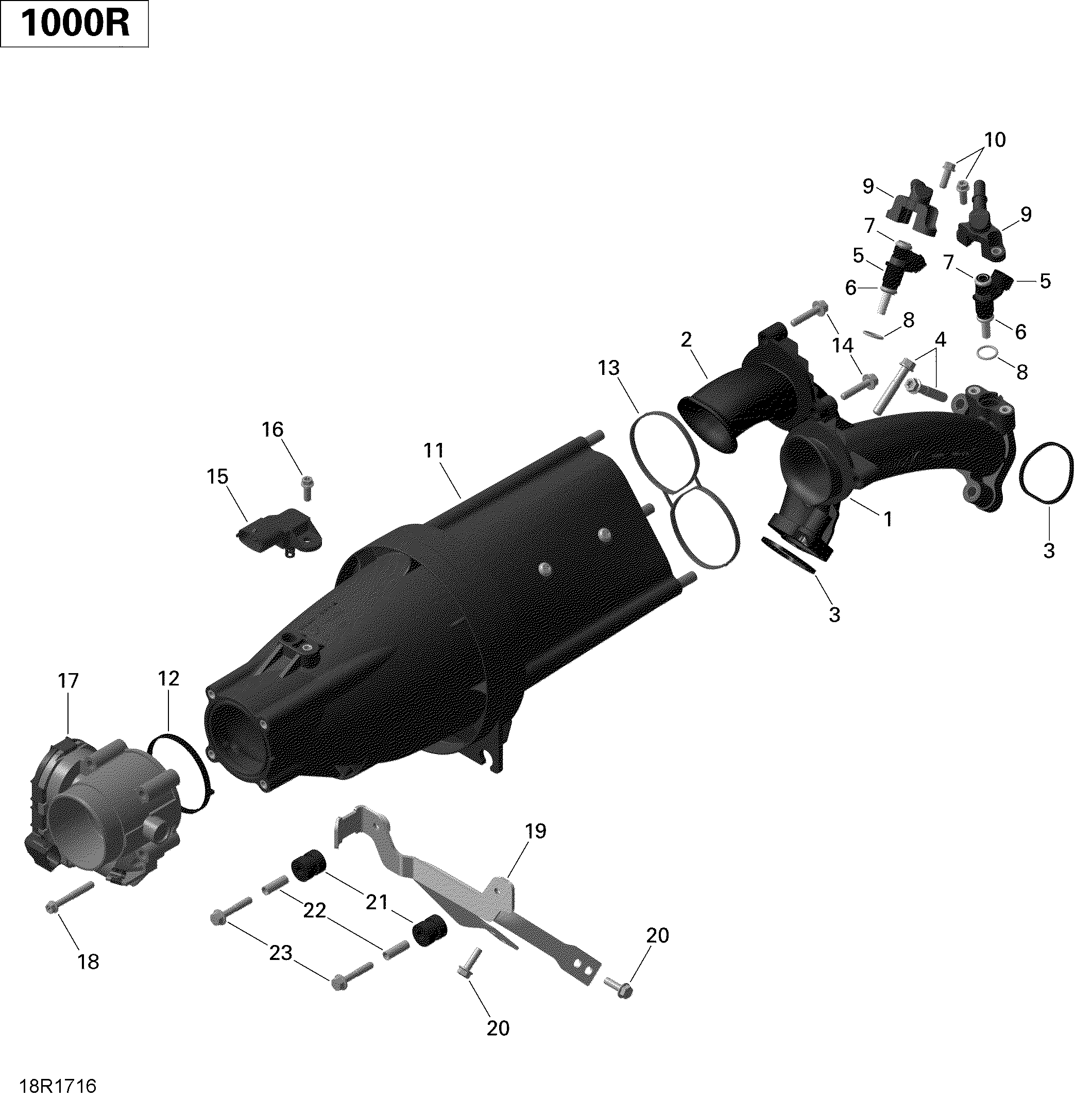

02- Air Intake Manifold and Throttle Body - 1000R для BRP 1- Maverick - 2018
-
№АртикулНазвание
-
1420667740 Rear Air Intake ManifoldRear Air Intake Manifold
-
2420667742 Front Air Intake ManifoldFront Air Intake Manifold
-
3420630642 GasketGasket
-
4420641203 Torx Flanged Screw M8 X 45Torx Flanged Screw M8 X 45
-
5420874830 Injection Valve Ass'y. Includes 5 to 7Injection Valve Ass'y. Includes 5 to 7
-
6420431890 O-RingO-Ring
-
7420631220 O-RingO-Ring
-
8420631295 O-RingO-Ring
-
9420874901 Fuel RailFuel Rail
-
10420641048 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
11420667750 Air Inlet Manifold Ass'y. Includes 11 to 13Air Inlet Manifold Ass'y. Includes 11 to 13
-
12420431900 GasketGasket
-
13420431903 GasketGasket
-
14420241947 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
15707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
16420440147 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
17420892595 Throttle BodyThrottle Body
-
18420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
19420651520 SupportSupport
-
20420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
21420660090 Rubber BracketRubber Bracket
-
22420847971 SpacerSpacer
-
23420441457 Hex. Screw M6 X 35Hex. Screw M6 X 35
