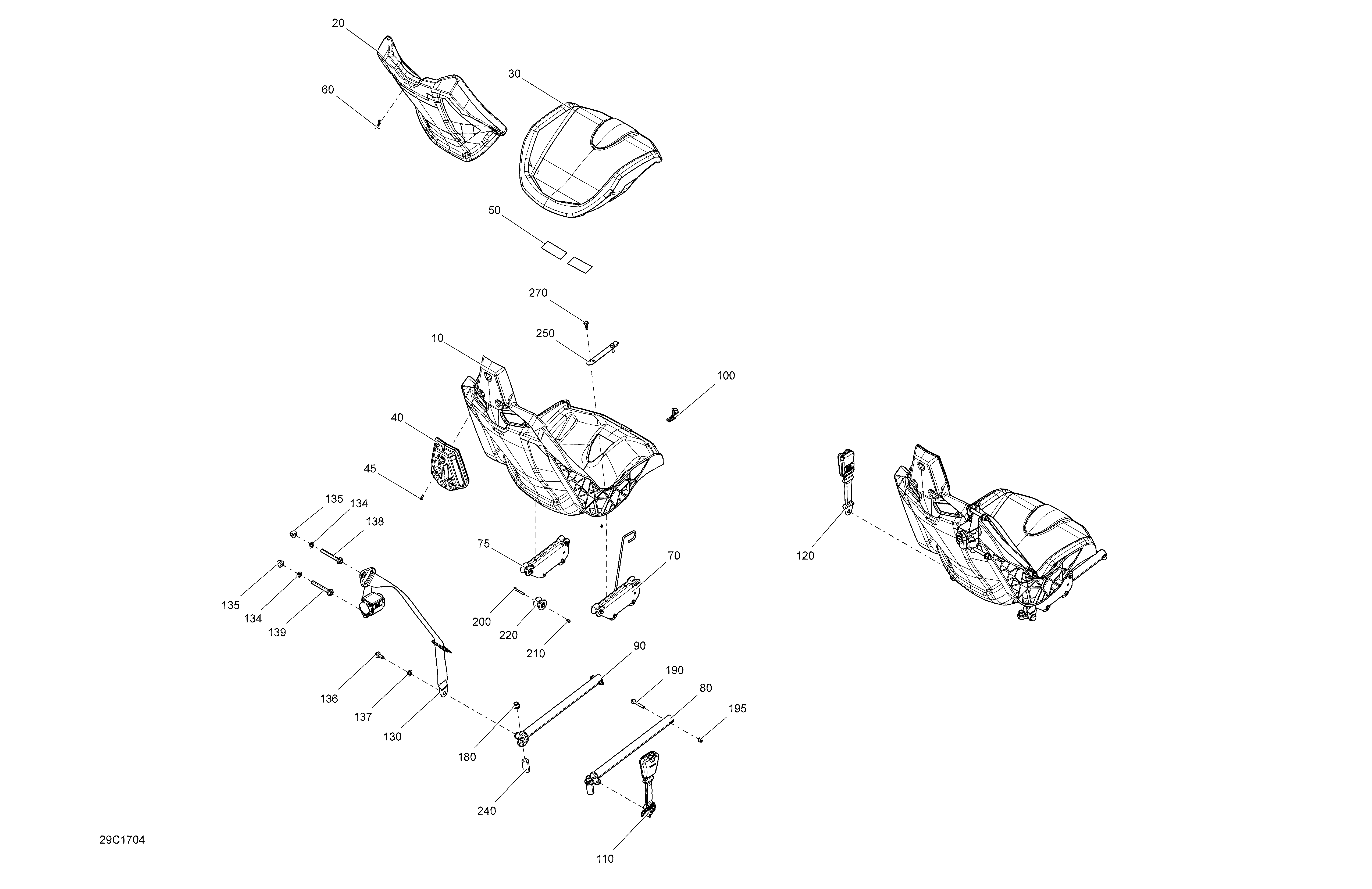

09- Seat для BRP 3-Maverick X3 - 2017
-
№АртикулНазвание
-
10708002065 Seat ShellSeat Shell
-
20708002121 Backrest Ass'y. Model WhiteBackrest Ass'y. Model White
-
20708002127 Backrest Ass'y. Model BlackBackrest Ass'y. Model Black
-
20708002380 Backrest Ass'y. Model GoldBackrest Ass'y. Model Gold
-
20708002393 Backrest Ass'y. Model YellowBackrest Ass'y. Model Yellow
-
30708002124 Cushion Ass'y. Model WhiteCushion Ass'y. Model White
-
30708002129 Cushion Ass'y. Model BlackCushion Ass'y. Model Black
-
30708002382 Cushion Ass'y. Model GoldCushion Ass'y. Model Gold
-
30708002396 Cushion Ass'y. Model YellowCushion Ass'y. Model Yellow
-
40708002131 HeadrestHeadrest
-
45250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
50708002535 Velcro TapeVelcro Tape
-
60708002533 Button Head Tie RapButton Head Tie Rap
-
70708002295 Adjustable TrolleyAdjustable Trolley
-
75708002298 TrolleyTrolley
-
80708002116 Drilled RailDrilled Rail
-
90708002119 RailRail
-
100708002512 Adjustment HandleAdjustment Handle
-
110708002384 Driver BuckleDriver Buckle
-
120708002385 Passenger BucklePassenger Buckle
-
130708002386 Safety BeltSafety Belt
-
134250200102 Flat Washer M12Flat Washer M12
-
135233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
136708002504 Safety Belt screwSafety Belt screw
-
137708000891 Position WasherPosition Washer
-
138250000896 Hex. Flanged Screw M12 X 97.5Hex. Flanged Screw M12 X 97.5
-
139250000876 Hex. Flanged Screw M12 X 95Hex. Flanged Screw M12 X 95
-
180233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
190207685554 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
195233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
200207665054 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
210233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
220708002134 WheelWheel
-
240708002299 Rear BushingRear Bushing
-
250708002480 PlatePlate
-
270207583044 Hex. Flanged Screw M8 X 30, Scotch GripHex. Flanged Screw M8 X 30, Scotch Grip
