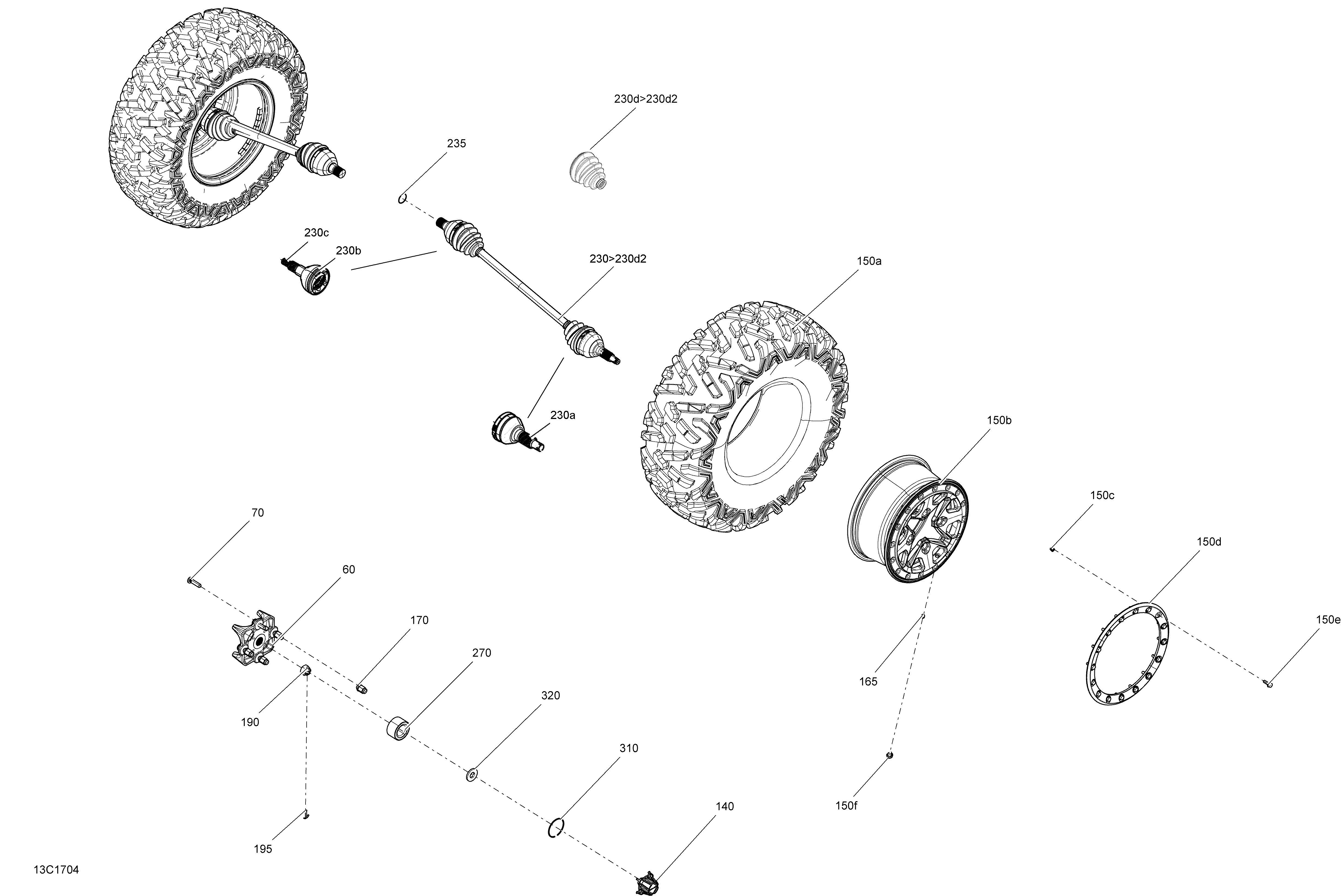

08- Drive System, Rear для BRP 3-Maverick X3 - 2017
-
№АртикулНазвание
-
60705502122 Wheel HubWheel Hub
-
70250300625 Wheel Stud M12X1.5Wheel Stud M12X1.5
-
140705401841 Wheel CapWheel Cap
-
150a705502144 Rear Tire. Model X3Rear Tire. Model X3
-
150a705502225 Rear Tire. Model X3 XdsRear Tire. Model X3 Xds
-
150a705401718 Tire. Model X3 XrsTire. Model X3 Xrs
-
150b705502493 Black Rim. Model X3Black Rim. Model X3
-
150b705502286 Black Rim. Model X3 XdsBlack Rim. Model X3 Xds
-
150b705401706 Black Rim. Model X3 XrsBlack Rim. Model X3 Xrs
-
150c293450360 Insert. Except Model X3Insert. Except Model X3
-
150d705401709 Black Reinforcement Disk. Model X3 XdsBlack Reinforcement Disk. Model X3 Xds
-
150d705401709 Black Reinforcement Disk. Model X3 Xrs BlackBlack Reinforcement Disk. Model X3 Xrs Black
-
150d705401913 Gold Reinforcement Disk. Model X3 Xrs GoldGold Reinforcement Disk. Model X3 Xrs Gold
-
150e250000893 Screw Flanger M8 X 25. Package XDSDPS, XRSDPSScrew Flanger M8 X 25. Package XDSDPS, XRSDPS
-
150f705400193 Rim Valve With CapRim Valve With Cap
-
165293000110 Valve CapValve Cap
-
170250100196 Black Wheel Lug Nut M12 X 1.50Black Wheel Lug Nut M12 X 1.50
-
190250100161 Castle Nut M20Castle Nut M20
-
195250400071 Cotter PinCotter Pin
-
230>230d2705502154 Homocinetic Joint. Model X3, X3 Xds. Includes 230 to 230d2Homocinetic Joint. Model X3, X3 Xds. Includes 230 to 230d2
-
230>230d2705502362 Homocinetic Joint. Model X3 Xrs. Includes 230 to 230d2Homocinetic Joint. Model X3 Xrs. Includes 230 to 230d2
-
230a715900447 CV JointCV Joint
-
230b715900448 Plunging JointPlunging Joint
-
230c715900449 Circlip JointCirclip Joint
-
230d>230d2715900450 Boot Kit, Wheel Side. Includes 230d to 230d2Boot Kit, Wheel Side. Includes 230d to 230d2
-
230d>230d2715900451 Boot Kit, Differential Side. Includes 230d to 230d2Boot Kit, Differential Side. Includes 230d to 230d2
-
230d1715900455 Oetiker Clamp, LargeOetiker Clamp, Large
-
230d2715900456 Oetiker Clamp, SmallOetiker Clamp, Small
-
235293300196 O-RingO-Ring
-
270293350109 Ball BearingBall Bearing
-
310293370102 CirclipCirclip
-
320250200147 Washer M20Washer M20
