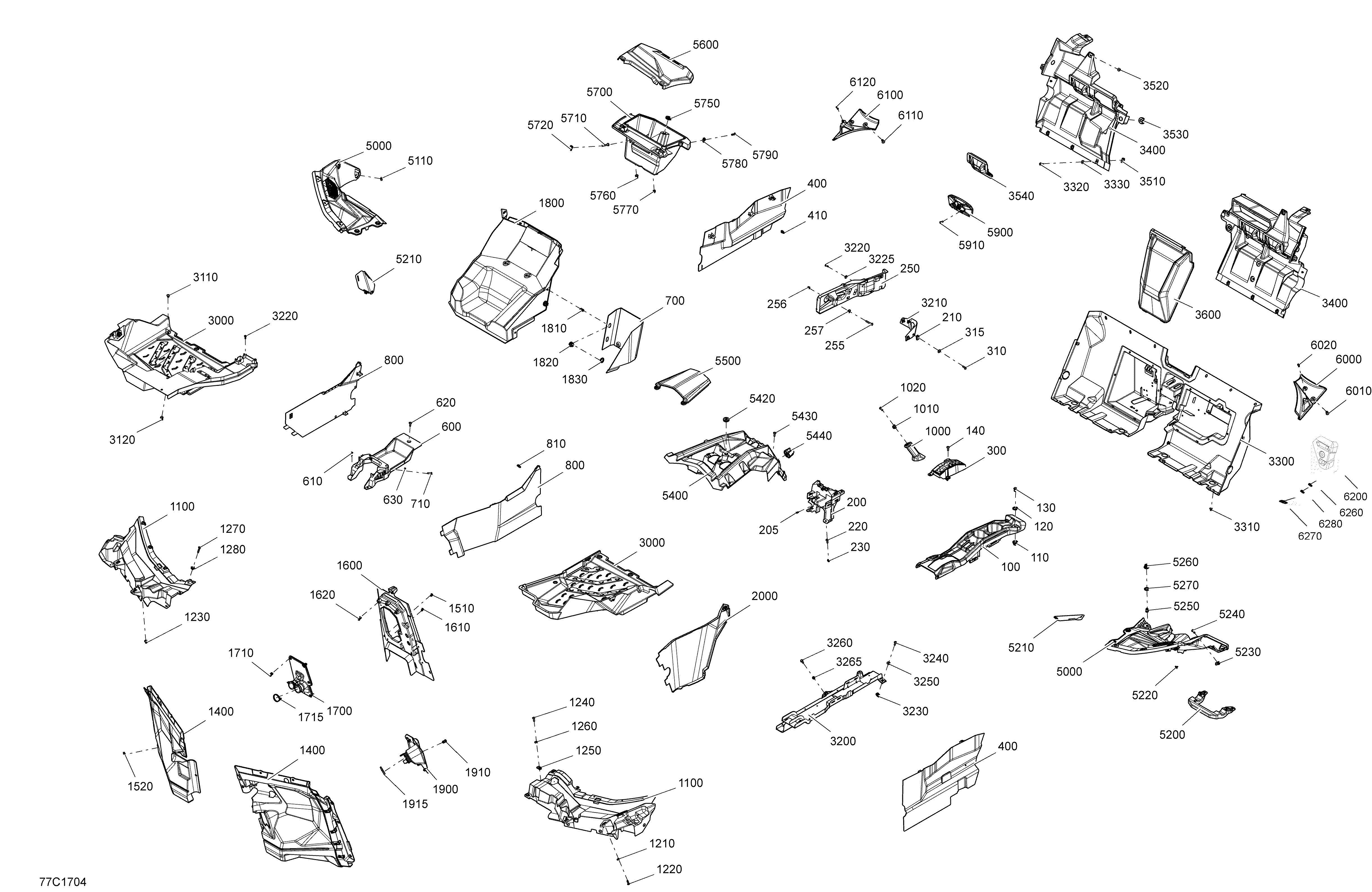

09- Cab Interior для BRP 3-Maverick X3 - 2017
-
№АртикулНазвание
-
100715004068 Front Console KitFront Console Kit
-
110707900133 InsertInsert
-
120503189273 WasherWasher
-
130293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
140250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
200707900459 Front Central Consol SupportFront Central Consol Support
-
205250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
210250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
220250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
230293450274 InsertInsert
-
250707900488 Shifter Gate SupportShifter Gate Support
-
255250000748 Torx Screw M6 X 45Torx Screw M6 X 45
-
256233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
257234062670 Flat Washer, StainlessFlat Washer, Stainless
-
300707900463 Lever IndicatorLever Indicator
-
310250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
315234062670 Flat Washer, StainlessFlat Washer, Stainless
-
400707900396 LH Lateral Dash PanelLH Lateral Dash Panel
-
400707900397 RH Lateral Dash PanelRH Lateral Dash Panel
-
410705010721 ClipClip
-
600707900460 Front Top ConsoleFront Top Console
-
610250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
620250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
630250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
700707900473 Cover Central ConsoleCover Central Console
-
710250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
800707900398 LH Lateral Console PanelLH Lateral Console Panel
-
800707900399 RH Lateral Console PanelRH Lateral Console Panel
-
810705010721 ClipClip
-
1000707900011 Passenger HandlePassenger Handle
-
1010707900048 Connector TubeConnector Tube
-
1020250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1100707900337 LH Front Upper DeflectorLH Front Upper Deflector
-
1100707900338 RH Front Upper DeflectorRH Front Upper Deflector
-
1210234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1220250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1230293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1240250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
1250250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1260234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1270250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
1280250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1400707900341 LH Front BulkheadLH Front Bulkhead
-
1400707900342 RH Front BulkheadRH Front Bulkhead
-
1510293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1520250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1600707900407 Front Bulkhead PanelFront Bulkhead Panel
-
1610293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1620293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1700707900474 Rubber DeflectorRubber Deflector
-
1710293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1715414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1800707900410 RH Lower Dash PanelRH Lower Dash Panel
-
1810293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1820707900133 InsertInsert
-
1830503189273 WasherWasher
-
1900707900427 Cover Steering ColumnCover Steering Column
-
1910293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1915293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2000707900477 Side Panel CoverSide Panel Cover
-
3000707900339 LH Front FloorLH Front Floor
-
3000707900340 RH Front FloorRH Front Floor
-
3110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3120293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
3200707900428 Hose SupportHose Support
-
3210707900478 Cable SupportCable Support
-
3220250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
3225250200025 Washer M5Washer M5
-
3230250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
3240250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3250234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3260250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3265293450274 InsertInsert
-
3300707900345 Lower Rear BulkheadLower Rear Bulkhead
-
3310293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3320250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
3330234062670 Flat Washer, StainlessFlat Washer, Stainless
-
3400707900440 LH Upper Rear Bulkhead. Version Without CoverLH Upper Rear Bulkhead. Version Without Cover
-
3400707900632 LH Upper Rear Bulkhead. Version With CoverLH Upper Rear Bulkhead. Version With Cover
-
3400707900652 Rear Bulkhead Cover. Version With CoverRear Bulkhead Cover. Version With Cover
-
3400707900441 RH Upper Rear BulkheadRH Upper Rear Bulkhead
-
3510250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
3520293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3530705010718 GrommetGrommet
-
3540707900486 Bulkhead CoverBulkhead Cover
-
3600707900442 Central Upper Rear BulkheadCentral Upper Rear Bulkhead
-
5000715004062 LH Dash Kit. Model North AmericaLH Dash Kit. Model North America
-
5000715004364 LH Dash Kit. Model InternationalLH Dash Kit. Model International
-
5000707900348 RH DashRH Dash
-
5110234062670 Flat Washer, StainlessFlat Washer, Stainless
-
5200707900479 Dash SupportDash Support
-
5210707900465 LH Speaker CoverLH Speaker Cover
-
5210707900590 RH Speaker CoverRH Speaker Cover
-
5220517302785 ClipClip
-
5230250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5240250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5250293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5260707900133 InsertInsert
-
5270503189273 WasherWasher
-
5400707900458 Central DashCentral Dash
-
5420517303756 GrommetGrommet
-
5430250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5440
-
5500707900400 Dash CoverDash Cover
-
5600
-
5700707900350 Glove BoxGlove Box
-
5710250000868 Torx Truss M6 X 50Torx Truss M6 X 50
-
5720250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5750517303756 GrommetGrommet
-
5760293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5770293830005 Rubber BumperRubber Bumper
-
5780250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
5790250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
5900707900502 Central MirrorCentral Mirror
-
5910250000721 Torx ScrewTorx Screw
-
6000707900507 Warning Label PlateWarning Label Plate
-
6010293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
6020250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
6100707900574 Warning Label PlateWarning Label Plate
-
6110293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
6120250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
6200707900615 LH Shoulder PadLH Shoulder Pad
-
6200707900616 RH Shoulder PadRH Shoulder Pad
-
6260250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
6270250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
6280234062670 Flat WasherFlat Washer
