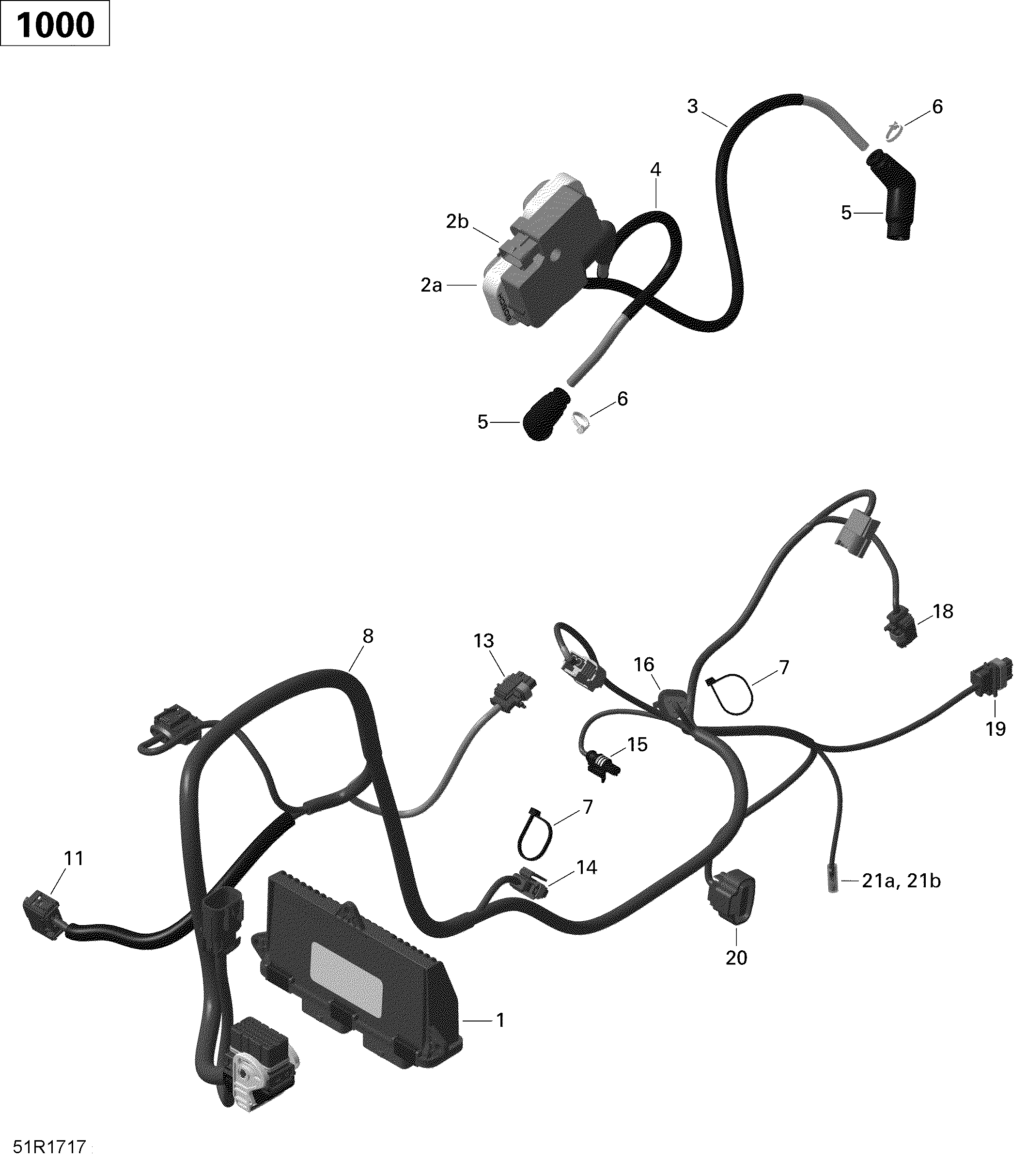

10- Engine Harness and Electronic Module - 1000 EFI для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
1420866511 Engine Control Module. Except MAX Model, Except EuropeEngine Control Module. Except MAX Model, Except Europe
-
1420266957 Engine Control Module. Europe ModelEngine Control Module. Europe Model
-
1420264393 Engine Control Module. MAX ModelEngine Control Module. MAX Model
-
2a278001546 Ignition Coil. Includes 2a to 2bIgnition Coil. Includes 2a to 2b
-
2b710000568 HousingHousing
-
3420665330 Spark Plug Cable, 610 mm, PTO SideSpark Plug Cable, 610 mm, PTO Side
-
4420664300 Spark Plug Cable, 365 mm, MAG SideSpark Plug Cable, 365 mm, MAG Side
-
5420265248 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7420866714 Tie RapTie Rap
-
8420666332 Engine Wiring Harness. Includes 8 to 21b - Except MAX ModelEngine Wiring Harness. Includes 8 to 21b - Except MAX Model
-
8420666550 Engine Wiring Harness. Includes 8 to 21b - MAX ModelEngine Wiring Harness. Includes 8 to 21b - MAX Model
-
11710001872 Housing, 6 PositionsHousing, 6 Positions
-
13278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
14278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
16278002378 Male HousingMale Housing
-
18278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
19278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
20710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
21a278001007 Insulated SheathInsulated Sheath
-
21b278001009 Female TerminalFemale Terminal
