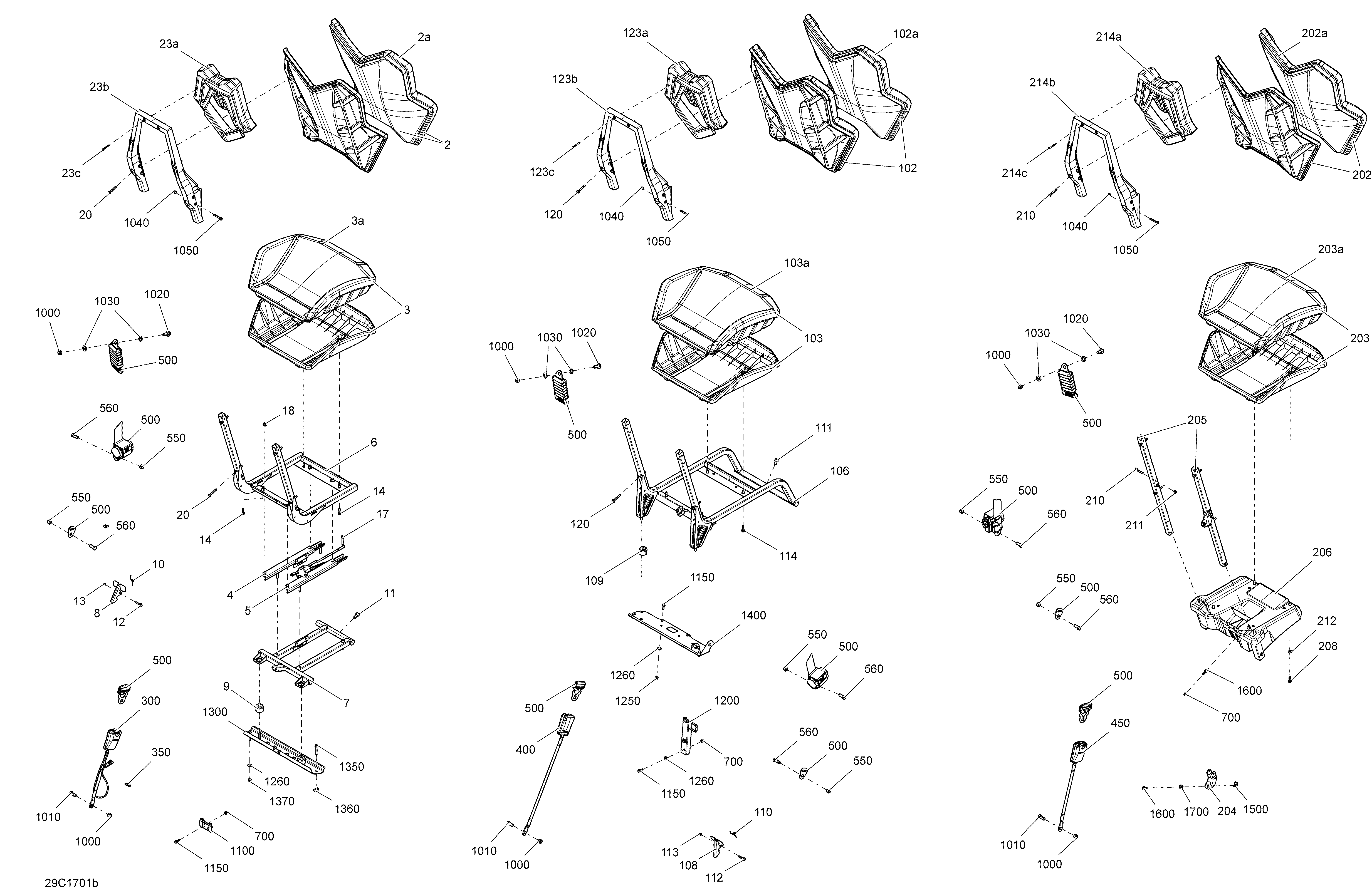

09- Seat - Commander MAX для BRP Commander - Commander Max - 2017

№

Артикул

Название
2

708001316 Backrest Assembly. XT_DPS. Includes 2 to 2a

Backrest Assembly. XT_DPS. Includes 2 to 2a
2

708002236 Backrest Ass'y. LTD. Includes 2 to 2a

Backrest Ass'y. LTD. Includes 2 to 2a
2a

708000675 Backrest Cover. XT_DPS

Backrest Cover. XT_DPS
2a

708002237 Backrest Cover. LTD

Backrest Cover. LTD
3

708001318 Cushion Assembly. XT_DPS. Includes 3 to 3a

Cushion Assembly. XT_DPS. Includes 3 to 3a
3

708002238 Cushion Ass'y. LTD. Includes 3 to 3a

Cushion Ass'y. LTD. Includes 3 to 3a
3a

708001103 Seat Cover. XT_DPS

Seat Cover. XT_DPS
3a

708002239 Cushion Cover. LTD

Cushion Cover. LTD
4

708000848 LH Rail

LH Rail
5

708001739 RH Rail

RH Rail
6

708001356 Operator Seat Frame

Operator Seat Frame
7

708001174 Seat Member

Seat Member
8

708001355 Seat Latch

Seat Latch
9

708001671 Rubber Bumper

Rubber Bumper
10

708000921 Spring

Spring
11

205501644 Socket Screw M10 X 16

Socket Screw M10 X 16
12

207563034 Hex. Flanged Screw M6 X 30, Scotch Grip

Hex. Flanged Screw M6 X 30, Scotch Grip
13

232561600 Hex. Elastic Stop Nut M6

Hex. Elastic Stop Nut M6
14

207562544 Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip
17

205084044 Socket Head Screw M8 X 40

Socket Head Screw M8 X 40
18

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
20

250000672 Hex. Flange Screw M6

Hex. Flange Screw M6
23a

708001074 Head Rest

Head Rest
23b

708001245 Seat Support

Seat Support
23C

250000897 Hex. Flange Screw K50 X 40

Hex. Flange Screw K50 X 40
102

708001316 Backrest Assembly. XT_DPS. Includes 102 to 102a

Backrest Assembly. XT_DPS. Includes 102 to 102a
102

708002236 Backrest Ass'y. LTD. Includes 102 to 102a

Backrest Ass'y. LTD. Includes 102 to 102a
102a

708000675 Backrest Cover. XT_DPS

Backrest Cover. XT_DPS
102a

708002237 Backrest Cover. LTD

Backrest Cover. LTD
103

708001318 Cushion Assembly. XT_DPS. Includes 103 to 103a

Cushion Assembly. XT_DPS. Includes 103 to 103a
103

708002238 Cushion Ass'y. LTD. Includes 103 to 103a

Cushion Ass'y. LTD. Includes 103 to 103a
103a

708001103 Seat Cover. XT_DPS

Seat Cover. XT_DPS
103a

708002239 Cushion Cover. LTD

Cushion Cover. LTD
106

708001357 Passenger Seat Frame

Passenger Seat Frame
108

708001355 Seat Latch

Seat Latch
109

708001671 Rubber Bumper

Rubber Bumper
110

708000921 Spring

Spring
111

205501644 Socket Screw M10 X 16

Socket Screw M10 X 16
112

207563034 Hex. Flanged Screw M6 X 30, Scotch Grip

Hex. Flanged Screw M6 X 30, Scotch Grip
113

232561600 Hex. Elastic Stop Nut M6

Hex. Elastic Stop Nut M6
114

207562544 Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip
120

250000672 Hex. Flange Screw M6

Hex. Flange Screw M6
123a

708001074 Head Rest

Head Rest
123b

708001245 Seat Support

Seat Support
123c

250000897 Hex. Flange Screw K50 X 40

Hex. Flange Screw K50 X 40
202

708001316 Backrest Assembly. XT_DPS. Includes 202 to 202a

Backrest Assembly. XT_DPS. Includes 202 to 202a
202

708002236 Backrest Ass'y. LTD. Includes 202 to 202a

Backrest Ass'y. LTD. Includes 202 to 202a
202a

708000675 Backrest Cover. XT_DPS

Backrest Cover. XT_DPS
202a

708002237 Backrest Cover. LTD

Backrest Cover. LTD
203

708001318 Cushion Assembly. XT_DPS. Includes 203 to 203a

Cushion Assembly. XT_DPS. Includes 203 to 203a
203

708002238 Cushion Ass'y. LTD. Includes 203 to 203a

Cushion Ass'y. LTD. Includes 203 to 203a
203a

708001103 Seat Cover. XT_DPS

Seat Cover. XT_DPS
203a

708002239 Cushion Cover. LTD

Cushion Cover. LTD
204

708001474 Rear Anchor

Rear Anchor
205

708001476 Side Tube

Side Tube
206

708001198 Seat Support

Seat Support
208

207562544 Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip
210

250000672 Hex. Flange Screw M6

Hex. Flange Screw M6
211

233161464 Hex. Elastic Flange Nut M6

Hex. Elastic Flange Nut M6
212

234062670 Flat Washer, Stainless

Flat Washer, Stainless
214a

708001074 Head Rest

Head Rest
214b

708001245 Seat Support

Seat Support
214c

250000897 Hex. Flange Screw K50 X 40

Hex. Flange Screw K50 X 40
300

708002061 Driver Buckle Side

Driver Buckle Side
350

293750008 Tie-Rap 350 mm

Tie-Rap 350 mm
400

708002064 Passenger Buckle Side

Passenger Buckle Side
450

708002063 Rear Passenger Buckle Side

Rear Passenger Buckle Side
500

708001854 Safety Belt

Safety Belt
550

250100135 Nylon Insert Hex. Lock Nut 7/16-20

Nylon Insert Hex. Lock Nut 7/16-20
560

250000521 Hex. Cap Screw 7/16'' X 1''

Hex. Cap Screw 7/16'' X 1''
700

293450274 Insert

Insert
1100

708001212 Anchor

Anchor
1150

207562054 Flanged Hex. Screw S.GRIP M6 X 20

Flanged Hex. Screw S.GRIP M6 X 20
1200

708001213 Anchor

Anchor
1250

233061414 Hex. Flanged Nut M6

Hex. Flanged Nut M6
1260

234062670 Flat Washer, Stainless

Flat Washer, Stainless
1300

708001214 Seat Support

Seat Support
1350

250000213 Hex. Flanged Screw M6 X 1.0 X 45

Hex. Flanged Screw M6 X 1.0 X 45
1360

250100171 Panel Nut M6 X 1.0

Panel Nut M6 X 1.0
1370

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
1400

708001804 Support

Support
1500

250100171 Panel Nut M6 X 1.0

Panel Nut M6 X 1.0
1600

207562054 Flanged Hex. Screw S.GRIP M6 X 20

Flanged Hex. Screw S.GRIP M6 X 20
1700

234281474 Conical Spring Washer M8

Conical Spring Washer M8
1000

250100135 Nylon Insert Hex. Lock Nut 7/16-20

Nylon Insert Hex. Lock Nut 7/16-20
1010

250000521 Hex. Cap Screw 7/16'' X 1''

Hex. Cap Screw 7/16'' X 1''
1020

708000890 Safety Belt Screw

Safety Belt Screw
1030

708000891 Position Washer

Position Washer
1040

233161464 Hex. Elastic Flange Nut M6

Hex. Elastic Flange Nut M6
1050

250000672 Hex. Flange Screw M6

Hex. Flange Screw M6
