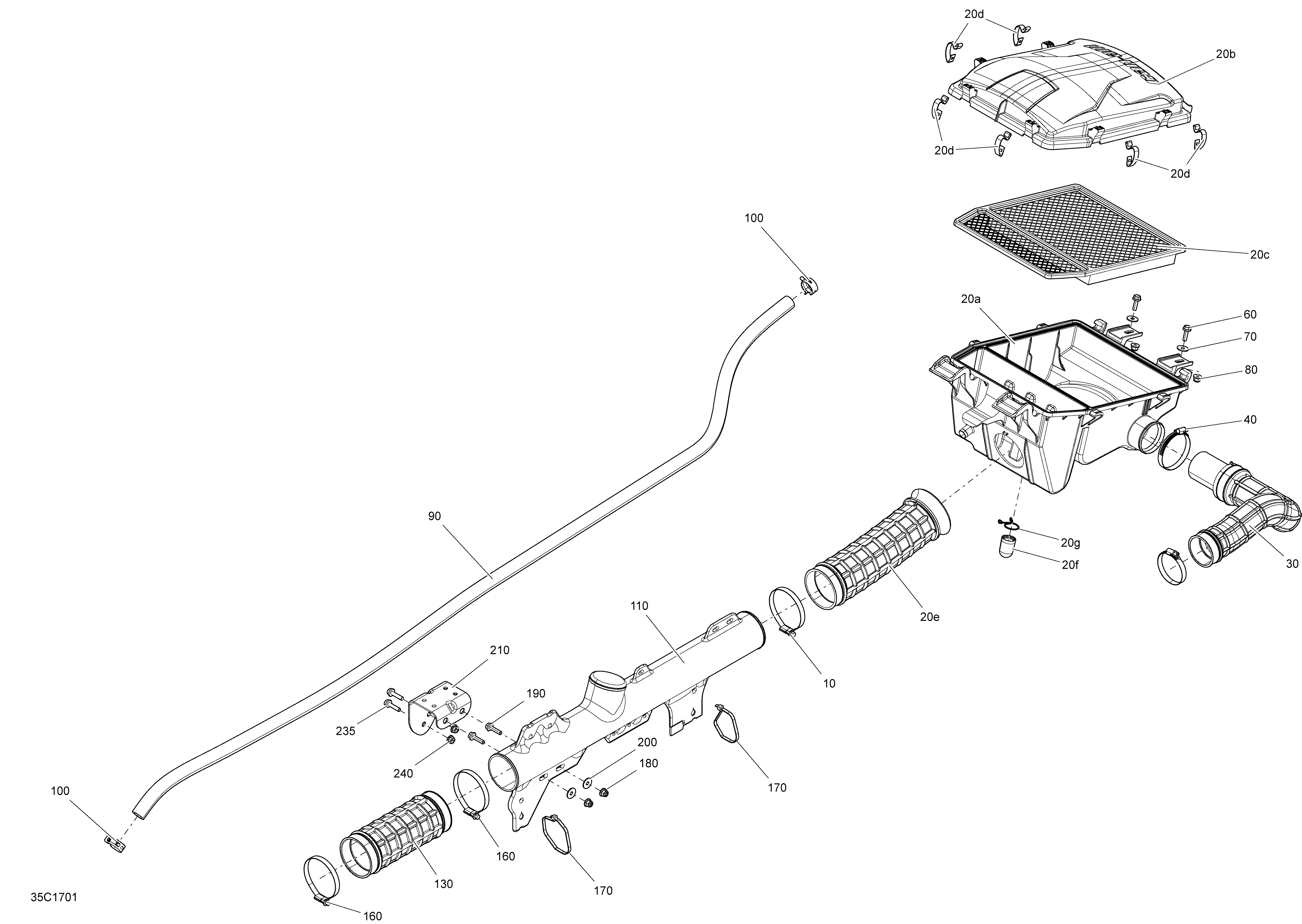

02- Air Intake - All Models для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
10293650091 Norma ClampNorma Clamp
-
20a707800517 Air Intake Silencer BaseAir Intake Silencer Base
-
20b707800326 Air Intake Silencer CoverAir Intake Silencer Cover
-
20c707800327 Air FilterAir Filter
-
20d707800249 Cover BracketCover Bracket
-
20e707800329 Intake AdaptorIntake Adaptor
-
20f707800080 Drain TubeDrain Tube
-
20g707800278 Retainer ClipRetainer Clip
-
30707800322 Intake AdaptorIntake Adaptor
-
40293650079 Norma ClampNorma Clamp
-
60207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
70250200082 Flat WasherFlat Washer
-
80233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
90707800411 Hose 15.88 mmHose 15.88 mm
-
90707800411 Hose 15.88 mmHose 15.88 mm
-
100293650213 Norma Spring ClampNorma Spring Clamp
-
110707800515 Intake Adaptor. Commander MAXIntake Adaptor. Commander MAX
-
130707800541 Intake Adaptor. Commander MAXIntake Adaptor. Commander MAX
-
160293650091 Norma Clamp. Commander MAXNorma Clamp. Commander MAX
-
170293750008 Tie-Rap 350 mm. Commander MAXTie-Rap 350 mm. Commander MAX
-
180233261414 Hex. Flanged Elastic Nut M6. Commander MAXHex. Flanged Elastic Nut M6. Commander MAX
-
190207662544 Hex. Flanged Screw M6 X 25. Commander MAXHex. Flanged Screw M6 X 25. Commander MAX
-
200250200082 Flat Washer. Commander MAXFlat Washer. Commander MAX
-
210707800560 Rear Support. Commander MAXRear Support. Commander MAX
-
235207662544 Hex. Flanged Screw M6 X 25. Commander MAXHex. Flanged Screw M6 X 25. Commander MAX
-
240233261414 Hex. Flanged Elastic Nut M6. Commander MAXHex. Flanged Elastic Nut M6. Commander MAX
