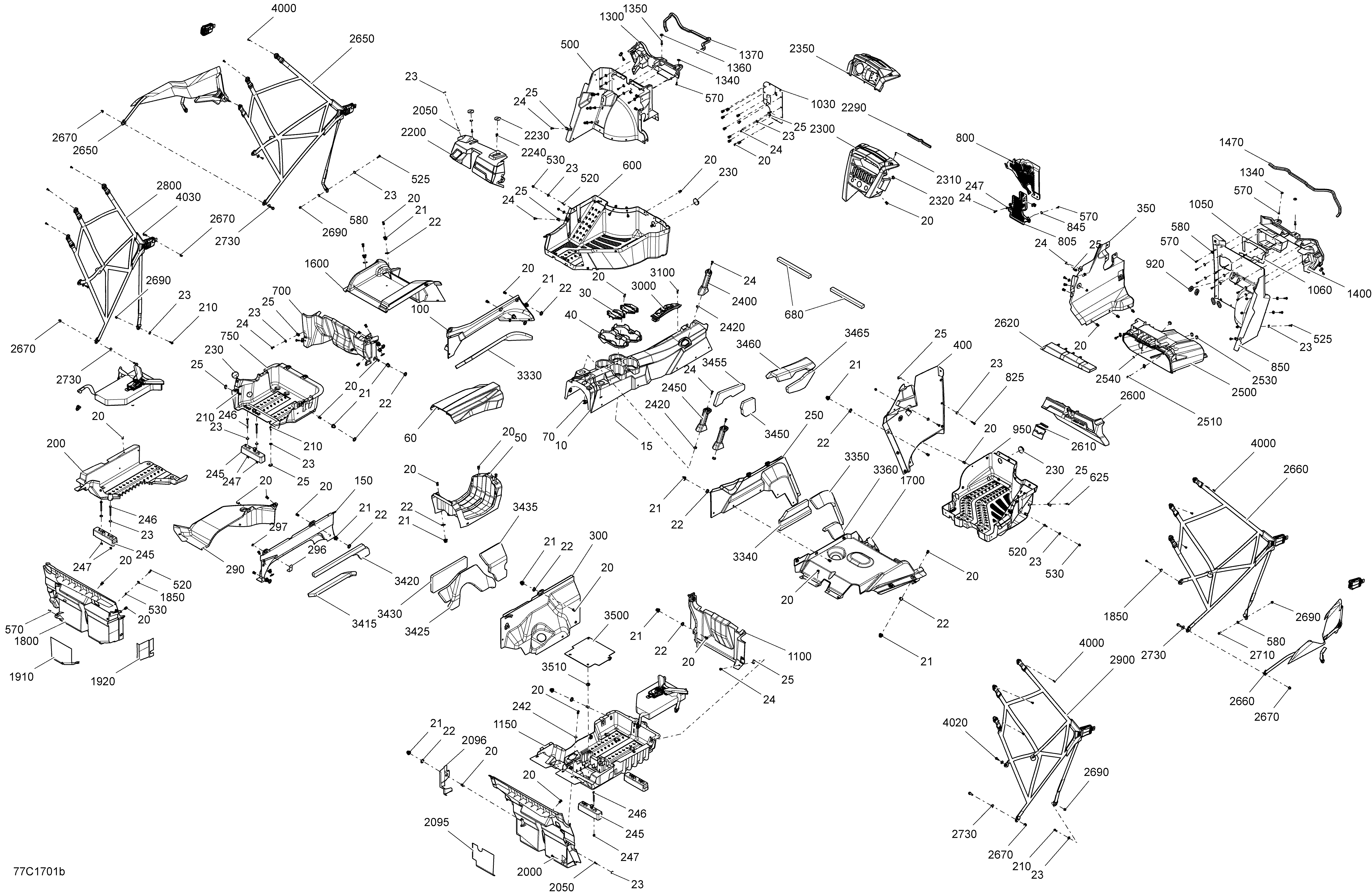

09- Cab Interior - Commander MAX для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
10715004114 Front Console Ass'y. North America Except Package LTDFront Console Ass'y. North America Except Package LTD
-
10715004115 Front Console Cover Kit. North America Package LTDFront Console Cover Kit. North America Package LTD
-
10715004329 Front Console Cover Kit. International Except Package LTDFront Console Cover Kit. International Except Package LTD
-
10715004332 Front Console Cover Kit. International Package LTDFront Console Cover Kit. International Package LTD
-
15732610072 Push NutPush Nut
-
15732610072 Push Nut. Package LTDPush Nut. Package LTD
-
20293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
21707900133 InsertInsert
-
22503189273 WasherWasher
-
23234062670 Flat Washer, StainlessFlat Washer, Stainless
-
24250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
25250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
30707900036 Cup RetainerCup Retainer
-
40707900100 Cup HolderCup Holder
-
50707900075 Rear Central ConsoleRear Central Console
-
60707900229 Rear Console Cover KitRear Console Cover Kit
-
70517303756 GrommetGrommet
-
100707900001 LH Side ConsoleLH Side Console
-
150707900391 Rear LH consolRear LH consol
-
200707900387 Under coverUnder cover
-
210207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
230293250242 Rubber CoverRubber Cover
-
242506151252 WasherWasher
-
245707900099 Support PlateSupport Plate
-
246207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
247293450274 InsertInsert
-
250707900002 RH Side ConsoleRH Side Console
-
290707900388 Rear Floor capRear Floor cap
-
296705205445 Insert SupportInsert Support
-
297293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
300707900080 RH Rear Console PanelRH Rear Console Panel
-
350707900193 Front Side Dash PanelFront Side Dash Panel
-
400707900021 RH Fixe Side Console. Except Package LTDRH Fixe Side Console. Except Package LTD
-
400707900098 RH Fixe Side Console. Package LTDRH Fixe Side Console. Package LTD
-
500707900175 LH Front Upper FloorLH Front Upper Floor
-
520250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
525250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
530233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
570250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
580234062410 Flat Washer 6 mmFlat Washer 6 mm
-
600707900022 LH Lower FloorLH Lower Floor
-
625250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
680293250318 Seal TraySeal Tray
-
700707900082 LH Rear Upper Floor CoverLH Rear Upper Floor Cover
-
750707900331 Rear FloorRear Floor
-
800707900178 GrillGrill
-
805707900180 GrillGrill
-
825250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
845250200025 Washer M5Washer M5
-
850707900004 RH Front FloorRH Front Floor
-
920705003668 Oblong GrommetOblong Grommet
-
950707900023 RH Lower FloorRH Lower Floor
-
1030707900125 DeflectorDeflector
-
1050293250252 Upper SealUpper Seal
-
1060293250253 Bottom SealBottom Seal
-
1100707900083 Seat CoverSeat Cover
-
1150707900231 RH Lower Rear FloorRH Lower Rear Floor
-
1300707900029 LH Floor SupportLH Floor Support
-
1340224060201 Flat WasherFlat Washer
-
1350207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
1360224061201 Flat WasherFlat Washer
-
1370293200093 Neoprene SealNeoprene Seal
-
1400707900030 RH Floor SupportRH Floor Support
-
1470293200093 Neoprene SealNeoprene Seal
-
1600707900130 Under Seat CoverUnder Seat Cover
-
1700707900006 RH Under Seat PlateRH Under Seat Plate
-
1800707900220 LH Rear DeflectorLH Rear Deflector
-
1850250200040 Flat WasherFlat Washer
-
1910707900182 Heat ShieldHeat Shield
-
1920707900183 Heat ShieldHeat Shield
-
2000707900219 RH Rear DeflectorRH Rear Deflector
-
2050250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
2095707900167 Heat ShieldHeat Shield
-
2096707900184 Heat ShieldHeat Shield
-
2200715001250 Dashboard Ass'yDashboard Ass'y
-
2230705003841 Support PlateSupport Plate
-
2240517302785 ClipClip
-
2290271000110 Protection Trim. Package LTDProtection Trim. Package LTD
-
2300715002178 Central Dashboard Ass'y. Except Package LTDCentral Dashboard Ass'y. Except Package LTD
-
2300715002187 Central Dashboard Ass'y. Package LTDCentral Dashboard Ass'y. Package LTD
-
2310250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2320250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
2350707900066 Gauge Support. Package LTDGauge Support. Package LTD
-
2400707900011 Passenger HandlePassenger Handle
-
2420707900048 Connector TubeConnector Tube
-
2450707900103 HandleHandle
-
2500707900009 Storage Bin. Package DPSStorage Bin. Package DPS
-
2500707900046 Storage Bin. Package XTStorage Bin. Package XT
-
2500707900046 Storage Bin. Package LTDStorage Bin. Package LTD
-
2510207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2530414859400 CapCap
-
2540293830005 Rubber BumperRubber Bumper
-
2600707900221 Luggage Cover KitLuggage Cover Kit
-
2610707900031 LatchLatch
-
2620707900038 Trim Glove BoxTrim Glove Box
-
2650707900237 Front LH Safety Net. Include Buckle 715900398Front LH Safety Net. Include Buckle 715900398
-
2660707900238 Front RH Safety Net. Include Buckle 715900398Front RH Safety Net. Include Buckle 715900398
-
2670233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2690233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2710207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2730234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2800707900239 Rear LH Safety NetRear LH Safety Net
-
2900707900240 Rear RH Safety NetRear RH Safety Net
-
3000707900088 Shift Lever IndicatorShift Lever Indicator
-
3100250000728 Torx Screw M6 X 25Torx Screw M6 X 25
-
3330707900044 LH Lower Lateral Console FoamLH Lower Lateral Console Foam
-
3340707900045 RH Lateral Console FoamRH Lateral Console Foam
-
3350707900055 RH Lateral Console FoamRH Lateral Console Foam
-
3360707900056 RH Lateral Console FoamRH Lateral Console Foam
-
3415707900333 Acoustic FoamAcoustic Foam
-
3420707900120 Acoustic FoamAcoustic Foam
-
3435707900206 Acoustic FoamAcoustic Foam
-
3455707900210 Acoustic FoamAcoustic Foam
-
3460707900211 Acoustic FoamAcoustic Foam
-
3465707900212 Acoustic FoamAcoustic Foam
-
3500707900163 Battery CoverBattery Cover
-
3510705003264 GrommetGrommet
-
4000250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
4020207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
4030207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
