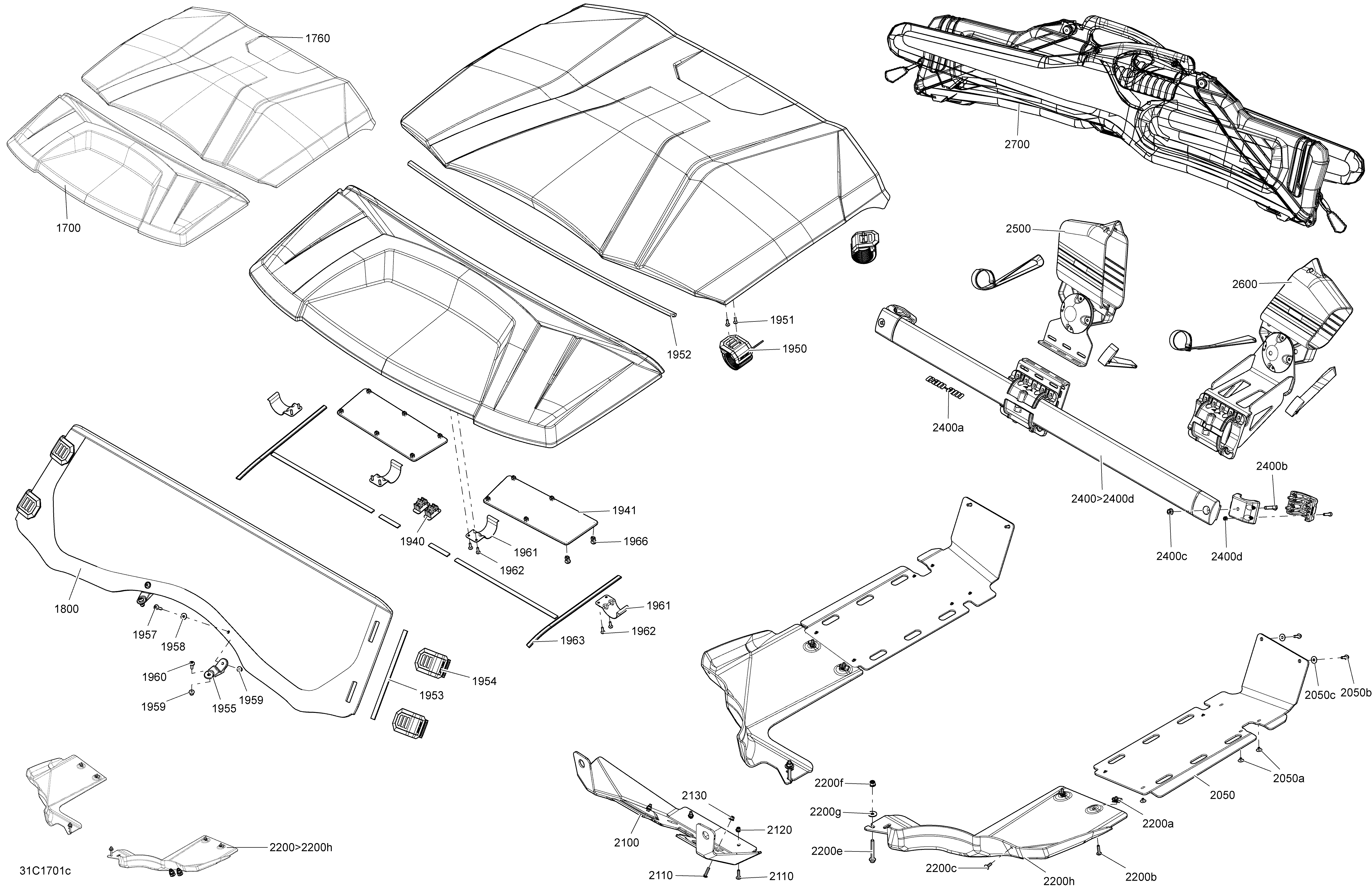

09- Body And Accessories - Parts Package Hunter для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
1700715001952 Roof Visor Ass'yRoof Visor Ass'y
-
1760715001949 Mid Roof KitMid Roof Kit
-
1800705005671 Half WindshieldHalf Windshield
-
1950705007962 Perforated Velcro StrapPerforated Velcro Strap
-
1951250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1952293200136 Seal, MeterSeal, Meter
-
1953293250087 Gasket, NeopreneGasket, Neoprene
-
1954705007961 Velcro StrapVelcro Strap
-
1955705005776 Windshield SupportWindshield Support
-
1956293250087 Gasket, NeopreneGasket, Neoprene
-
1957250000758 Torx Screw M6 X 25Torx Screw M6 X 25
-
1958234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1959233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
1960250000488 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
1961705009030 ''U'' Brace Strip''U'' Brace Strip
-
1962250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1963293250087 Gasket, NeopreneGasket, Neoprene
-
1966293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
1967250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
1968233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
2100705205448 Front ProtectorFront Protector
-
2110250000807 Torx Screw M6 X 25Torx Screw M6 X 25
-
2120293450274 InsertInsert
-
2130233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
2200>2200h715002494 Side Skid Plate Kit. Includes 2200 to 2200hSide Skid Plate Kit. Includes 2200 to 2200h
-
2200a250100111 Panel Nut M8Panel Nut M8
-
2200b250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
2200c250000843 Torx Truss Screw M6 X 30Torx Truss Screw M6 X 30
-
2200d250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
2200e207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
2200f233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2200g234082410 Flat Washer 8 mmFlat Washer 8 mm
-
2200h705009032 Support PlateSupport Plate
-
2400>2400d715001320 Support Multi function. Includes 2400 to 2400dSupport Multi function. Includes 2400 to 2400d
-
2400a704904566 CAN-AM DecalCAN-AM Decal
-
2400b207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
2400c233181414 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
2400d232561494 Elastic Stop Nut M6Elastic Stop Nut M6
-
2500715001420 Gun Boot SupportGun Boot Support
-
2600715001586 2ND Gun Boot Support2ND Gun Boot Support
-
2700715001419 Gun Boot kitGun Boot kit
