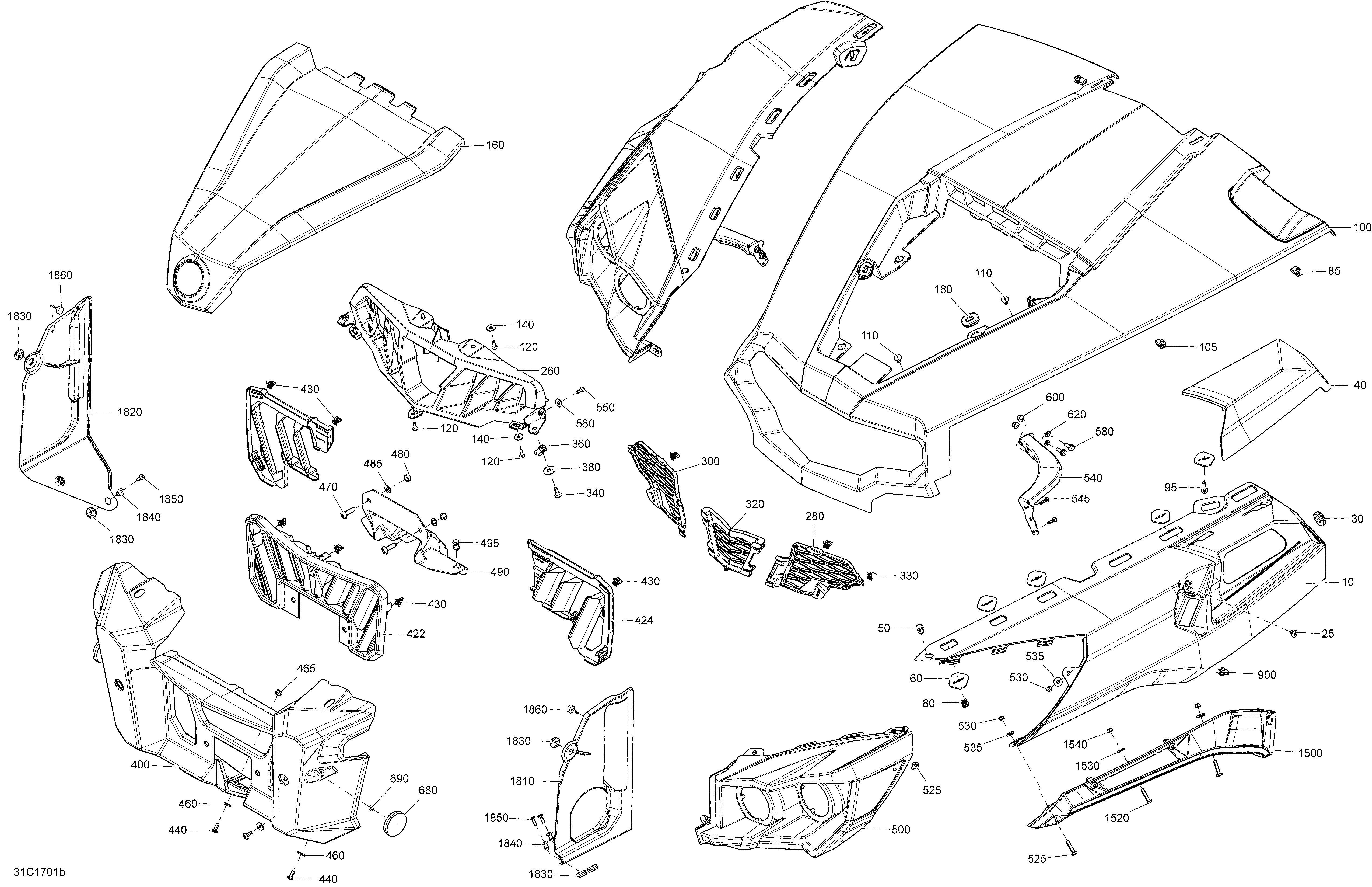

09- Body And Accessories - Max, Front, All Models для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
10705008340 Brush Aluminum LH Front Fender. Aluminum ModelBrush Aluminum LH Front Fender. Aluminum Model
-
10705008342 Brush Aluminum RH Front Fender. Aluminum ModelBrush Aluminum RH Front Fender. Aluminum Model
-
10705009576 Camo LH Front Fender. Camo ModelCamo LH Front Fender. Camo Model
-
10705009577 Camo RH Front Fender. Camo ModelCamo RH Front Fender. Camo Model
-
10705010696 Midnight Blue LH Front Fender. Blue ModelMidnight Blue LH Front Fender. Blue Model
-
10705010697 Midnight Blue RH Front Fender. Blue ModelMidnight Blue RH Front Fender. Blue Model
-
10705008196 Viper Red LH Front Fender. Red ModelViper Red LH Front Fender. Red Model
-
10705008197 Viper Red RH Front Fender. Red ModelViper Red RH Front Fender. Red Model
-
25293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
30517303756 GrommetGrommet
-
40705008191 Viper Red CVT Inlet Cover. Red ModelViper Red CVT Inlet Cover. Red Model
-
40705008344 Brush Aluminum CVT Inlet Cover. Aluminum ModelBrush Aluminum CVT Inlet Cover. Aluminum Model
-
40705009582 Camo CVT Inlet Cover. Camo ModelCamo CVT Inlet Cover. Camo Model
-
40705010698 Midnight Blue CVT Inlet Cover. Blue ModelMidnight Blue CVT Inlet Cover. Blue Model
-
50293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
60705003841 Support PlateSupport Plate
-
80517302785 ClipClip
-
85250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
95207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100705008188 Viper Red Fixed Hood. Red ModelViper Red Fixed Hood. Red Model
-
100705008346 Brush Aluminum Fixed Hood. Aluminum ModelBrush Aluminum Fixed Hood. Aluminum Model
-
100705009585 Camo Fixed Hood. Camo ModelCamo Fixed Hood. Camo Model
-
100705010699 Midnight Blue Fixed Hood. Blue ModelMidnight Blue Fixed Hood. Blue Model
-
105250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
110293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
120250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
140234062670 Flat Washer, StainlessFlat Washer, Stainless
-
160705008185 Viper Red Removable Hood. Red ModelViper Red Removable Hood. Red Model
-
160705009206 Brush Aluminum Removable Hood. Aluminum ModelBrush Aluminum Removable Hood. Aluminum Model
-
160705009588 Camo Removable Hood. Camo ModelCamo Removable Hood. Camo Model
-
160705010700 Midnight Blue Removable Hood. Blue ModelMidnight Blue Removable Hood. Blue Model
-
180705005156 Oval WasherOval Washer
-
260705003629 Upper Facia, BlackUpper Facia, Black
-
280705004350 LH Upper Facia ProtectorLH Upper Facia Protector
-
300705004351 RH Upper Facia ProtectorRH Upper Facia Protector
-
320705004336 Center Upper Facia ProtectorCenter Upper Facia Protector
-
330517302785 ClipClip
-
340250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
360250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
380234082410 Flat Washer 8 mmFlat Washer 8 mm
-
400705008689 Black Front Facia. Package DPSBlack Front Facia. Package DPS
-
400705008690 Black Front Facia. Package LTDBlack Front Facia. Package LTD
-
400705008690 Black Front Facia. Package XTBlack Front Facia. Package XT
-
422705004755 Lower Front Facia ProtectorLower Front Facia Protector
-
424705004819 LH Lower Rear Facia ProtectorLH Lower Rear Facia Protector
-
424705004820 RH Lower Rear Facia ProtectorRH Lower Rear Facia Protector
-
430517302785 ClipClip
-
440250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
460234062670 Flat Washer, StainlessFlat Washer, Stainless
-
465293450274 InsertInsert
-
470250000745 Torx Truss M/S M8 X30. Package DPSTorx Truss M/S M8 X30. Package DPS
-
480232081414 Hex. Nut M8. Package DPSHex. Nut M8. Package DPS
-
485234081410 Flat Washer 8 mm. Package DPSFlat Washer 8 mm. Package DPS
-
490705003399 Bottom Deflector. Package DPSBottom Deflector. Package DPS
-
495293150089 Tuflok Plastic Rivet. Package DPSTuflok Plastic Rivet. Package DPS
-
500705002885 LH Front FaciaLH Front Facia
-
500705002886 RH Front FaciaRH Front Facia
-
525250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
530232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
535234062670 Flat Washer, StainlessFlat Washer, Stainless
-
540705002891 Facia Front SupportFacia Front Support
-
545250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
550250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
560234062670 Flat Washer, StainlessFlat Washer, Stainless
-
580207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
600233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
620234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
680705011222 Amber ReflectorAmber Reflector
-
690233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
900250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
1500705008666 LH Black Upper Front Mudguard. Package XT, LTDLH Black Upper Front Mudguard. Package XT, LTD
-
1500705008667 RH Black Upper Front Mudguard. Package XT, LTDRH Black Upper Front Mudguard. Package XT, LTD
-
1520250000842 Torx Screw M6 X 30 Stainless. Package XT, LTDTorx Screw M6 X 30 Stainless. Package XT, LTD
-
1530234062670 Flat Washer, Stainless. Package XT, LTDFlat Washer, Stainless. Package XT, LTD
-
1540232561434 Elastic Stop Nut M6. Package XT, LTDElastic Stop Nut M6. Package XT, LTD
-
1810705002895 LH Deflector. Package DPSLH Deflector. Package DPS
-
1810705005113 LH Deflector. Package XT, LTDLH Deflector. Package XT, LTD
-
1820705002894 RH DeflectorRH Deflector
-
1830293720053 GrommetGrommet
-
1840517303439 KnobKnob
-
1850250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
1860708000759 Rubber StopperRubber Stopper
