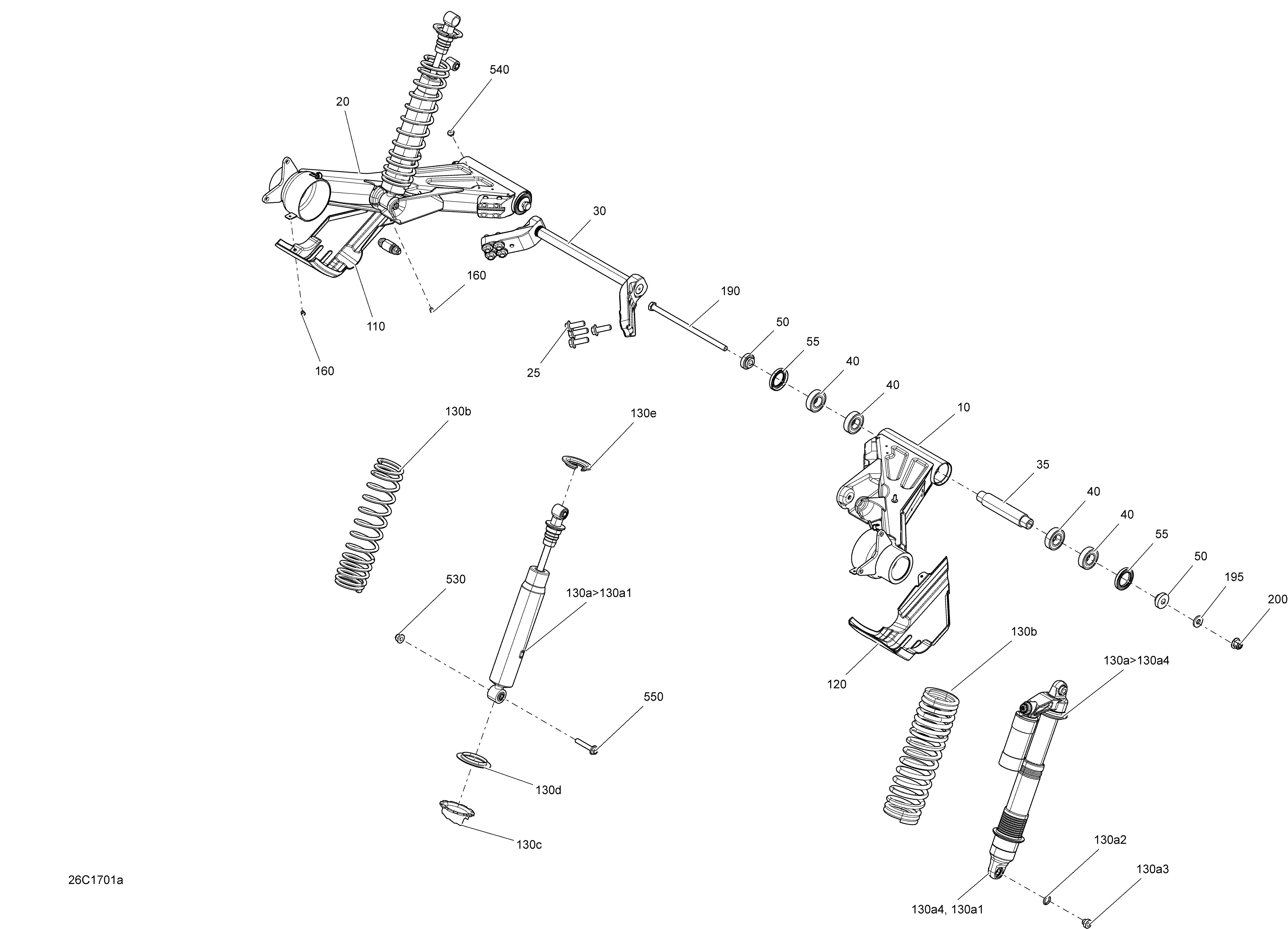

08- Rear Suspension - Except Package LTD для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
10706001513 RH Swing ArmRH Swing Arm
-
20706001514 LH Swing ArmLH Swing Arm
-
25207523544 Hex. Flanged Screw M12 X 35, Scotch GripHex. Flanged Screw M12 X 35, Scotch Grip
-
30706001500 Sway Bar Ass'y. Commander Except XTPSway Bar Ass'y. Commander Except XTP
-
30706001503 Sway Bar Ass'y. Commander XTPSway Bar Ass'y. Commander XTP
-
30706001718 Bar Sway. Commander MaxBar Sway. Commander Max
-
35706001529 BushingBushing
-
40293350055 Ball BearingBall Bearing
-
50706001350 SpacerSpacer
-
55293200094 SealSeal
-
110706000630 LH Joint ProtectorLH Joint Protector
-
120706000814 RH Joint ProtectorRH Joint Protector
-
130a706001509 Rear Shock. Commander MaxRear Shock. Commander Max
-
130a>130a1706000615 Rear Shock. Commander Except XTP. Includes 130a to 130a1Rear Shock. Commander Except XTP. Includes 130a to 130a1
-
130a>130a4706002608 Rear Shock. Commander XTP. Includes 130a to 130a4Rear Shock. Commander XTP. Includes 130a to 130a4
-
130a1715900122 Bushing. Except XTPBushing. Except XTP
-
130a1715900251 Spherical Bearing. XTPSpherical Bearing. XTP
-
130a2715900209 O-Ring Bushing. XTPO-Ring Bushing. XTP
-
130a3715900252 Retaining Ring. XTPRetaining Ring. XTP
-
130a4715900210 Interior Bushing. XTPInterior Bushing. XTP
-
130b706002467 Black Rear Spring. Commander HunterBlack Rear Spring. Commander Hunter
-
130b706002526 Black Rear Spring. Commander Max XT CamoBlack Rear Spring. Commander Max XT Camo
-
130b706002467 Black Rear Spring. Commander XT CamoBlack Rear Spring. Commander XT Camo
-
130b706001317 Black Rear Spring. XTPBlack Rear Spring. XTP
-
130b706002466 Red Rear Spring. Commander DPSRed Rear Spring. Commander DPS
-
130b706002497 Red Rear Spring. Commander Max DPSRed Rear Spring. Commander Max DPS
-
130b706002497 Red Rear Spring. Commander Max XT AluminumRed Rear Spring. Commander Max XT Aluminum
-
130b706002466 Red Rear Spring. Commander STDRed Rear Spring. Commander STD
-
130b706002466 Red Rear Spring. Commander XT AluminumRed Rear Spring. Commander XT Aluminum
-
130b706002465 Yellow Rear Spring. Commander XT YellowYellow Rear Spring. Commander XT Yellow
-
130c706000910 Adjustable Ring. Except XTPAdjustable Ring. Except XTP
-
130d706000911 Protector Ring. Except XTPProtector Ring. Except XTP
-
130e706000567 Spring Stopper. Except XTPSpring Stopper. Except XTP
-
160293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
190250000515 Hex. Cap Screw M12 X 241Hex. Cap Screw M12 X 241
-
195250200120 Flat Washer M12Flat Washer M12
-
200233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
530233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
540390406500 Pop Rivet 3/16''. CommanderPop Rivet 3/16''. Commander
-
550207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
