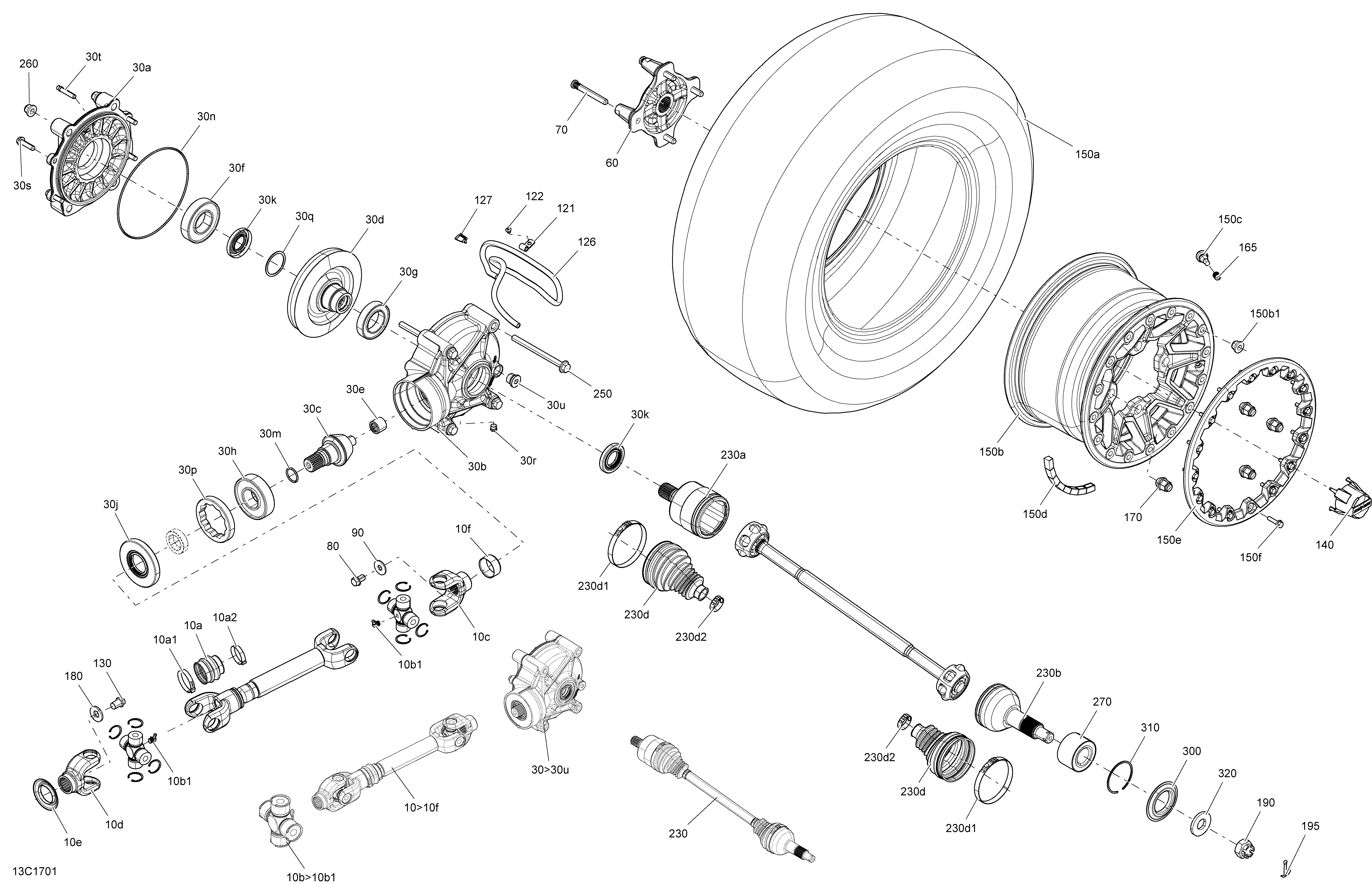

08- Drive System, Rear - All Models для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
10>10f703500924 Drive Shaft Ass'y. Includes 10 to 10fDrive Shaft Ass'y. Includes 10 to 10f
-
10a715900118 Rubber Boot. Includes 10a to 10a2Rubber Boot. Includes 10a to 10a2
-
10a1293650138 Oetiker Gear ClampOetiker Gear Clamp
-
10a2509000045 Oetiker Gear ClampOetiker Gear Clamp
-
10b>10b1703500846 Universal Joint Ass'y. Includes 10b to 10b1Universal Joint Ass'y. Includes 10b to 10b1
-
10b1715900295 Grease FittingGrease Fitting
-
10c715900271 JointJoint
-
10d715900436 JointJoint
-
10e705501123 ProtectorProtector
-
10f705400036 Wear RingWear Ring
-
30>30u705502331 Rear Differential Ass'Y. Includes 30 to 30uRear Differential Ass'Y. Includes 30 to 30u
-
30a705502332 Rear CoverRear Cover
-
30b705502333 Pinion CoverPinion Cover
-
30c705501871 10 Tooth Gear10 Tooth Gear
-
30d705502109 36 Tooth Gear36 Tooth Gear
-
30e705501874 Needle BearingNeedle Bearing
-
30f705501875 Ball BearingBall Bearing
-
30g705501876 Ball BearingBall Bearing
-
30h705501877 Ball BearingBall Bearing
-
30j705501878 Oil SealOil Seal
-
30k705502110 Oil SealOil Seal
-
30m705501880 Oil SealOil Seal
-
30n705501881 Oil SealOil Seal
-
30p705501882 NutNut
-
30q705501883 Shim KitShim Kit
-
30r705501885 Drain PlugDrain Plug
-
30s705501886 ScrewScrew
-
30t705501887 Vent ValveVent Valve
-
30u705501889 Fill Level PlugFill Level Plug
-
60705502470 Wheel Hub. Commander MAXWheel Hub. Commander MAX
-
60705502486 Wheel Hub. LH Except Package XTPWheel Hub. LH Except Package XTP
-
60705502470 Wheel Hub. RH Except Package XTPWheel Hub. RH Except Package XTP
-
60705502223 Wheel Hub. Package XTPWheel Hub. Package XTP
-
70705401964 Wheel Stud. Commander MAXWheel Stud. Commander MAX
-
70705401964 Wheel Stud. Except Package XTPWheel Stud. Except Package XTP
-
70250300055 Wheel Stud M10 X 1.25. Except Package XTPWheel Stud M10 X 1.25. Except Package XTP
-
70250300060 Wheel Stud. Package XTPWheel Stud. Package XTP
-
80250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
90250200014 Flat Washer M10Flat Washer M10
-
121414108400 Open ClampOpen Clamp
-
122390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
126293830177 HoseHose
-
127414227300 ClipClip
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
140705401541 Wheel Cap. Package DPSWheel Cap. Package DPS
-
140705401541 Wheel Cap. Package HunterWheel Cap. Package Hunter
-
140705401541 Wheel Cap. Package LTDWheel Cap. Package LTD
-
140705400921 Wheel Cap. Package STDWheel Cap. Package STD
-
140705401541 Wheel Cap. Package XTWheel Cap. Package XT
-
140705400928 Wheel Cap. Package XTPWheel Cap. Package XTP
-
150a705501295 Rear Tire. Package DPS EuropeRear Tire. Package DPS Europe
-
150a705502019 Rear Tire. Package DPS Except EuropeRear Tire. Package DPS Except Europe
-
150a705502019 Rear Tire. Package HunterRear Tire. Package Hunter
-
150a705502019 Rear Tire. Package LTDRear Tire. Package LTD
-
150a705501817 Rear Tire Maxxis 27X11X12. Package STDRear Tire Maxxis 27X11X12. Package STD
-
150a705501295 Rear Tire. Package XT EuropeRear Tire. Package XT Europe
-
150a705502019 Rear Tire. Package XT except EuropeRear Tire. Package XT except Europe
-
150a705501817 Rear Tire Maxxis 27X11X12. Package XTPRear Tire Maxxis 27X11X12. Package XTP
-
150b705502103 Black Rear Rim. Package XT Except Model YellowBlack Rear Rim. Package XT Except Model Yellow
-
150b705502103 Black Rear Rim. Package HunterBlack Rear Rim. Package Hunter
-
150b705502101 Silver Rear Rim. Package DPSSilver Rear Rim. Package DPS
-
150b705502101 Silver Rear Rim. Package XT Model YellowSilver Rear Rim. Package XT Model Yellow
-
150b705502102 Black Rear Rim. Package LTDBlack Rear Rim. Package LTD
-
150b705501623 Black Rear Rim. Package STDBlack Rear Rim. Package STD
-
150b705502244 Black Rear Rim. Package XTP. Includes 150b to 150b1Black Rear Rim. Package XTP. Includes 150b to 150b1
-
150b1293450317 Insert. Package XTPInsert. Package XTP
-
150c705400193 Rim Valve With CapRim Valve With Cap
-
150d705501385 1/2 OZ Weight1/2 OZ Weight
-
150e705401866 Black Disc Plate. Package XTPBlack Disc Plate. Package XTP
-
150f250000787 Hex. Flanged Screw M6 X 25. Package XTPHex. Flanged Screw M6 X 25. Package XTP
-
165293000110 Valve CapValve Cap
-
170250100042 Steel Wheel Nut. Package STDSteel Wheel Nut. Package STD
-
170250100184 Black Wheel Nut M10 X 1.25. Package HunterBlack Wheel Nut M10 X 1.25. Package Hunter
-
170250100184 Black Wheel Nut M10 X 1.25. Package XT Except Model YellowBlack Wheel Nut M10 X 1.25. Package XT Except Model Yellow
-
170250100184 Black Wheel Nut M10 X 1.25. Package XTPBlack Wheel Nut M10 X 1.25. Package XTP
-
170250100185 Chrome Wheel Nut M10 X 1.25. Package LTDChrome Wheel Nut M10 X 1.25. Package LTD
-
170250100185 Chrome Wheel Nut M10 X 1.25. Package XT Model YellowChrome Wheel Nut M10 X 1.25. Package XT Model Yellow
-
170250100185 Chrome Wheel Nut M10 X 1.25. Package DPSChrome Wheel Nut M10 X 1.25. Package DPS
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190250100161 Castle Nut M20Castle Nut M20
-
195250400071 Cotter PinCotter Pin
-
230705502411 CV Joint. Includes 230 to 230d2CV Joint. Includes 230 to 230d2
-
230a715900433 Plunging JointPlunging Joint
-
230b715900429 CV JointCV Joint
-
230c705501781 CirclipCirclip
-
230d705501864 Boot KitBoot Kit
-
230d1715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
230d2715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
250230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
260233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
300705501121 Wear Sleeve. Except Package XTPWear Sleeve. Except Package XTP
-
310293370019 CirclipCirclip
-
320250200147 Washer M20Washer M20
