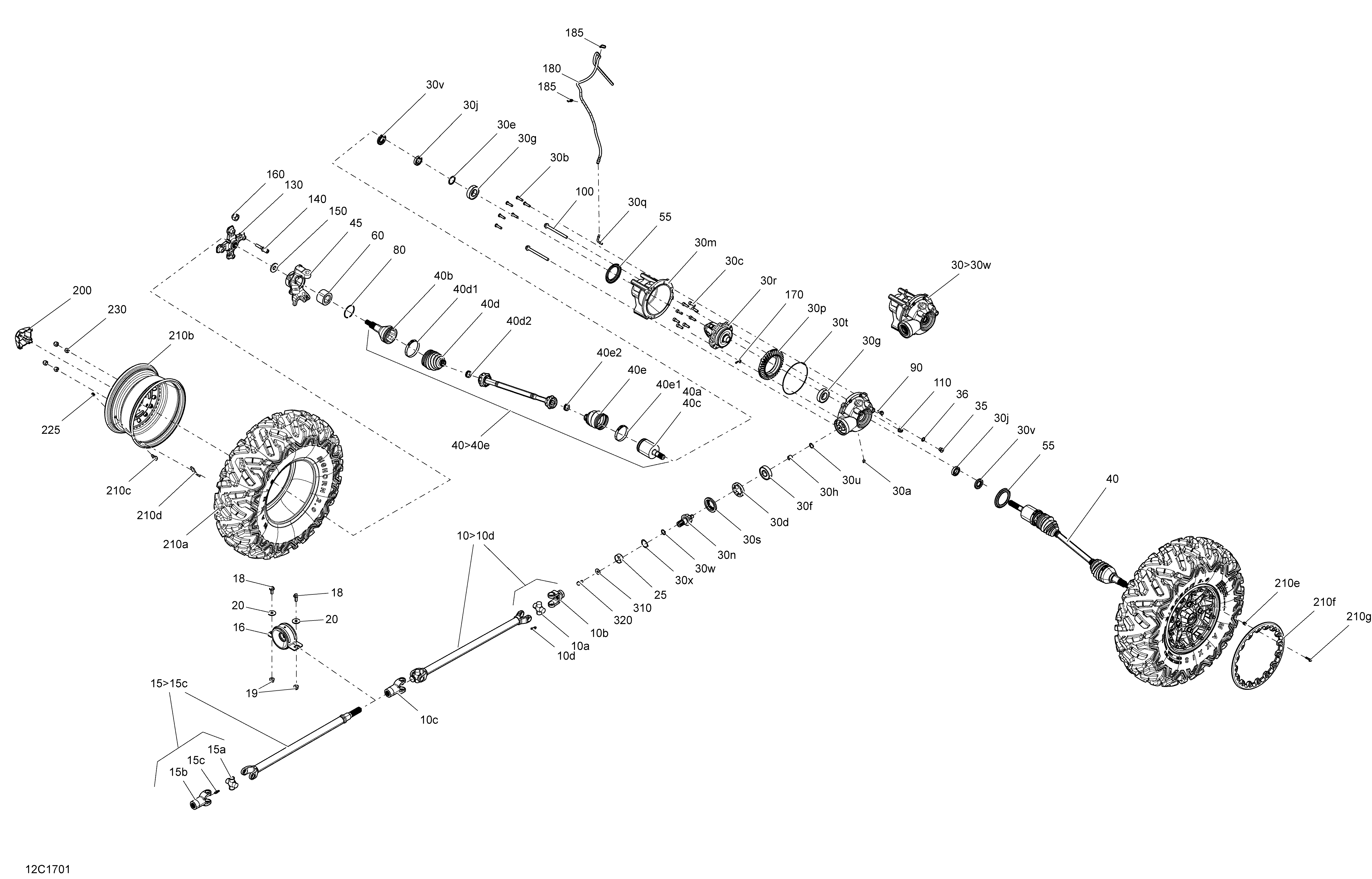

07- Drive System, Front - All Models для BRP Commander - Commander Max - 2017
-
№АртикулНазвание
-
10>10d705401939 Drive Shaft Ass'y. Include 10 to 10dDrive Shaft Ass'y. Include 10 to 10d
-
10a715900435 U-Joint Cross KitU-Joint Cross Kit
-
10b715900116 Fixed Yoke JointFixed Yoke Joint
-
10c715900231 Yoke Joint. Cover 715900483Yoke Joint. Cover 715900483
-
10d703500815 Grease FittingGrease Fitting
-
15>15c705401940 Drive Shaft Ass'y. Commander MAX. Includes 15 to 15cDrive Shaft Ass'y. Commander MAX. Includes 15 to 15c
-
15a715900435 U-Joint Cross Kit. Commander MAXU-Joint Cross Kit. Commander MAX
-
15b715900231 Yoke Joint. Commander MAX, Cover 715900483Yoke Joint. Commander MAX, Cover 715900483
-
15c703500815 Grease Fitting. Commander MAXGrease Fitting. Commander MAX
-
16705401646 Ball Bearing. Commander MAXBall Bearing. Commander MAX
-
18207602544 Hex. Flanged Screw M10 X 25. Commander MAXHex. Flanged Screw M10 X 25. Commander MAX
-
19233201414 Hex. Flanged Elastic Nut M10. Commander MAXHex. Flanged Elastic Nut M10. Commander MAX
-
20503032900 Washer. Commander MAXWasher. Commander MAX
-
25705400036 Wear RingWear Ring
-
30703500907 Front Differential. Package STD. Includes 30 to 30wFront Differential. Package STD. Includes 30 to 30w
-
30>30w703500908 Front Differential. Except Package STD. Includes 30 to 30wFront Differential. Except Package STD. Includes 30 to 30w
-
30a705501885 Drain PlugDrain Plug
-
30b705401601 ScrewScrew
-
30c705401602 ScrewScrew
-
30d705401603 NutNut
-
30e705401604 ShimShim
-
30f705401605 Ball BearingBall Bearing
-
30g705401606 Ball BearingBall Bearing
-
30h705401607 Needle BearingNeedle Bearing
-
30j705401608 Ball BearingBall Bearing
-
30m705401610 Front CoverFront Cover
-
30n705401791 Pinion 10 TeethPinion 10 Teeth
-
30p705401612 Gear 36 TeethGear 36 Teeth
-
30q705401613 Vent ValveVent Valve
-
30r705401614 Differential. Package STDDifferential. Package STD
-
30r705401506 Differential. Except Package STDDifferential. Except Package STD
-
30s705401615 Oil SealOil Seal
-
30t705401616 SealSeal
-
30u705401617 O'RingO'Ring
-
30v705401618 GasketGasket
-
30w705401769 ShimShim
-
30x705401770 ShimShim
-
35705500504 Fill Level PlugFill Level Plug
-
36705500506 Copper WasherCopper Washer
-
40705401872 RH Half Shaft. Includes 40 to 40eRH Half Shaft. Includes 40 to 40e
-
40>40e705401871 LH Half Shaft. Includes 40 to 40eLH Half Shaft. Includes 40 to 40e
-
40a715900430 LH Plunging JointLH Plunging Joint
-
40a715900431 RH Plunging JointRH Plunging Joint
-
40b715900427 CV JointCV Joint
-
40c705401349 Circlip JointCirclip Joint
-
40d705401345 Boot Kit, Wheel Side. Includes 40d to 40d2Boot Kit, Wheel Side. Includes 40d to 40d2
-
40d1715900282 Oetiker Clamp, LargeOetiker Clamp, Large
-
40d2715900283 Oetiker Clamp, SmallOetiker Clamp, Small
-
40e705401346 Boot Kit, Differential SideBoot Kit, Differential Side
-
40e1715900284 Oetiker Clamp, Large. Includes 40e to 40e2Oetiker Clamp, Large. Includes 40e to 40e2
-
40e2715900261 Oetiker Clamp, SmallOetiker Clamp, Small
-
45705401548 LH Front KnuckleLH Front Knuckle
-
45705401549 RH Front KnuckleRH Front Knuckle
-
55705400780 Wear SleeveWear Sleeve
-
60293350118 Cone BearingCone Bearing
-
80293370019 CirclipCirclip
-
90207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
100230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
110233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
130705401314 Wheel Hub. Commander Except Package XTPWheel Hub. Commander Except Package XTP
-
130705501900 Wheel Hub. Commander Package XTPWheel Hub. Commander Package XTP
-
130705501900 Wheel Hub. Commander MaxWheel Hub. Commander Max
-
140250300060 Wheel Stud. Commander MaxWheel Stud. Commander Max
-
140250300060 Wheel Stud. Commander Package XTPWheel Stud. Commander Package XTP
-
140705401964 Wheel Stud. Commander Except Package XTPWheel Stud. Commander Except Package XTP
-
150250200049 Spring WasherSpring Washer
-
160250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
170250400071 Cotter PinCotter Pin
-
180415080200 Hose, PolyurethaneHose, Polyurethane
-
185293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
200705400921 Wheel Cap. Package STDWheel Cap. Package STD
-
200705400928 Wheel Cap. Package XTPWheel Cap. Package XTP
-
200705401541 Wheel Cap. Package HunterWheel Cap. Package Hunter
-
200705401541 Wheel Cap. Package XTWheel Cap. Package XT
-
200705401541 Wheel Cap. Package LTDWheel Cap. Package LTD
-
200705401541 Wheel Cap. Package DPSWheel Cap. Package DPS
-
210a705400961 Front Tire. EuropeFront Tire. Europe
-
210a705401985 Front Tire. Package XT Except EuropeFront Tire. Package XT Except Europe
-
210a705401985 Front Tire. Package HunterFront Tire. Package Hunter
-
210a705401985 Front Tire. Package DPS Except EuropeFront Tire. Package DPS Except Europe
-
210a705401985 Front Tire. Package LTDFront Tire. Package LTD
-
210a705401385 Front Tire Maxxis 27X9X12. Package XTPFront Tire Maxxis 27X9X12. Package XTP
-
210a705401385 Front Tire Maxxis 27X9X12. Package STDFront Tire Maxxis 27X9X12. Package STD
-
210b705401217 Black Front Rim. Package STDBlack Front Rim. Package STD
-
210b705401559 Silver Front Rim. Package DPSSilver Front Rim. Package DPS
-
210b705401559 Silver Front Rim. Package XT YellowSilver Front Rim. Package XT Yellow
-
210b705401564 Front Rim. Package XT Except Model YellowFront Rim. Package XT Except Model Yellow
-
210b705401564 Front Rim. Package HunterFront Rim. Package Hunter
-
210b705401678 Black Front Rim. Package XTPBlack Front Rim. Package XTP
-
210b705401563 Black Front Rim. Package LTDBlack Front Rim. Package LTD
-
210c705400193 Rim Valve With CapRim Valve With Cap
-
210d705501385 1/2 OZ Weight1/2 OZ Weight
-
210e293450317 Insert. Package XTPInsert. Package XTP
-
210f705401866 Black Disc Plate. Package XTPBlack Disc Plate. Package XTP
-
210g250000787 Hex. Flanged Screw M6 X 25. Package XTPHex. Flanged Screw M6 X 25. Package XTP
-
225293000110 Valve CapValve Cap
-
230250100184 Black Wheel Nut M10 X 1.25. Package HunterBlack Wheel Nut M10 X 1.25. Package Hunter
-
230250100184 Black Wheel Nut M10 X 1.25. Package XT Except Model YellowBlack Wheel Nut M10 X 1.25. Package XT Except Model Yellow
-
230250100184 Black Wheel Nut M10 X 1.25. Package XTPBlack Wheel Nut M10 X 1.25. Package XTP
-
230250100185 Chrome Wheel Nut M10 X 1.25. Package DPSChrome Wheel Nut M10 X 1.25. Package DPS
-
230250100185 Chrome Wheel Nut M10 X 1.25. Package LTDChrome Wheel Nut M10 X 1.25. Package LTD
-
230250100185 Chrome Wheel Nut M10 X 1.25. Package XT YellowChrome Wheel Nut M10 X 1.25. Package XT Yellow
-
230250100042 Steel Wheel Nut. Package STDSteel Wheel Nut. Package STD
-
310250200014 Flat Washer M10Flat Washer M10
-
320250000847 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
