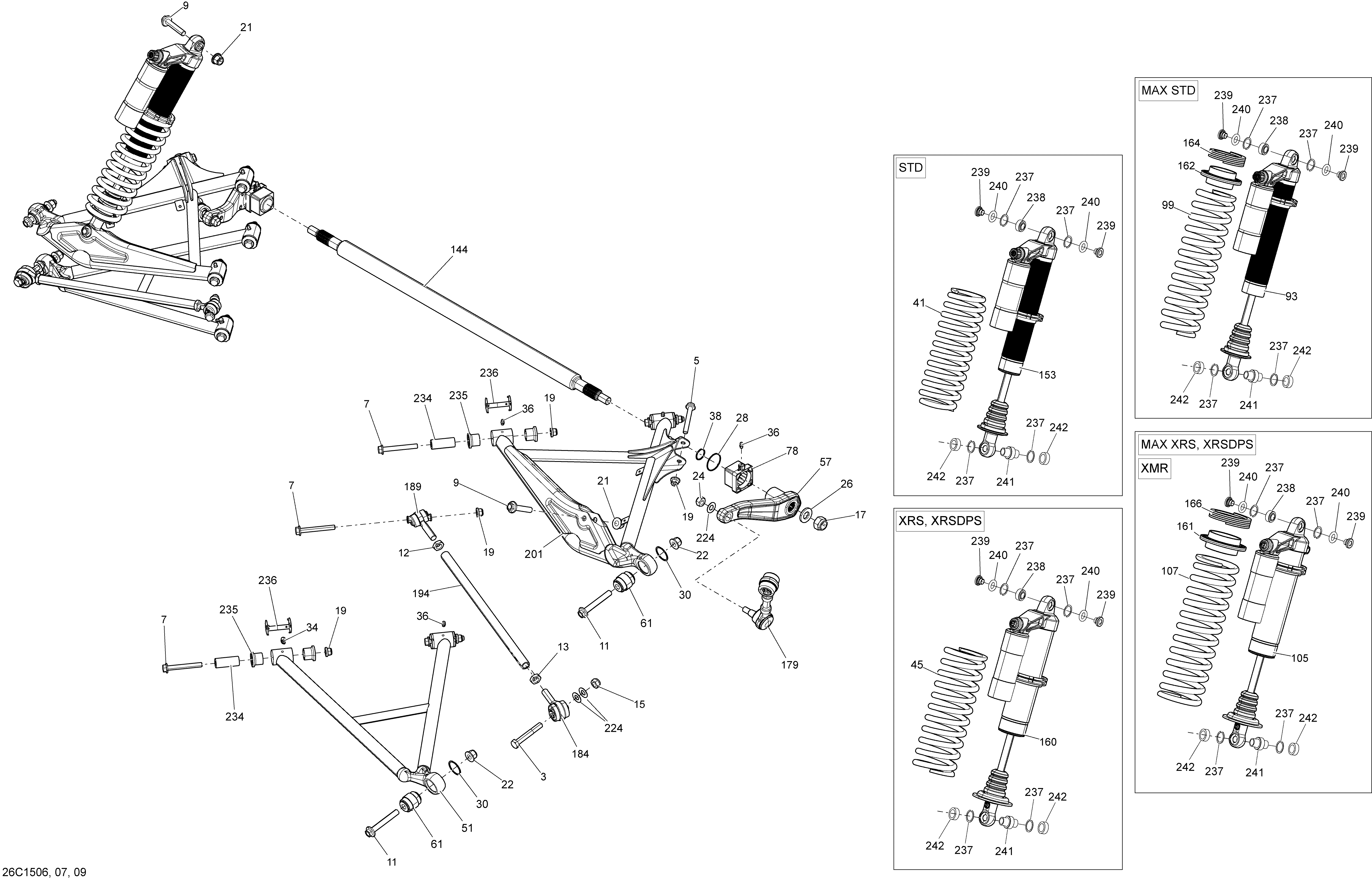

08- Rear Suspension _26C1506 для BRP Maverick 1000_STD_XRS_XRS-DPS - 2015
-
№АртикулНазвание
-
3207028046 Hex. Screw M12 X 80Hex. Screw M12 X 80
-
5207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
7207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
9207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
11207628546 Hex. Flanged Screw M12 X 85Hex. Flanged Screw M12 X 85
-
12232175411 LH Hex. Lock Nut M14LH Hex. Lock Nut M14
-
13232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
15232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
17232591414 Elastic Stop Nut M18Elastic Stop Nut M18
-
19233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
21233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
22233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
24250000047 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
26250200045 WasherWasher
-
28293300100 O-RingO-Ring
-
30293370093 Retaining RingRetaining Ring
-
34293550056 Grease Fitting 90°Grease Fitting 90°
-
36408200700 Grease FittingGrease Fitting
-
38706000251 Retaining RingRetaining Ring
-
41706001241 Yellow Rear Spring. Package-STD YellowYellow Rear Spring. Package-STD Yellow
-
41706001588 White Rear Spring. Package-STD Bright WhiteWhite Rear Spring. Package-STD Bright White
-
45706001921 Yellow Rear Spring. Package-XRS BlackYellow Rear Spring. Package-XRS Black
-
45706001921 Yellow Rear Spring. Package-XRSDPS BlackYellow Rear Spring. Package-XRSDPS Black
-
45706002075 Red Rear Spring. Package-XRSDPS Bright WhiteRed Rear Spring. Package-XRSDPS Bright White
-
45706002075 Red Rear Spring. Package-XRS Bright WhiteRed Rear Spring. Package-XRS Bright White
-
45706002075 Red Rear Spring. Package-XRSDPS RedRed Rear Spring. Package-XRSDPS Red
-
51706001354 LH Rear Painted Lower Arm. Package-STD, XRS, XRSDPSLH Rear Painted Lower Arm. Package-STD, XRS, XRSDPS
-
51706001355 RH Rear Painted Lower Arm. Package-STD, XRS, XRSDPSRH Rear Painted Lower Arm. Package-STD, XRS, XRSDPS
-
57706001371 Sway Bar LeverSway Bar Lever
-
61706001373 Radial JointRadial Joint
-
78706001402 Sway Bar HousingSway Bar Housing
-
144706001356 Sway BarSway Bar
-
153706002058 Rear Shock. Package-STD YellowRear Shock. Package-STD Yellow
-
153706002058 Rear Shock. Package-STD Bright WhiteRear Shock. Package-STD Bright White
-
160706001645 Rear Shocks. Package-XRSDPS Can-Am RedRear Shocks. Package-XRSDPS Can-Am Red
-
160706001645 Rear Shocks. Package-XRSDPS Bright WhiteRear Shocks. Package-XRSDPS Bright White
-
160706001645 Rear Shocks. Package-XRSDPS Deep BlackRear Shocks. Package-XRSDPS Deep Black
-
160706001645 Rear Shocks. Package-XRS Deep BlackRear Shocks. Package-XRS Deep Black
-
160706002057 Rear Shock. Package-XRS BlackRear Shock. Package-XRS Black
-
160706002057 Rear Shock. Package-XRSDPS BlackRear Shock. Package-XRSDPS Black
-
160706002057 Rear Shock. Package-XRSDPS Bright WhiteRear Shock. Package-XRSDPS Bright White
-
160706002057 Rear Shock. Package-XRS Bright WhiteRear Shock. Package-XRS Bright White
-
160706002057 Rear Shock. Package-XRSDPS RedRear Shock. Package-XRSDPS Red
-
179706001741 LH Double Ball JointLH Double Ball Joint
-
179706001742 RH Double Ball JointRH Double Ball Joint
-
184706001437 Ball Joint. Package-STD, XRS, XRSDPSBall Joint. Package-STD, XRS, XRSDPS
-
189706001798 Ball Joint. Package-STD, XRS, XRSDPSBall Joint. Package-STD, XRS, XRSDPS
-
194706002081 Adjustment Rod. Package-STD, XRS, XRSDPSAdjustment Rod. Package-STD, XRS, XRSDPS
-
201706002091 Black LH Rear Upper Arm. Package-STDBlack LH Rear Upper Arm. Package-STD
-
201706002092 Black RH Rear Upper Arm. Package-STDBlack RH Rear Upper Arm. Package-STD
-
201706002093 Yellow LH Rear Upper Arm. Package-XRS Deep BlackYellow LH Rear Upper Arm. Package-XRS Deep Black
-
201706002094 Yellow RH Rear Upper Arm. Package-XRS Deep BlackYellow RH Rear Upper Arm. Package-XRS Deep Black
-
201706002095 Red LH Rear Upper Arm. Package-XRS Bright WhiteRed LH Rear Upper Arm. Package-XRS Bright White
-
201706002096 Red RH Rear Upper Arm. Package-XRS Bright WhiteRed RH Rear Upper Arm. Package-XRS Bright White
-
201706002095 Red LH Rear Upper Arm. Package-XRSDPS Can-Am RedRed LH Rear Upper Arm. Package-XRSDPS Can-Am Red
-
201706002096 Red RH Rear Upper Arm. Package-XRSDPS Can-Am RedRed RH Rear Upper Arm. Package-XRSDPS Can-Am Red
-
201706002093 Yellow LH Rear Upper Arm. Package-XRSDPS Deep BlackYellow LH Rear Upper Arm. Package-XRSDPS Deep Black
-
201706002094 Yellow RH Rear Upper Arm. Package-XRSDPS Deep BlackYellow RH Rear Upper Arm. Package-XRSDPS Deep Black
-
201706002095 Red LH Rear Upper Arm. Package-XRSDPS Bright WhiteRed LH Rear Upper Arm. Package-XRSDPS Bright White
-
201706002096 Red RH Rear Upper Arm. Package-XRSDPS Bright WhiteRed RH Rear Upper Arm. Package-XRSDPS Bright White
-
224250200086 Flat WasherFlat Washer
-
224250200086 Flat WasherFlat Washer
-
234706201590 SleeveSleeve
-
235706201659 CushionCushion
-
236706201660 Wear PlateWear Plate
-
237715900252 Retaining RingRetaining Ring
-
238715900266 Spherical BearingSpherical Bearing
-
239715900267 Interior BushingInterior Bushing
-
240715900268 O-Ring BushingO-Ring Bushing
-
241715900330 Spherical BearingSpherical Bearing
-
242715900331 ProtectorProtector
