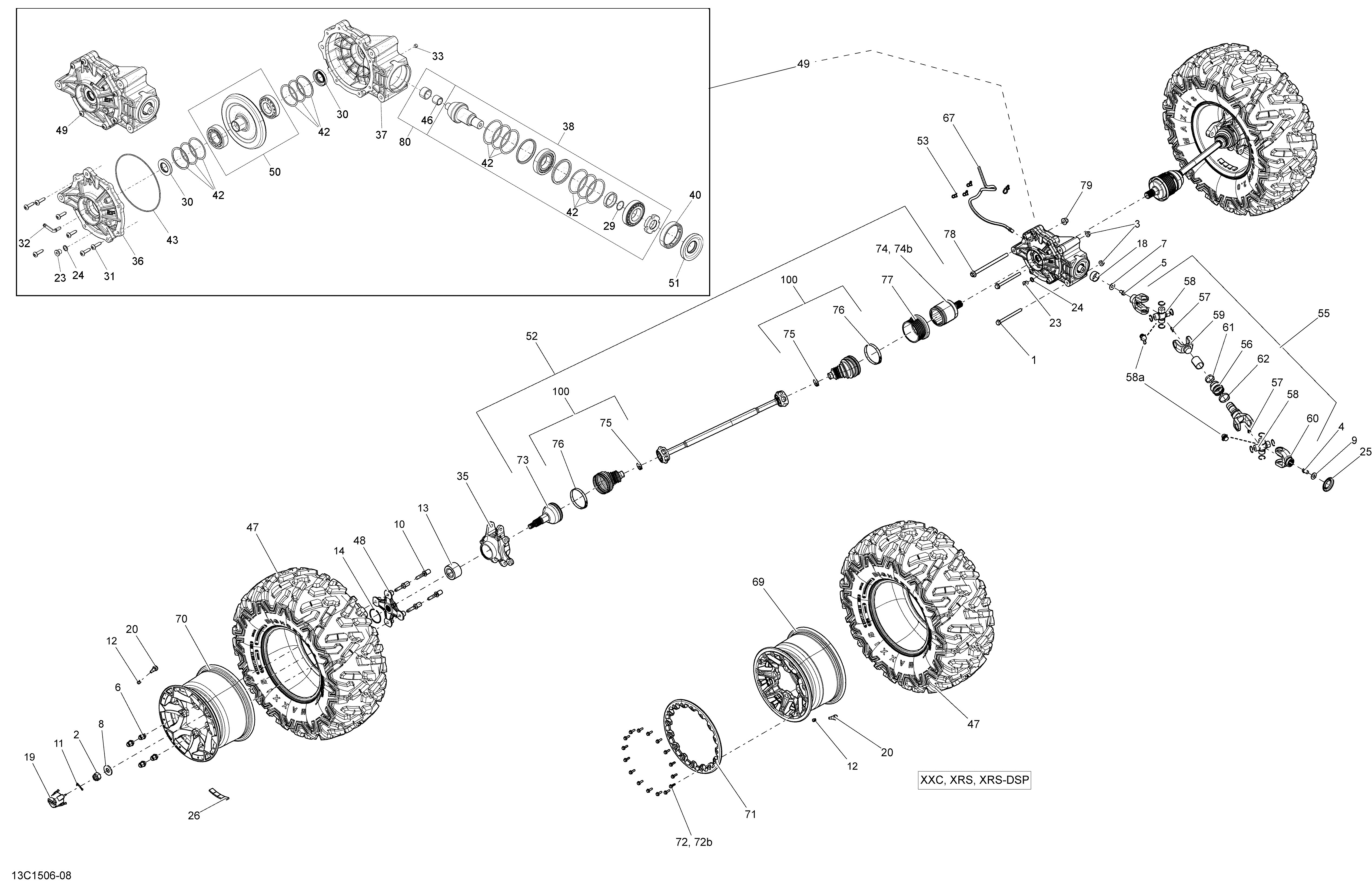

08- Drive System, Rear _13C1506 для BRP Maverick 1000_STD_XRS_XRS-DPS - 2015
-
№АртикулНазвание
-
1230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
2250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
3233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
4250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
5250000615 Hex Flanged Screwv M10 X 16Hex Flanged Screwv M10 X 16
-
6250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
7250200014 Flat Washer M10Flat Washer M10
-
8250200049 Spring WasherSpring Washer
-
9250200102 Flat Washer M12Flat Washer M12
-
10250300051 Wheel StudWheel Stud
-
11250400036 Cotter PinCotter Pin
-
12293000110 Valve CapValve Cap
-
13293350040 Cone BearingCone Bearing
-
14293370019 CirclipCirclip
-
18705400036 Wear RingWear Ring
-
19705400928 Wheel CapWheel Cap
-
20705400193 Rim Valve With CapRim Valve With Cap
-
23705500504 Fill Level PlugFill Level Plug
-
24705500506 Copper WasherCopper Washer
-
25705501123 ProtectorProtector
-
26705501385 1/2 OZ Weight1/2 OZ Weight
-
29705501554 O-RingO-Ring
-
30705501556 Oil SealOil Seal
-
31705502063 ScrewScrew
-
32705501584 Breather TubeBreather Tube
-
33705501724 Plug DrainPlug Drain
-
35705501730 LH Rear KnuckleLH Rear Knuckle
-
35705501731 RH Rear KnuckleRH Rear Knuckle
-
36705502171 Rear CoverRear Cover
-
37705502172 Pinion CoverPinion Cover
-
38703500867 Pinion KitPinion Kit
-
40705501740 NutNut
-
42703500839 Differential Shim KitDifferential Shim Kit
-
43705501749 Oil SealOil Seal
-
46703500840 Needle BearingNeedle Bearing
-
47705501817 Rear Tire Maxxis 27X11X12Rear Tire Maxxis 27X11X12
-
47705501818 Rear Tire. EuropeRear Tire. Europe
-
48705501900 Wheel HubWheel Hub
-
49705501958 Rear Differential Ass'yRear Differential Ass'y
-
50703500868 Gear KitGear Kit
-
51705501933 Oil SealOil Seal
-
52705501948 Half ShaftHalf Shaft
-
53710003168 Tie-RapTie-Rap
-
55703500856 Drive Shaft Ass'y KitDrive Shaft Ass'y Kit
-
56715900118 Rubber BootRubber Boot
-
57715900184 Grease FittingGrease Fitting
-
58715900278 Universal JointUniversal Joint
-
58a715900295 Grease FittingGrease Fitting
-
59715900271 JointJoint
-
60715900272 JointJoint
-
61509000045 Oetiker Gear ClampOetiker Gear Clamp
-
62293650138 Oetiker Gear ClampOetiker Gear Clamp
-
67415080200 Hose, PolyurethaneHose, Polyurethane
-
69705501522 Rear RimRear Rim
-
70705501853 Black Rim. Package STD Model-YellowBlack Rim. Package STD Model-Yellow
-
70705502199 Black Rear Rim. Package XRS/DPS Model-Black-YellowBlack Rear Rim. Package XRS/DPS Model-Black-Yellow
-
70705502199 Black Rear Rim. Package XRS Model-Black-YellowBlack Rear Rim. Package XRS Model-Black-Yellow
-
70705502199 Black Rear Rim. Package XRS/DPS Model-RedBlack Rear Rim. Package XRS/DPS Model-Red
-
70705502199 Black Rear Rim. Package XRS/DPS Model-White-Red Black CageBlack Rear Rim. Package XRS/DPS Model-White-Red Black Cage
-
71705401329 Yellow Reinforcement Disc. Package XRS/DPS Model-Black-YellowYellow Reinforcement Disc. Package XRS/DPS Model-Black-Yellow
-
71705401445 Red Reinforcement Disc. Package XRS/DPS Model-RedRed Reinforcement Disc. Package XRS/DPS Model-Red
-
71705401445 Red Reinforcement Disc. Package XRS/DPS Model-White-Red Black CageRed Reinforcement Disc. Package XRS/DPS Model-White-Red Black Cage
-
72250000435 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
72b293450317 InsertInsert
-
73705501863 CV JointCV Joint
-
74705501865 Plunging JointPlunging Joint
-
74b705501781 CirclipCirclip
-
75715900242 Oetiker Clamp, 27.3 mmOetiker Clamp, 27.3 mm
-
76715900241 Oetiker Clamp, 82.1 mmOetiker Clamp, 82.1 mm
-
77705501841 Heat DissipatorHeat Dissipator
-
78230629087 Hex. Flanged Screw M12 X 190Hex. Flanged Screw M12 X 190
-
79233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
80703500869 Bearing KitBearing Kit
-
100705501864 Boot KitBoot Kit
