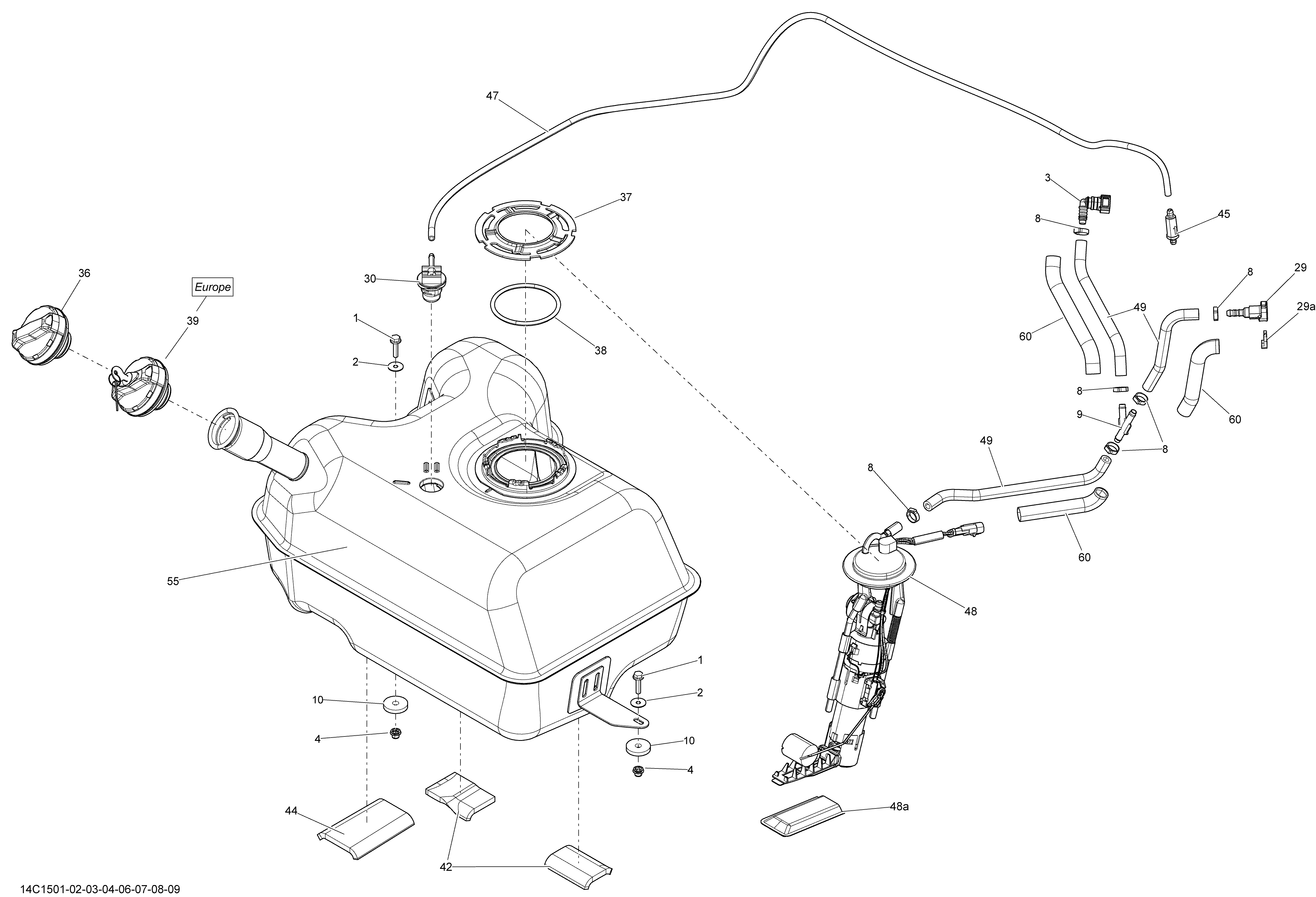

02- Fuel System _14C1506 для BRP Maverick 1000_STD_XRS_XRS-DPS - 2015
-
№АртикулНазвание
-
1207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
2224060201 Flat WasherFlat Washer
-
3275500700 Quick Attach 90°Quick Attach 90°
-
4293450274 InsertInsert
-
8293650047 Crimp ClampCrimp Clamp
-
9293710136 Y-Fitting, 5/16''Y-Fitting, 5/16''
-
10293830037 Rubber WasherRubber Washer
-
29709000125 Female Quick Fitting Ass'yFemale Quick Fitting Ass'y
-
30709000127 Rollover ValveRollover Valve
-
36709000529 Fuel CapFuel Cap
-
37709000274 RingRing
-
38709000275 O-RingO-Ring
-
39715001124 Fuel Cap Kit. Model-EuropeFuel Cap Kit. Model-Europe
-
42709000288 Neoprene PadNeoprene Pad
-
44709000289 Neoprene PadNeoprene Pad
-
45709000330 FilterFilter
-
47415080200 Hose, PolyurethaneHose, Polyurethane
-
48709000362 Fuel PumpFuel Pump
-
49709000516 Fuel LineFuel Line
-
55709000467 Fuel TankFuel Tank
-
60415080000 Tubing 16 mmTubing 16 mm
-
29a513033135 Locking ClipLocking Clip
-
48a709000389 Fuel Pre-Filter KitFuel Pre-Filter Kit
