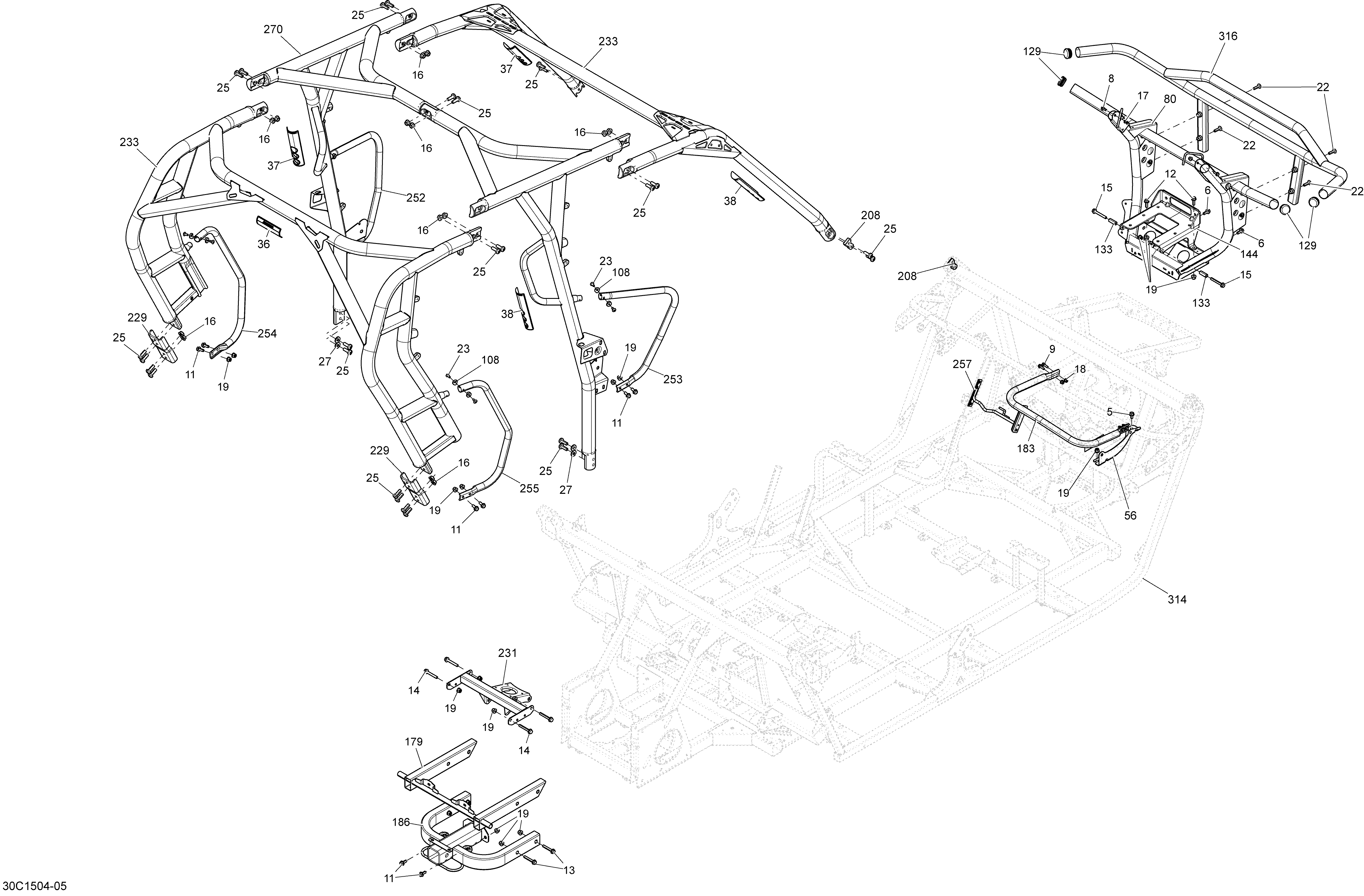

09- Frame _30C1504 для BRP Commander MAX 1000_DPS_XT - 2015

  • №
    Артикул
    Название
  • 5
    207581644 Hex. Flanged Screw M8 X 16, Scotch Grip
    Hex. Flanged Screw M8 X 16, Scotch Grip
  • 6
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 8
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 9
    207662046 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 11
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 12
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 13
    207685044 Hex. Flanged Screw M8 X 50
    Hex. Flanged Screw M8 X 50
  • 14
    207685544 Hex. Flanged Screw M8 X 55
    Hex. Flanged Screw M8 X 55
  • 15
    207686044 Hex. Flanged Screw M8 x 60
    Hex. Flanged Screw M8 x 60
  • 16
    233101464 Hex. Elastic Flange Nut , M10 X 1.5
    Hex. Elastic Flange Nut , M10 X 1.5
  • 17
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 18
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 19
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 22
    250000197 Torx Truss Screw M8 X 30. Package-XT
    Torx Truss Screw M8 X 30. Package-XT
  • 23
    250000439 Torx Truss Screw M6 X 14
    Torx Truss Screw M6 X 14
  • 25
    250000624 Screw Torx M10 X 30
    Screw Torx M10 X 30
  • 27
    250200154 Washer
    Washer
  • 36
    704903492 Warning Label
    Warning Label
  • 37
    704903679 Warning Label
    Warning Label
  • 38
    704903680 Warning Label
    Warning Label
  • 56
    705201721 Front Differential Support
    Front Differential Support
  • 80
    705202995 Black Front Bumper
    Black Front Bumper
  • 108
    705202223 Offset Washer
    Offset Washer
  • 129
    705202455 Cap
    Cap
  • 133
    705202499 Bushing. Package-XT
    Bushing. Package-XT
  • 144
    715000704 Winch Plate. Package-XT
    Winch Plate. Package-XT
  • 179
    705203325 Box Holder
    Box Holder
  • 183
    705203332 Black Handle
    Black Handle
  • 186
    715001251 Trailer Hitch Ass'y
    Trailer Hitch Ass'y
  • 208
    705203415 Binding Block
    Binding Block
  • 229
    705203514 Rear Hand Mounting
    Rear Hand Mounting
  • 231
    705203538 Differential Holder
    Differential Holder
  • 233
    705203579 Black Cage Kit, Front And Rear Section
    Black Cage Kit, Front And Rear Section
  • 252
    705203643 Black LH Front Side Protector Tube
    Black LH Front Side Protector Tube
  • 253
    705203642 Black RH Front Side Protector Tube
    Black RH Front Side Protector Tube
  • 254
    705203649 Black LH Rear Side Protector Tube
    Black LH Rear Side Protector Tube
  • 255
    705203652 Black RH Rear Side Protector Tube
    Black RH Rear Side Protector Tube
  • 257
    705203717 Reinforcement Panel
    Reinforcement Panel
  • 270
    705203800 Black Center Safety Cage Kit
    Black Center Safety Cage Kit
  • 314
    705204015 Black MAX Frame Ass'y
    Black MAX Frame Ass'y
  • 316
    715000958 Black Front Bumper. Package-XT
    Black Front Bumper. Package-XT
